Front Bumper Impact Bar Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

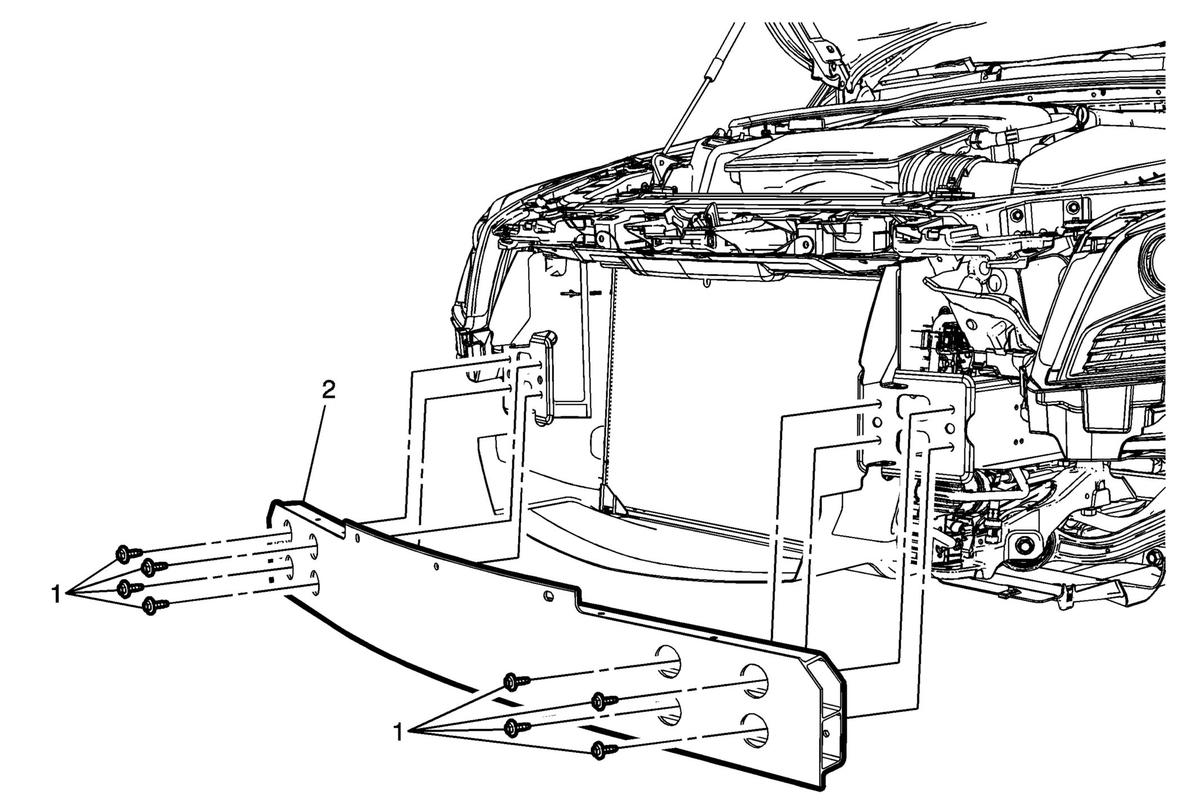

Fig 1: Front Bumper Impact Bar

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement Front Bumper Fascia Replacement (V) . Remove the front bumper fascia center support from the impact bar. Refer to Front Bumper Fascia Center Support Replacement . Remove the forward radar range module. Refer to Forward Range Radar Module Replacement Remove the 4 radiator air baffle push-in retainers. Remove the ambient air temperature sensor. Refer to Ambient Air Temperature Sensor Replacement .
1	Front Bumper Impact Bar Bolt (Qty: 8) CAUTION: Refer to Fastener Caution . Tighten 32 N.m (24 lb ft)
2	Front Bumper Impact Bar Procedure Unclip and reposition the electrical harnesses.

Callout

Component Name

Preliminary Procedures

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement Front Bumper Fascia Replacement (V) .
Remove the front bumper fascia center support from the impact bar. Refer to Front Bumper Fascia Center Support Replacement .
Remove the forward radar range module. Refer to Forward Range Radar Module Replacement
Remove the 4 radiator air baffle push-in retainers.
Remove the ambient air temperature sensor. Refer to Ambient Air Temperature Sensor Replacement .

Front Bumper Impact Bar Bolt (Qty: 8)

CAUTION:

Refer to Fastener Caution .

Tighten
32 N.m (24 lb ft)

Front Bumper Impact Bar
Procedure
Unclip and reposition the electrical harnesses.
