Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

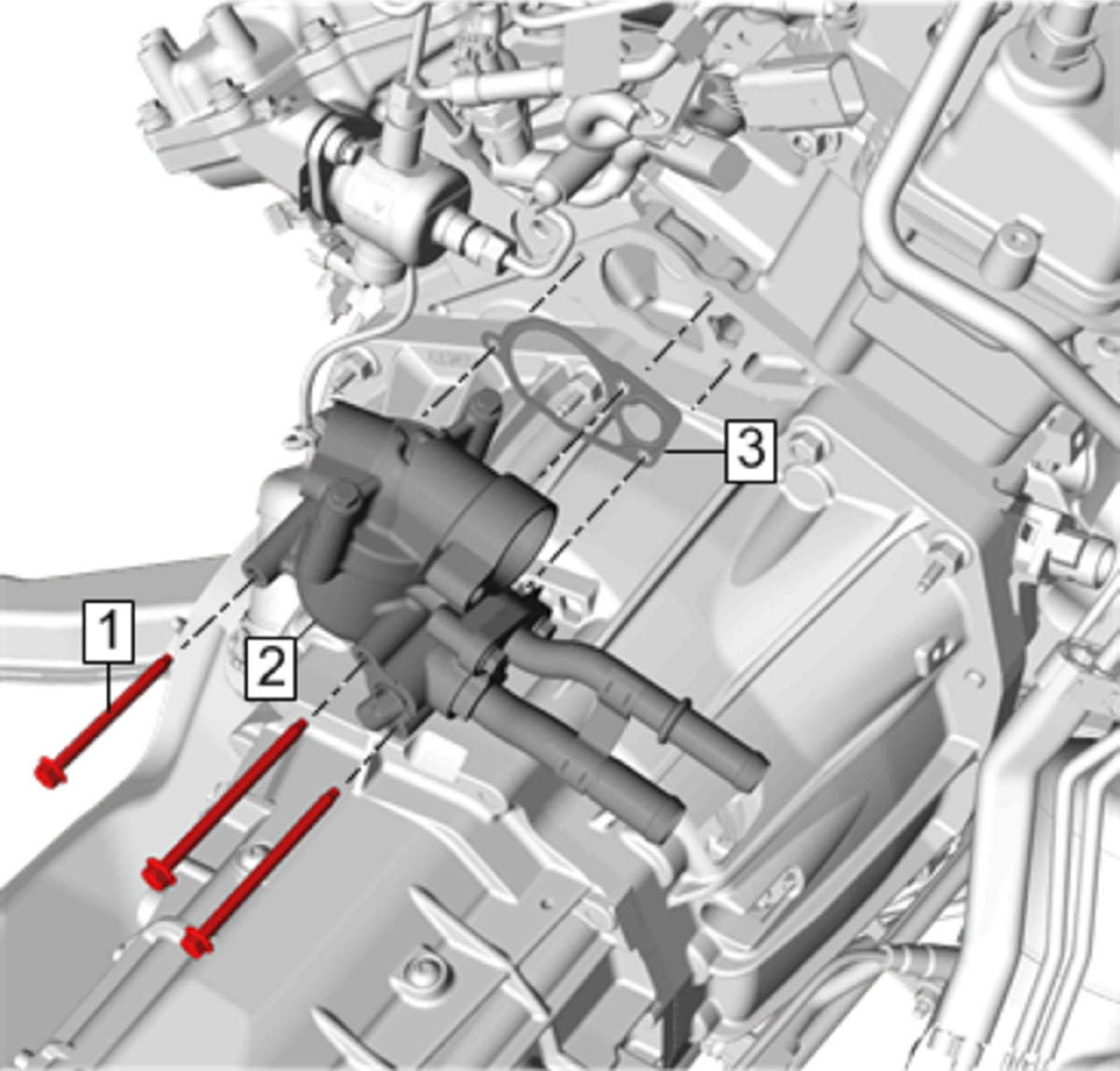

    Fig 1: Engine Coolant Thermostat Housing
    GM4277398Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Install a NEW engine coolant thermostat gasket.

  1. Install Engine Coolant Thermostat Housing Gasket (3)
  2. Install Engine Coolant Thermostat Housing (2)
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install Engine Coolant Thermostat Housing Bolt (1) and tighten 10 N.m (89 lb in)

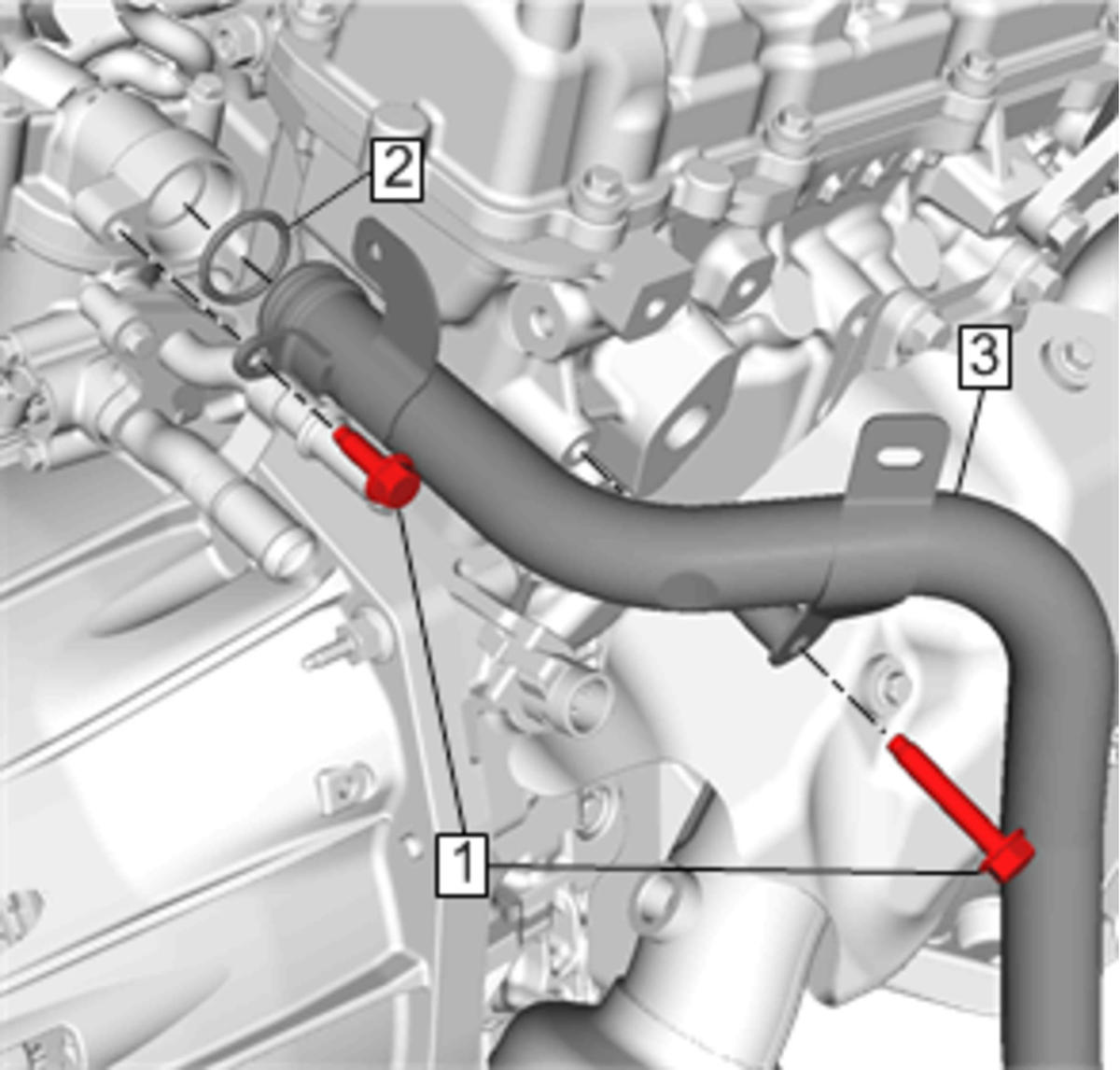

    4. Fig 2: Radiator Outlet Pipe And Bracket
    GM4045035Courtesy of GENERAL MOTORS COMPANY
  4. Install Radiator Outlet Pipe (3) - Radiator Outlet Pipe Replacement (LF4)
    5. Fig 3: Fuel Feed Pipe
    GM4020004Courtesy of GENERAL MOTORS COMPANY
  5. Connect Fuel Feed Pipe (1) @Engine - Fuel Feed Pipe Replacement (Fuel Tank To Engine LF4)Fuel Feed Pipe Replacement (LF4 at Engine)

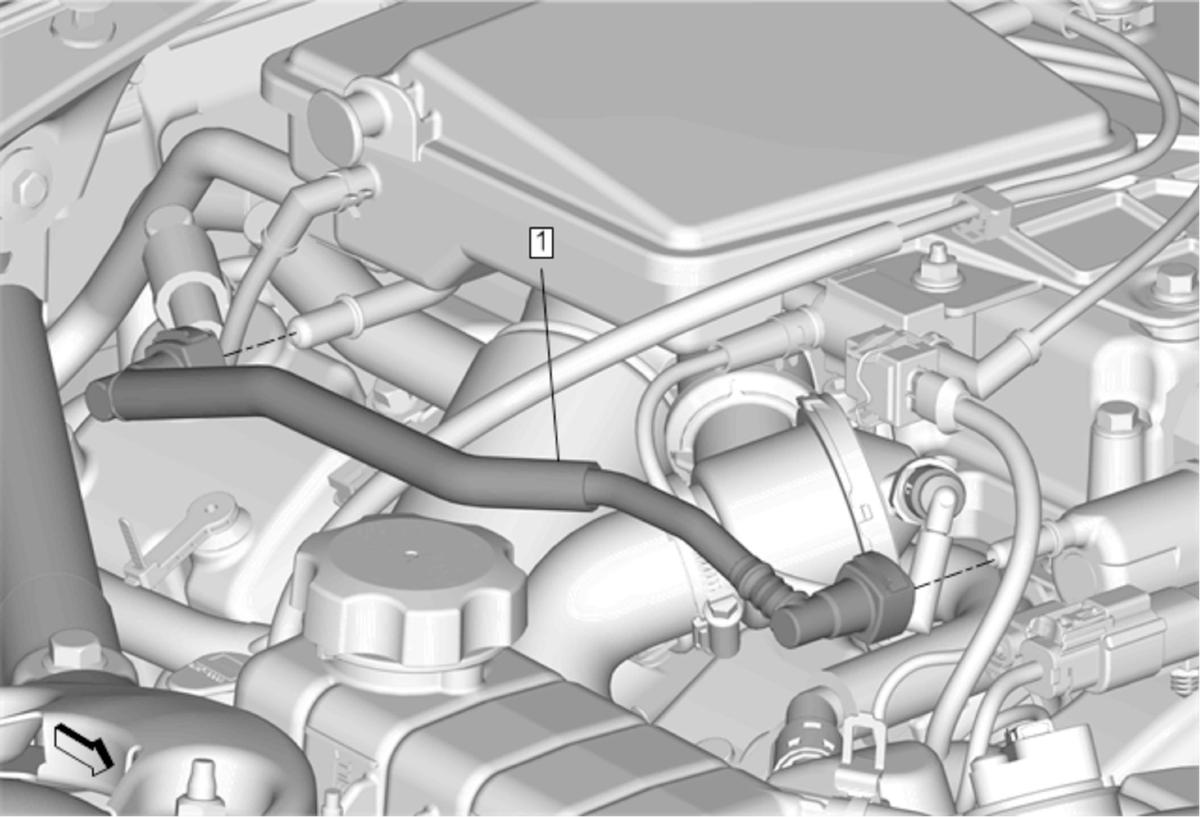

    6. Fig 4: Evaporative Emission Canister Purge Tube Replacement (LF4)
    GM4016889Courtesy of GENERAL MOTORS COMPANY
  6. Connect Evaporative Emission Canister Purge Tube (1) @Evaporative Emission Canister Purge Pipe - Evaporative Emission Canister Purge Tube Replacement (LF4)

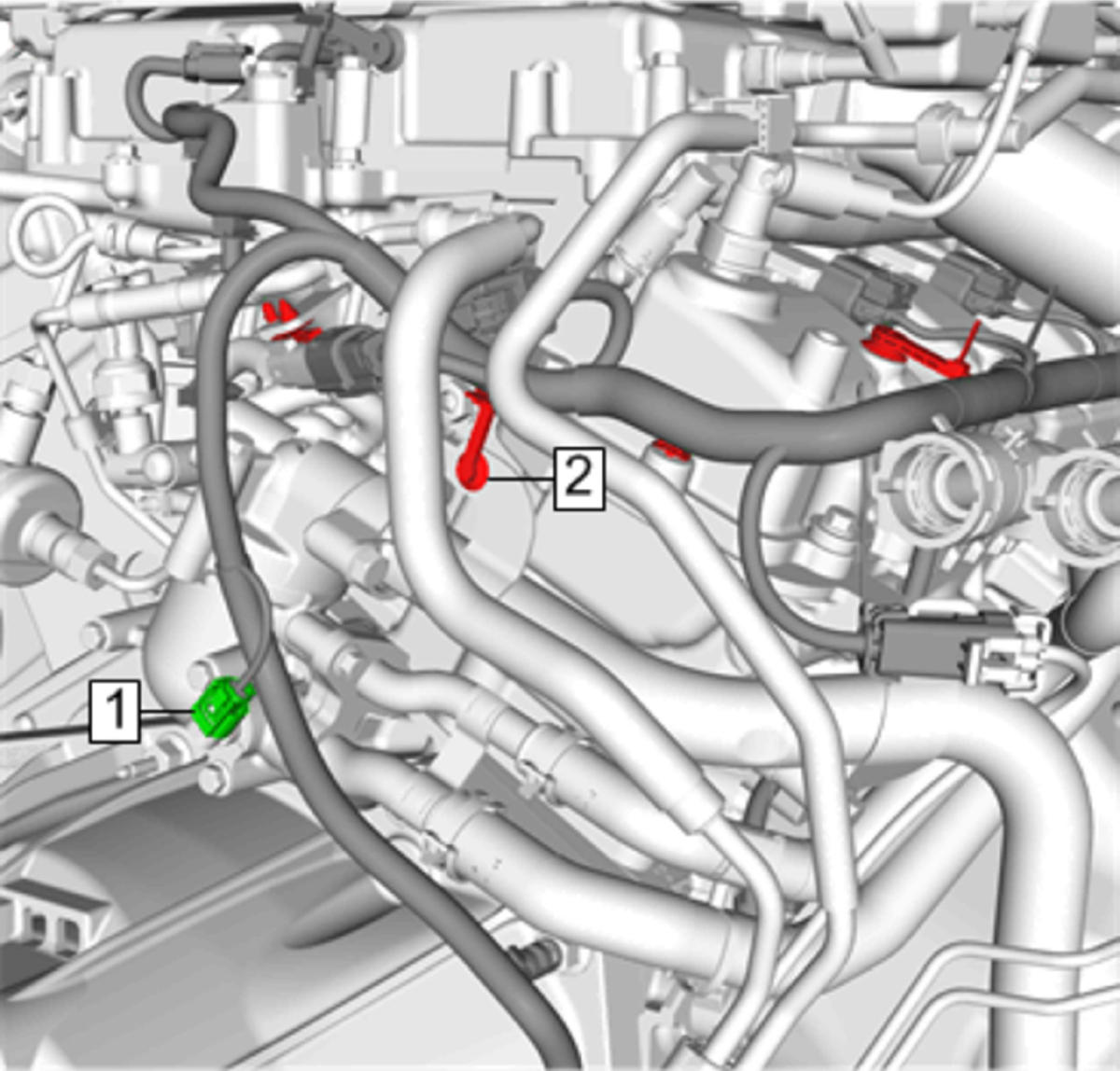

    7. Fig 5: Engine Coolant Temperature Sensor Electrical Connector
    GM4277316Courtesy of GENERAL MOTORS COMPANY
  7. Connect the engine electrical wiring harness (2) to the back of the engine.
  8. Connect Engine Coolant Temperature Sensor Electrical Connector (1)
    9. Fig 6: Heater Outlet Hose At Engine Coolant Thermostat Housing
    GM4276897Courtesy of GENERAL MOTORS COMPANY
  9. Connect Heater Outlet Hose (1) @Engine Coolant Thermostat Housing - Heater Outlet Hose Replacement (LF4)
    10. Fig 7: Heater Inlet Hose At Engine Coolant Thermostat Housing
    GM4276867Courtesy of GENERAL MOTORS COMPANY
  10. Connect Heater Inlet Hose (1) @Engine Coolant Thermostat Housing - Heater Inlet Hose Replacement (LF4)
    11. Fig 8: Hood Strut
    GM2807046Courtesy of GENERAL MOTORS COMPANY
  11. Install Hood Strut - Right Side (1) - Hood Strut Replacement (ATS-V)
    12. Fig 9: Fuel Pipe Shield
    GM4044075Courtesy of GENERAL MOTORS COMPANY
  12. Install Fuel Pipe Shield (1) - Fuel Pipe Shield Replacement (LF4)
    13. Fig 10: Intake Manifold Cover (LF4)
    GM4044965Courtesy of GENERAL MOTORS COMPANY
  13. Intake Manifold Cover (3) - Intake Manifold Cover Replacement (LF4)
  14. Fill the cooling system. Cooling System Draining and Filling (Static) Cooling System Draining and Filling (GE 47716)
  15. Start the engine and check for leaks.
