Engine Coolant Air Bleed Hose Replacement (LGX)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

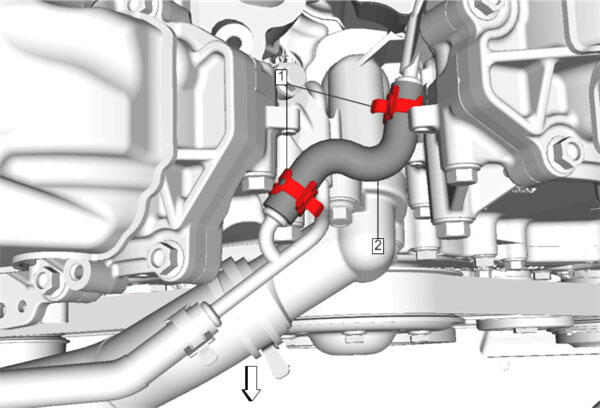

Fig 1: Engine Coolant Air Bleed Hose (LGX)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Cooling System Draining and Filling (Static) Cooling System Draining and Filling (GE 47716) Intake Manifold Replacement (LGX)
1	Engine Coolant Air Bleed Hose Clamp(Qty: 2) Procedure Hose Clamp Replacement Guidelines - Spring Type
2	Engine Coolant Air Bleed Hose

Callout

Component Name

Preliminary Procedures

Cooling System Draining and Filling (Static) Cooling System Draining and Filling (GE 47716)
Intake Manifold Replacement (LGX)

Engine Coolant Air Bleed Hose Clamp(Qty: 2)
Procedure
Hose Clamp Replacement Guidelines - Spring Type

Engine Coolant Air Bleed Hose
