Charge Air Cooler Coolant Pump Replacement (LF4)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

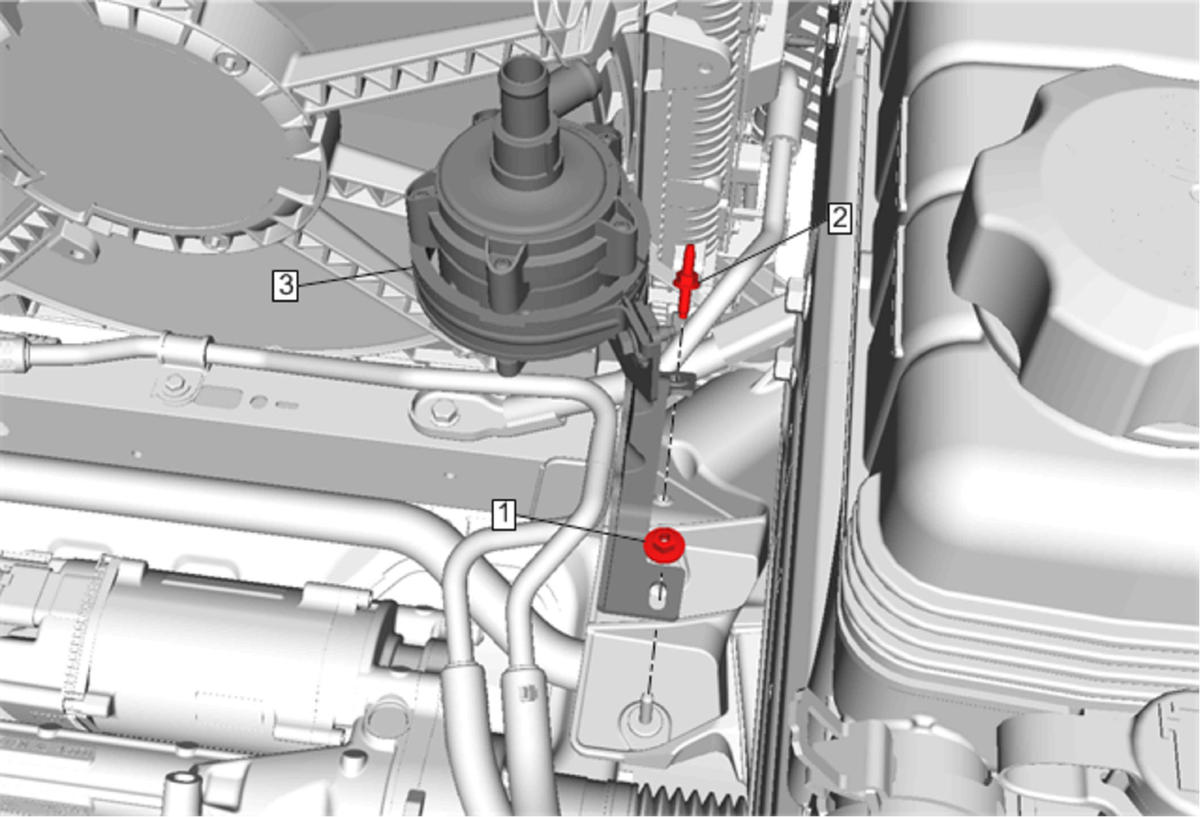

Fig 1: Charge Air Cooler Coolant Pump (LF4)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Charge Air Cooling System Draining and Filling (LF4) Disconnect Charge Air Cooler Coolant Hose Replacement - Pump to Manifold (LF4) Disconnect Charge Air Cooler Coolant Hose Replacement - Pump to Cooler (LF4)
1	Charge Air Cooler Coolant Pump Bracket Fastener CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Charge Air Cooler Coolant Pump Bracket Fastener Tighten 9 N.m (80 lb in)
3	Charge Air Cooler Coolant Pump Procedure Fill the charge air cooling system. Charge Air Cooling System Draining and Filling (LF4) Check the charge air cooling system for leaks.
