Evaporative Emission Canister Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

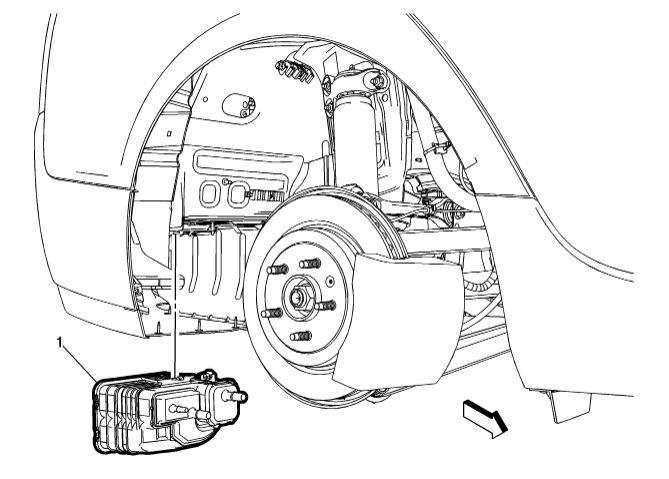

Fig 1: Evaporative Emission Canister
GM2817629Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the right rear wheelhouse panel liner. Refer to Rear Wheelhouse Liner Replacement (Non V-Series)Rear Wheelhouse Liner Replacement (V-Series) .
  2. Remove the evaporative emission canister purge pipe. Refer to Evaporative Emission Canister Purge Pipe Replacement .
  3. Remove the fuel tank vent hose. Refer to Fuel Tank Vent Hose Replacement .
  4. Remove the evaporative emission canister air inlet hose. Refer to Evaporative Emission Canister Air Inlet Hose Replacement .
  5. Disconnect electrical connector.
1 Evaporative Emission Canister
Procedure
Depress retaining tab to release EVAP canister.
