Evaporative Emission Canister Air Inlet Hose Replacement
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the right rear wheelhouse panel liner. Refer to Rear Wheelhouse Liner Replacement (Non V-Series)Rear Wheelhouse Liner Replacement (V-Series) . |
|

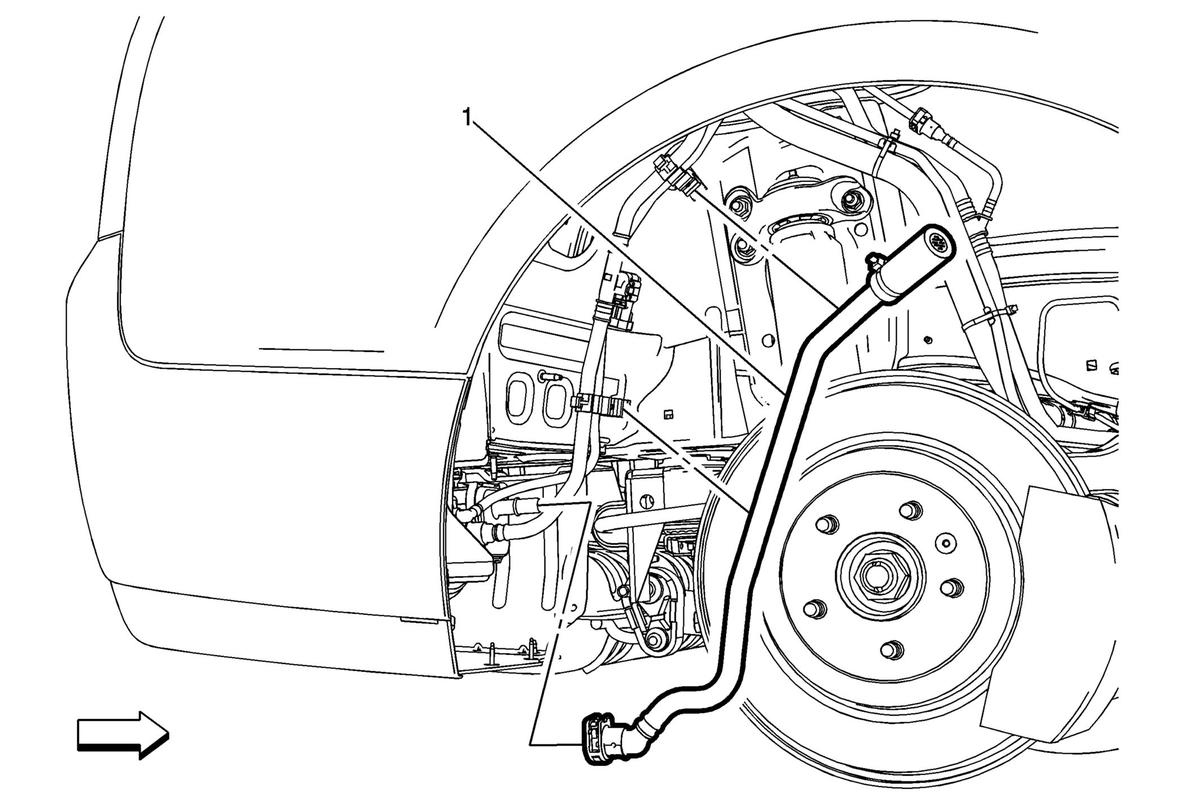

| 1 | Evaporative Emission Canister Air Inlet Hose Procedure Disconnect the EVAP emission canister air inlet hose from the EVAP canister and retainers. Refer to Plastic Collar Quick Connect Fitting Service . |
