Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

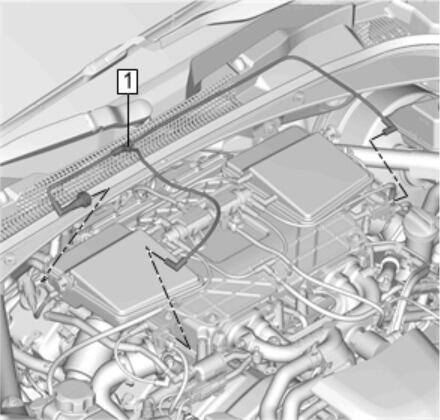

    Fig 1: Charge Air Bypass Valve Vacuum Tank Tube
    GM4052392Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Solenoid Valve Caution .

  1. Install Charge Air Bypass Valve Vacuum Tank Tube (1)

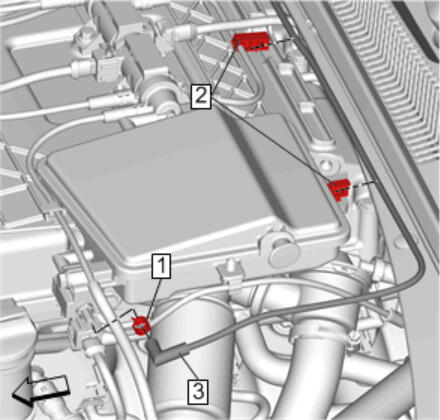

    2. Fig 2: Charge Air Bypass Valve Vacuum Tank Tube, Retainers And Clamp
    GM4052272Courtesy of GENERAL MOTORS COMPANY
  2. Loosely install Clamp (1) @ Charge Air Bypass Valve Vacuum Tank Tube (3)
  3. Install Charge Air Bypass Valve Vacuum Tank Tube (3)
  4. Tighten Clamp (1) @ Charge Air Bypass Valve Vacuum Tank Tube (3)
  5. Install Charge Air Bypass Valve Vacuum Tank Tube (3) @ Retainers (2) (Qty: 2)

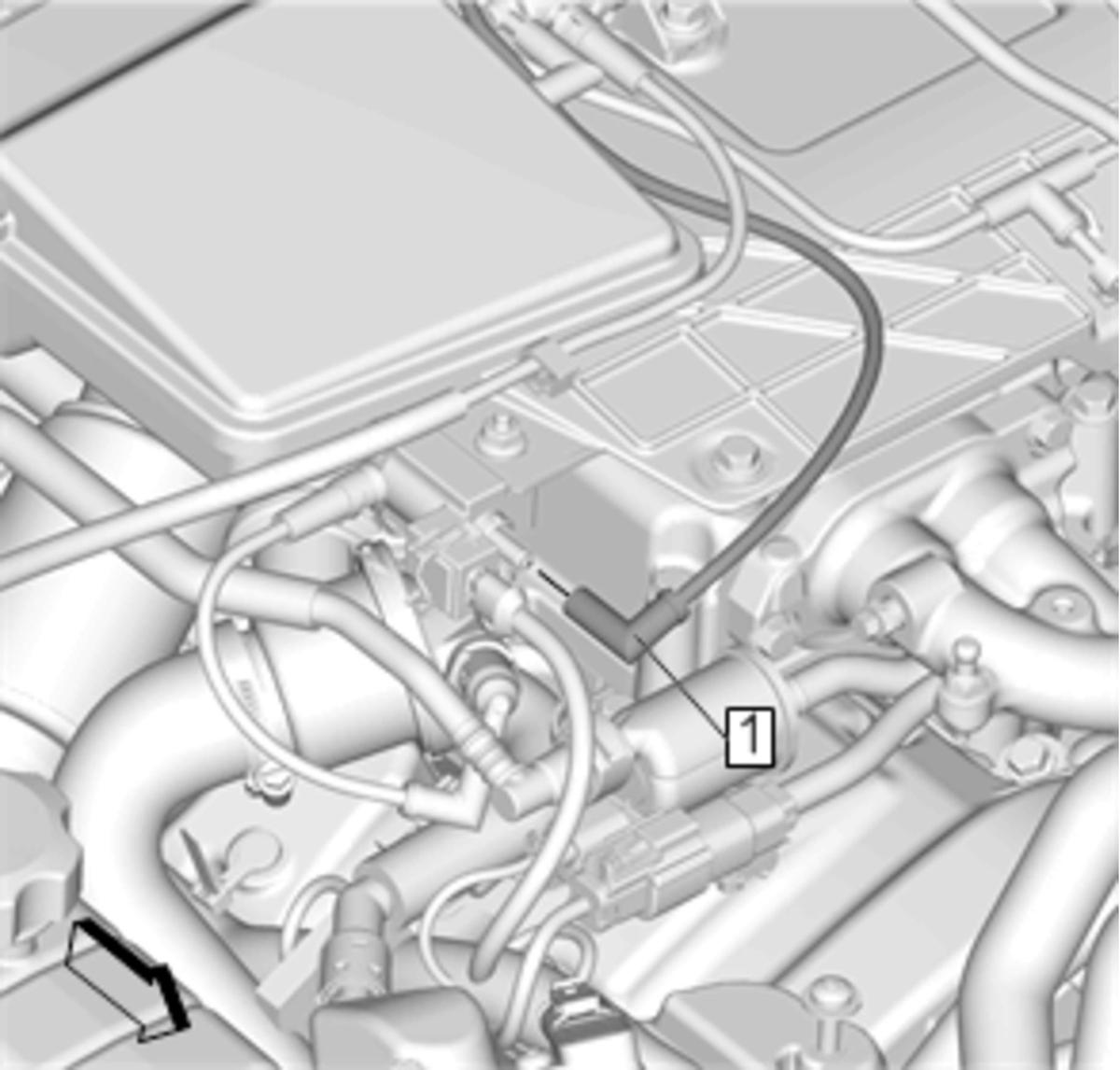

    6. Fig 3: Charge Air Bypass Valve Vacuum Tank Tube
    GM4052271Courtesy of GENERAL MOTORS COMPANY
  6. Connect Charge Air Bypass Valve Vacuum Tank Tube (1)

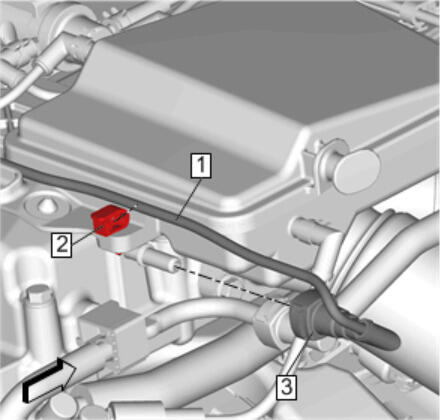

    7. Fig 4: Charge Air Bypass Valve Vacuum Tank Tube, Retainer And Fitting
    GM4052248Courtesy of GENERAL MOTORS COMPANY
  7. Connect Quick Connect Fitting (3)
  8. Connect Charge Air Bypass Valve Vacuum Tank Tube (1) @ Retainer (2)
  9. Install Intake Manifold Cover. Refer to Intake Manifold Cover Replacement (LF4)
