Charge Air Bypass Valve Tube Replacement (Bank 2)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

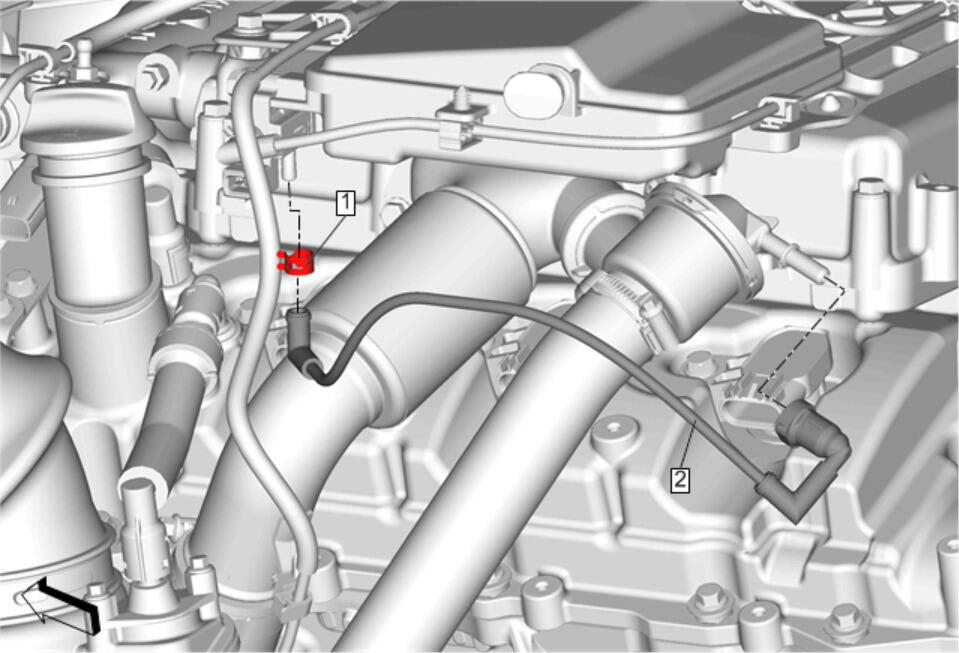

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove Intake Manifold Cover. Refer to Intake Manifold Cover Replacement (LF4) |
|
| 1 | Hose Clamp |
| 2 | Charge Air Bypass Valve Tube
CAUTION:
Refer to Solenoid Valve Caution . Procedure Disconnect Quick Connect Fitting. Refer to Plastic Collar Quick Connect Fitting Service |
