Charge Air Bypass Valve Hose Replacement (Bank 2)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

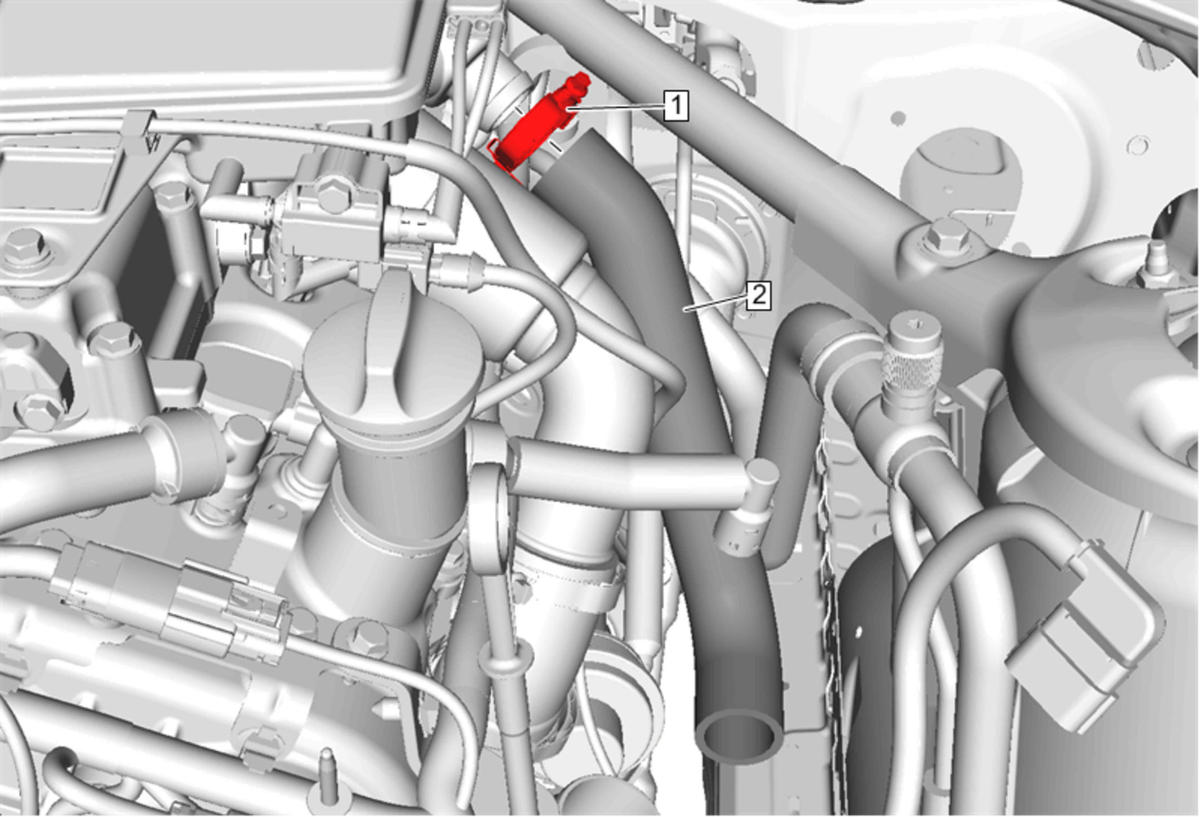

Fig 1: Charge Air Bypass Valve Hose (Bank 2)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove Intake Manifold Cover. Refer to Intake Manifold Cover Replacement (LF4) Remove Air Cleaner Outlet Duct. Refer to Air Cleaner Outlet Duct Replacement (LF4)
1	Charge Air Bypass Valve Hose Clamp CAUTION: Refer to Fastener Caution Tighten 3.5 N.m (31 lb in)
2	Charge Air Bypass Valve Hose

Callout

Component Name

Preliminary Procedures

Remove Intake Manifold Cover. Refer to Intake Manifold Cover Replacement (LF4)
Remove Air Cleaner Outlet Duct. Refer to Air Cleaner Outlet Duct Replacement (LF4)

Charge Air Bypass Valve Hose Clamp

CAUTION:

Refer to Fastener Caution

Tighten
3.5 N.m (31 lb in)

Charge Air Bypass Valve Hose
