Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (LF4) .
  2. Remove Air Cleaner Outlet Duct. Refer to Air Cleaner Outlet Duct Replacement (LF4)
  3. Disconnect and reposition the radiator inlet hose. Refer to Radiator Inlet Hose Replacement (LF4) .

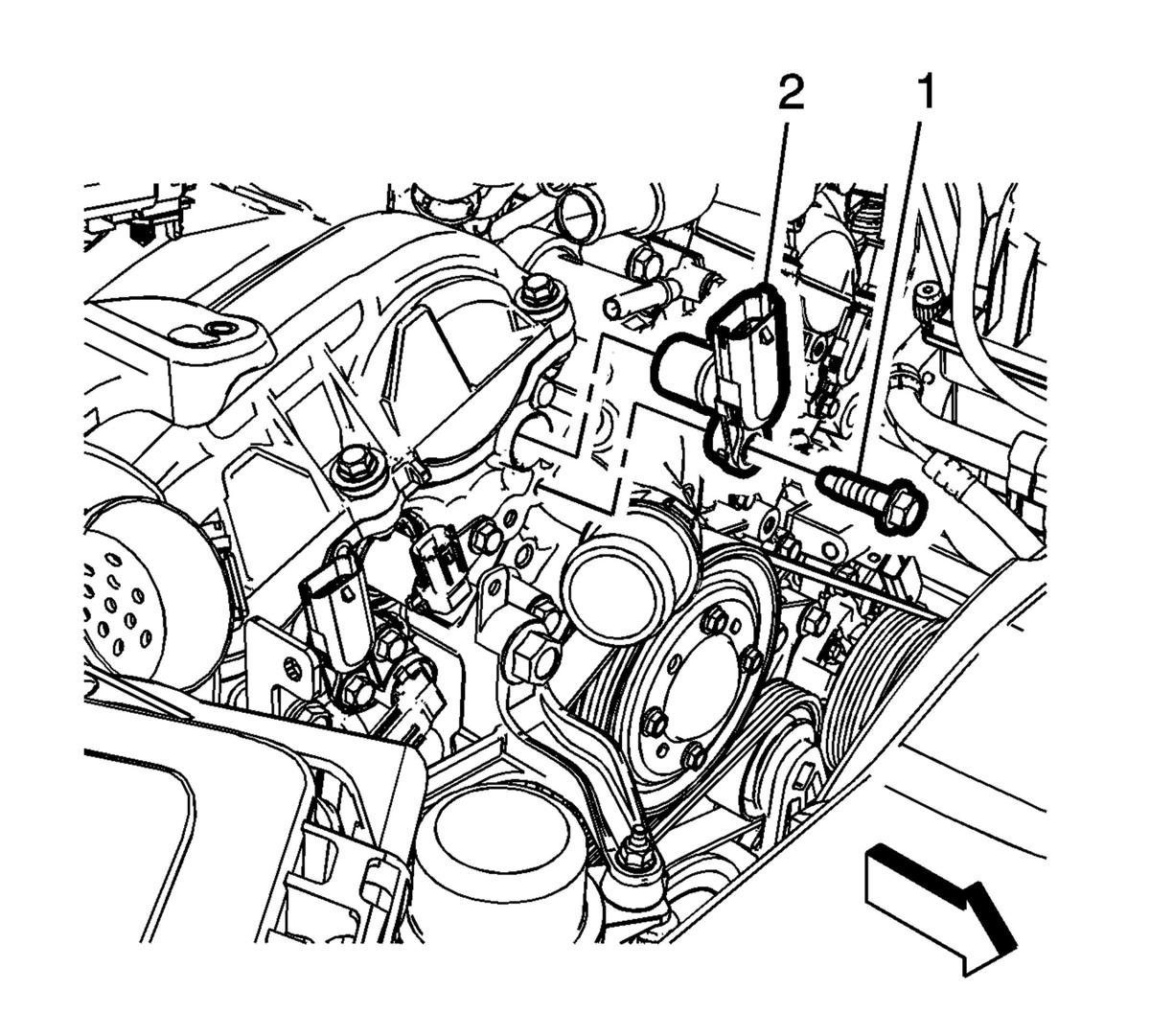

    4. Fig 1: Camshaft Position Sensor - Bank 1 (Right Side) Intake (LF4)
    GM3533272Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    Refer to Safety Glasses Warning .

  4. Use compressed air to remove debris from the CMP sensor and surrounding cavities.
  5. Disconnect the CMP sensor electrical connector.
  6. Remove the CMP sensor to engine front cover retaining bolt (1).
  7. Remove the CMP sensor (2) from the engine front cover.
