Turbocharger Oil Feed Pipe Replacement (Bank 2)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

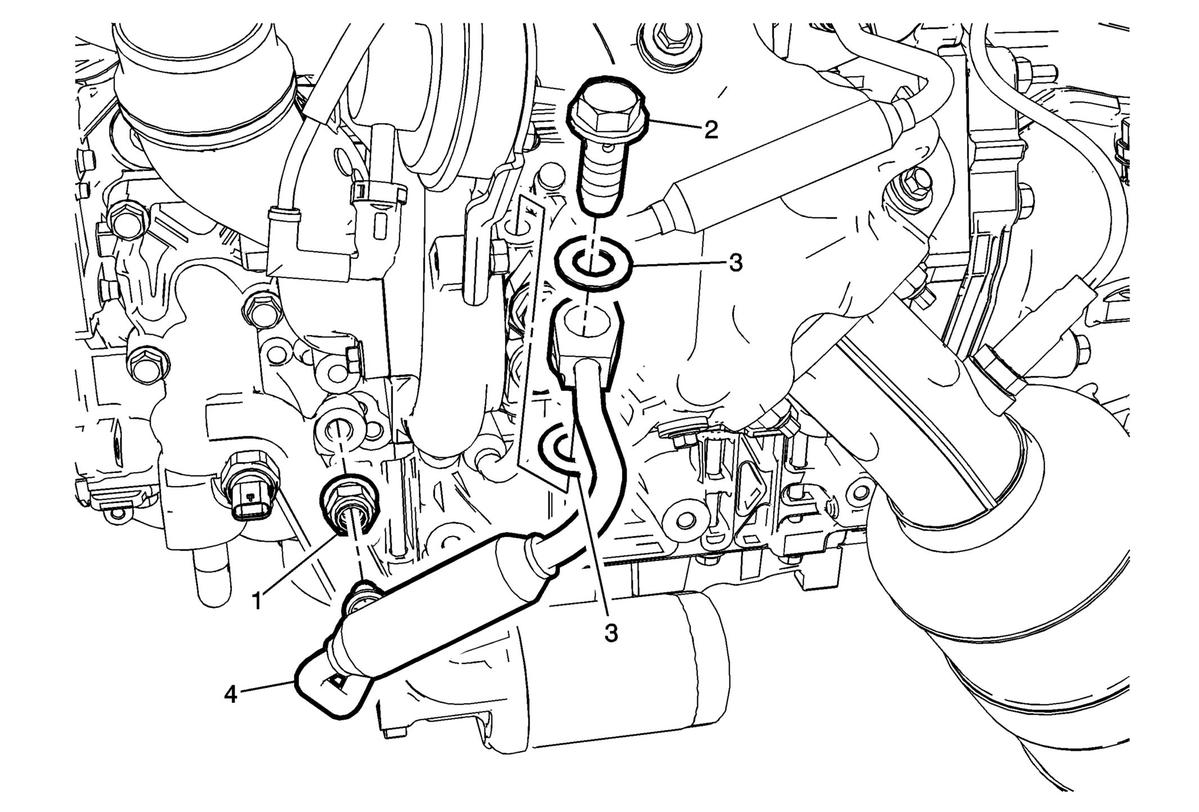

Fig 1: Turbocharger Oil Feed Pipe (Bank 2)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Turbocharger Wastegate Actuator Replacement - Left Side Engine Mount Bracket Replacement - Left Side (LGX) Engine Mount Bracket Replacement - Left Side (LF4)
1	Turbocharger Oil Feed Pipe Fitting CAUTION: Refer to Fastener Caution . Tighten 26 N.m (19 lb ft) NOTE: Install NEW fitting. It is not reusable.
2	Turbocharger Oil Feed Pipe Bolt Tighten 35 N.m (26 lb ft)
3	Turbocharger Oil Feed Pipe Gasket NOTE: Install NEW gaskets. They are not reusable.
4	Turbocharger Oil Feed Pipe
