Generator and Drive Belt Tensioner Bracket Replacement
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

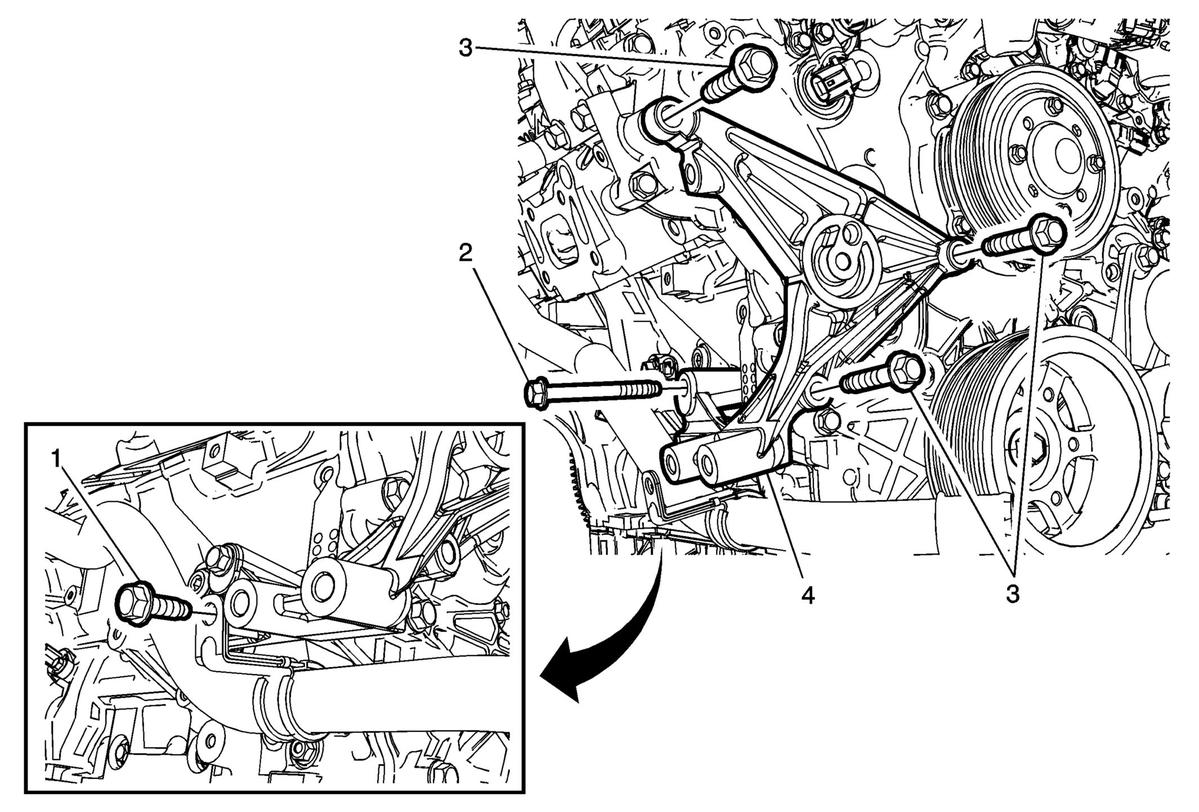

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the generator. Refer to Generator Replacement (LGX)Generator Replacement (LF4) . |
|
| 1 | Fastener
CAUTION:
Refer to Fastener Caution . Procedure Position the coolant hose clamp clear of the generator and drive belt tensioner bracket. Tighten 22 N.m (16 lb ft) |
| 2 | Fastener Tighten 50 N.m (37 lb ft) |
| 3 | Fastener (QTY:3) Tighten 50 N.m (37 lb ft) |
| 4 | Generator and Drive Belt Tensioner Bracket. |
