Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive belt. Refer to Drive Belt Replacement (LF4) .
  2. Remove the engine coolant fan shroud. Refer to Engine Coolant Fan Shroud Replacement (LF4) .
  3. Remove the starter. Refer to Starter Replacement (LF4 - Manual Transmission)Starter Replacement (LF4 - Automatic Transmission) .
  4. Remove the stabilizer shaft. Refer to Stabilizer Shaft Replacement (V-Series) .
    5. Fig 1: Flywheel Holding Tool
    GM2663739Courtesy of GENERAL MOTORS COMPANY
  5. Install the EN-46106  tool (1) through the starter mounting hole.

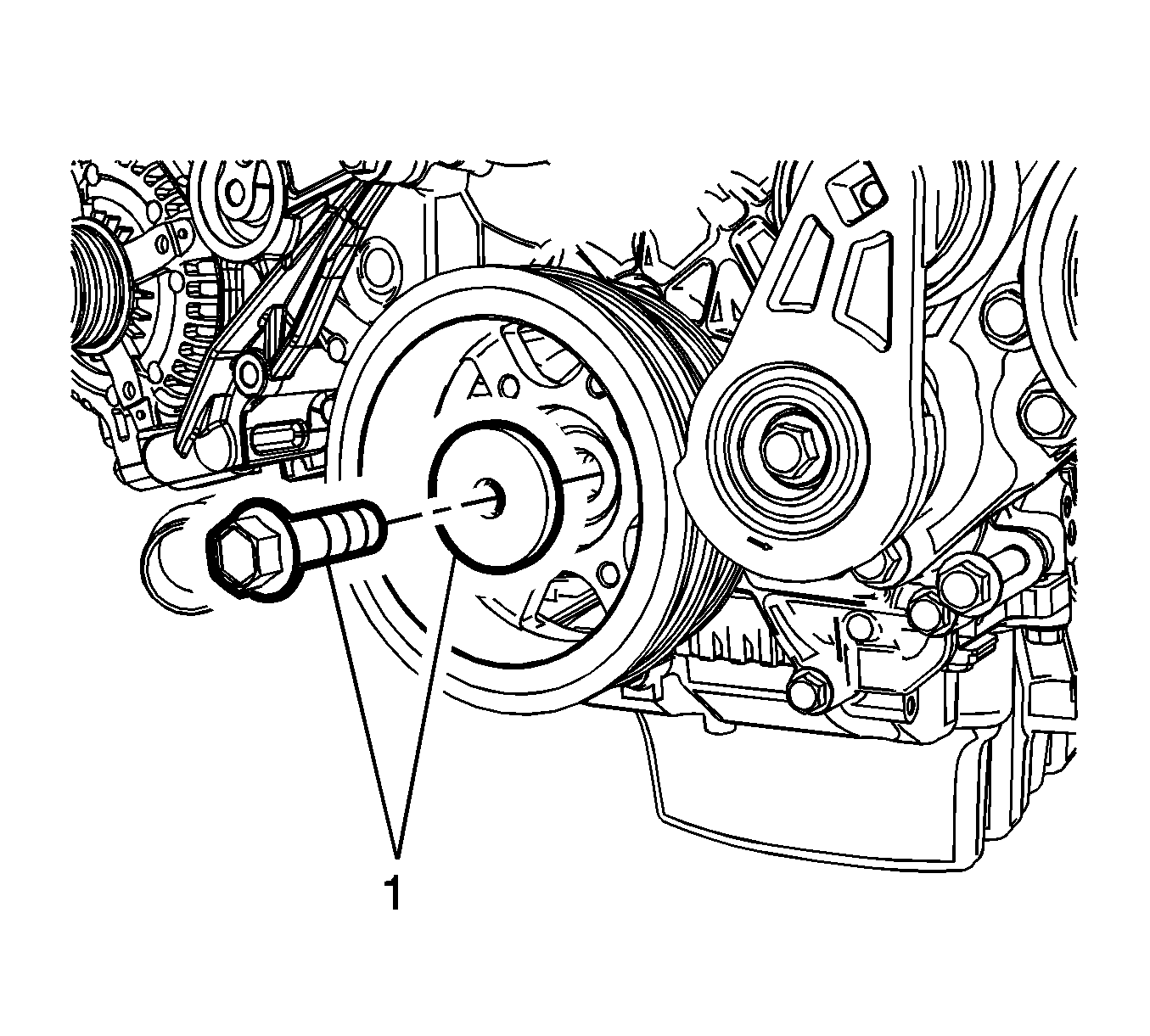

    6. Fig 2: Crankshaft Balancer Bolt And Washer
    GM2780473Courtesy of GENERAL MOTORS COMPANY
  6. Remove the crankshaft balancer bolt and washer (1). Discard the bolt.

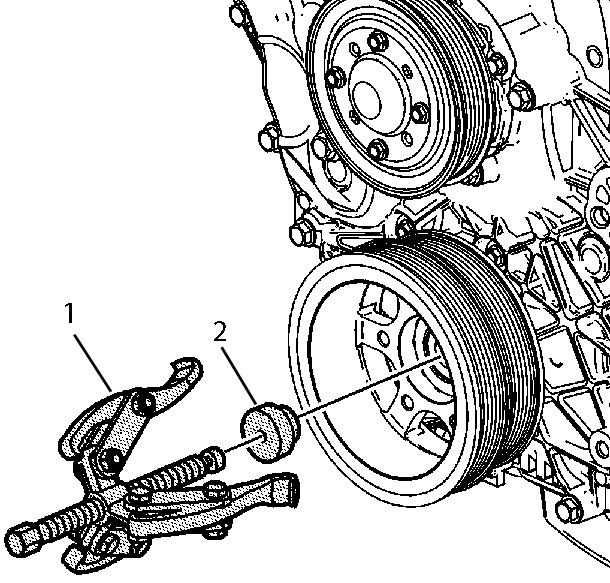

    7. Fig 3: Crankshaft Balancer Remover
    GM2780471Courtesy of GENERAL MOTORS COMPANY
  7. Install the EN-38416-2  button (2) in the nose of the crankshaft.
  8. Install the EN-41816  remover (1) in order to remove the crankshaft balancer (3).
  9. Tighten the center bolt of the EN-41816  remover (1) in order to pull the crankshaft balancer off of the crankshaft.
  10. Remove the EN-41816  remover and EN-38416-2  button from the crankshaft balancer.
