Instrument Panel Cluster Trim Plate Bezel Replacement (Equinox)

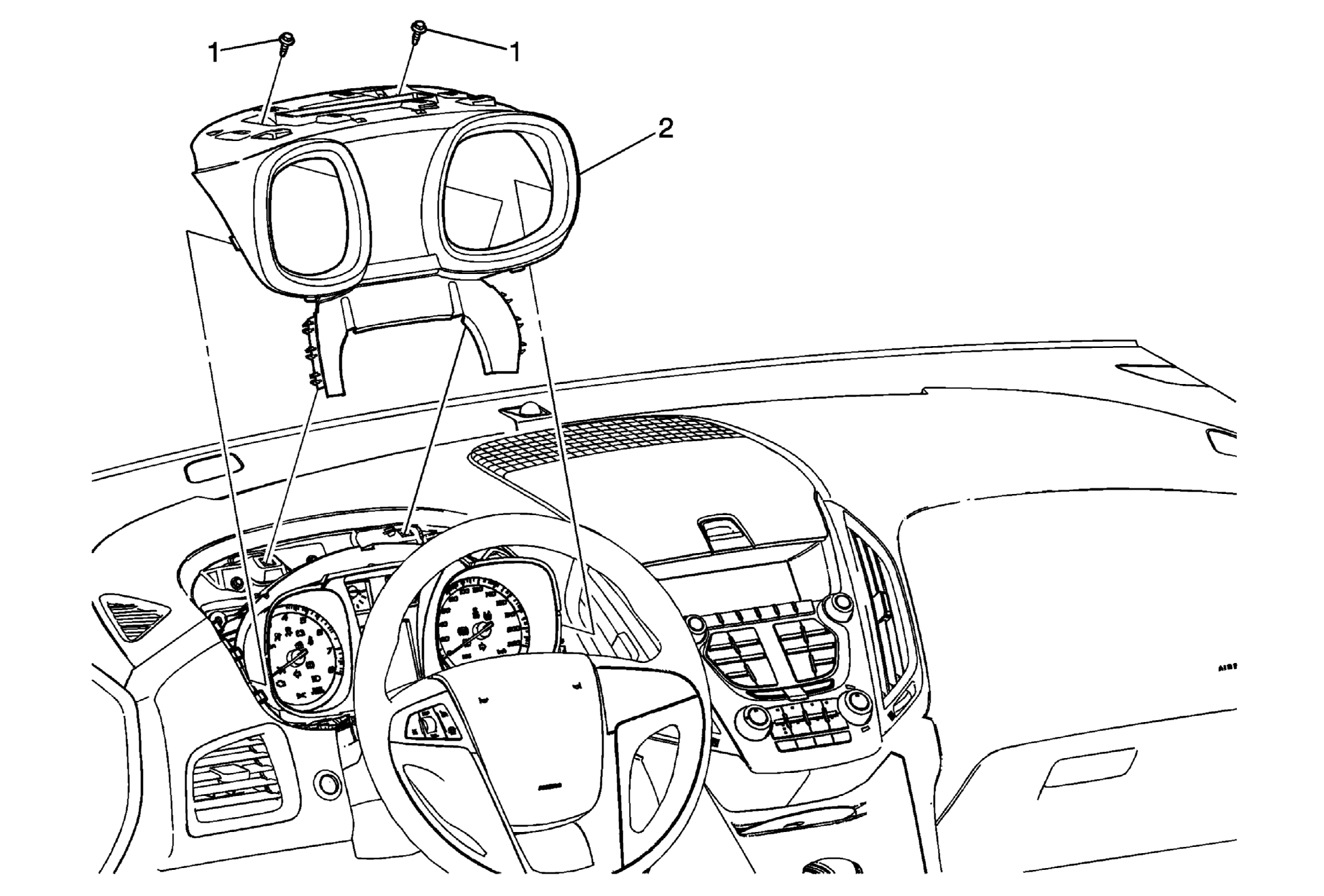

Fig 1: Instrument Panel Cluster Trim Plate Bezel (Equinox)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel cluster trim pad. Refer to Instrument Panel Cluster Trim Pad Replacement (Equinox) .
1	Instrument Panel Cluster Trim Plate Bezel Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Cluster Trim Plate Bezel Assembly Procedures Use a flat bladed plastic trim tool in order to release the retainer tabs securing the steering column seal to the instrument panel lower trim pad retainer. Use a flat bladed plastic trim tool in order to disengage the retainer clips securing the instrument panel cluster trim bezel to the instrument panel assembly.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel cluster trim pad. Refer to Instrument Panel Cluster Trim Pad Replacement (Equinox) .

Instrument Panel Cluster Trim Plate Bezel Fasteners (Qty: 2)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Instrument Panel Cluster Trim Plate Bezel Assembly

Procedures

Use a flat bladed plastic trim tool in order to release the retainer tabs securing the steering column seal to the instrument panel lower trim pad retainer.
Use a flat bladed plastic trim tool in order to disengage the retainer clips securing the instrument panel cluster trim bezel to the instrument panel assembly.
