Instrument Panel Cluster Trim Pad Replacement (Equinox)

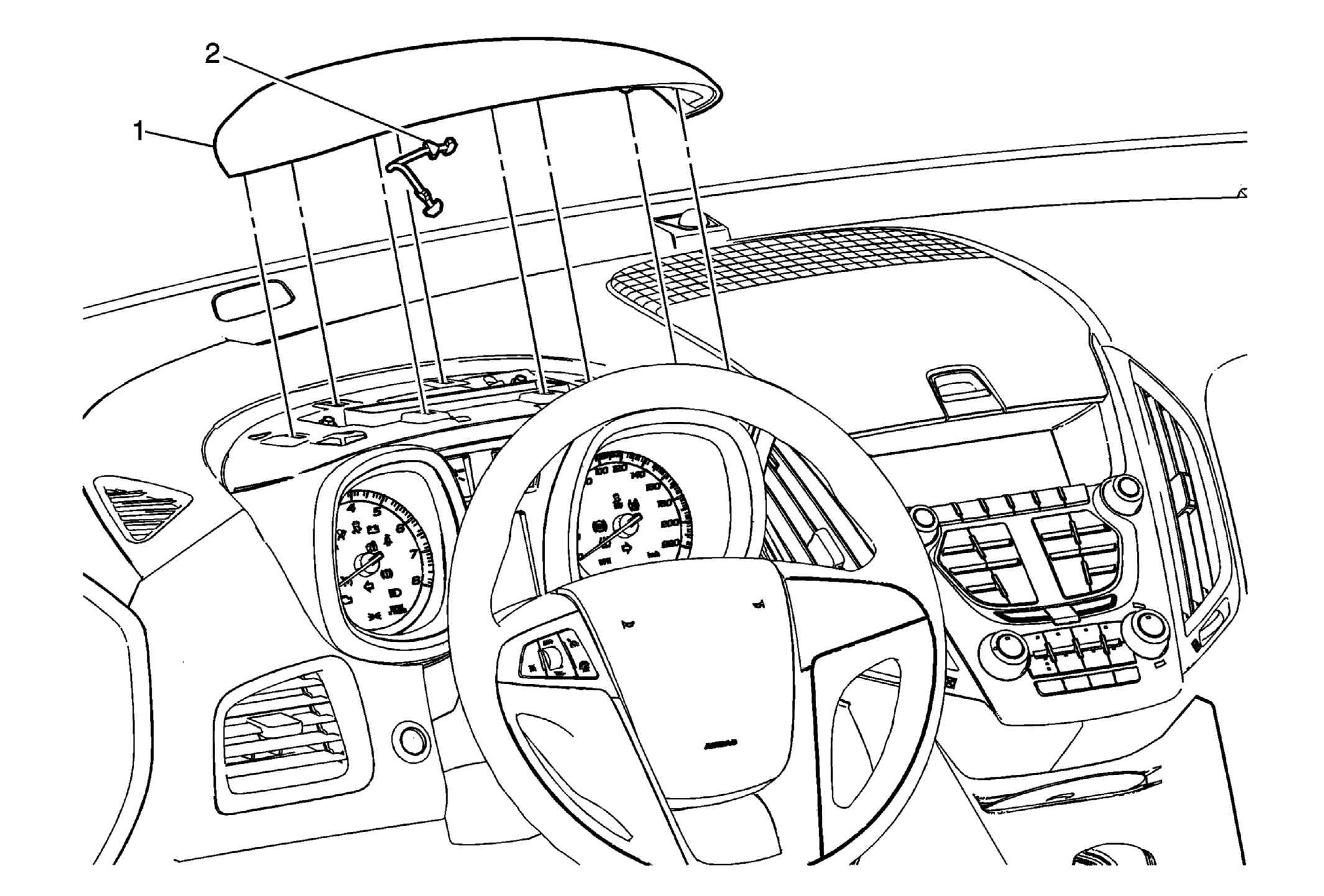

Fig 1: Instrument Panel Cluster Trim Pad (Equinox)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Instrument Panel Cluster Trim Pad Procedures Use a flat bladed plastic trim tool in order to release the retainer clips securing the instrument panel cluster trim pad to the instrument panel cluster trim plate bezel. Disconnect the instrument panel cluster trim pad tether.
2	Instrument Panel Cluster Trim Pad Tether

Callout

Component Name

Instrument Panel Cluster Trim Pad

Procedures

Use a flat bladed plastic trim tool in order to release the retainer clips securing the instrument panel cluster trim pad to the instrument panel cluster trim plate bezel.
Disconnect the instrument panel cluster trim pad tether.

Instrument Panel Cluster Trim Pad Tether
