Fuel Economy Switch Replacement

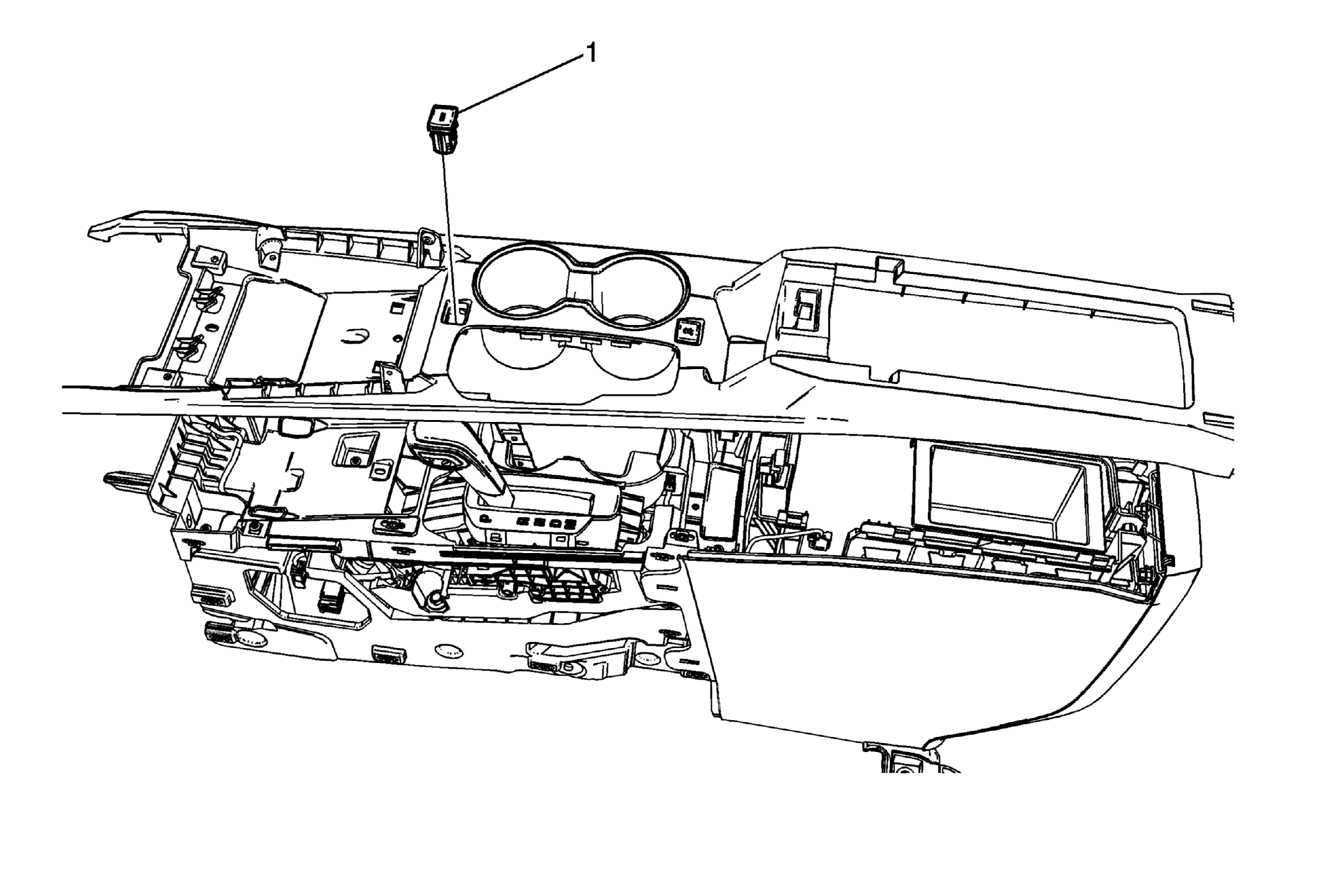

Fig 1: Fuel Economy Indicator Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor lower console side finish cover, right side. Refer to Front Floor Lower Console Side Finish Cover Replacement - Right Side (Equinox)Front Floor Lower Console Side Finish Cover Replacement - Right Side (Terrain) .
1	Fuel Economy Indicator Switch Procedure Reach under the economy switch and apply a firm upward pressure on it to release the fastening tabs. Disconnect the electrical connector.

Callout

Component Name

Fuel Economy Indicator Switch

Procedure

Reach under the economy switch and apply a firm upward pressure on it to release the fastening tabs.
Disconnect the electrical connector.
