Front Side Door Window Inner Sealing Strip Replacement (Sedan)
WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front side door trim. Refer to Front Side Door Trim Replacement (Sedan) . |
|

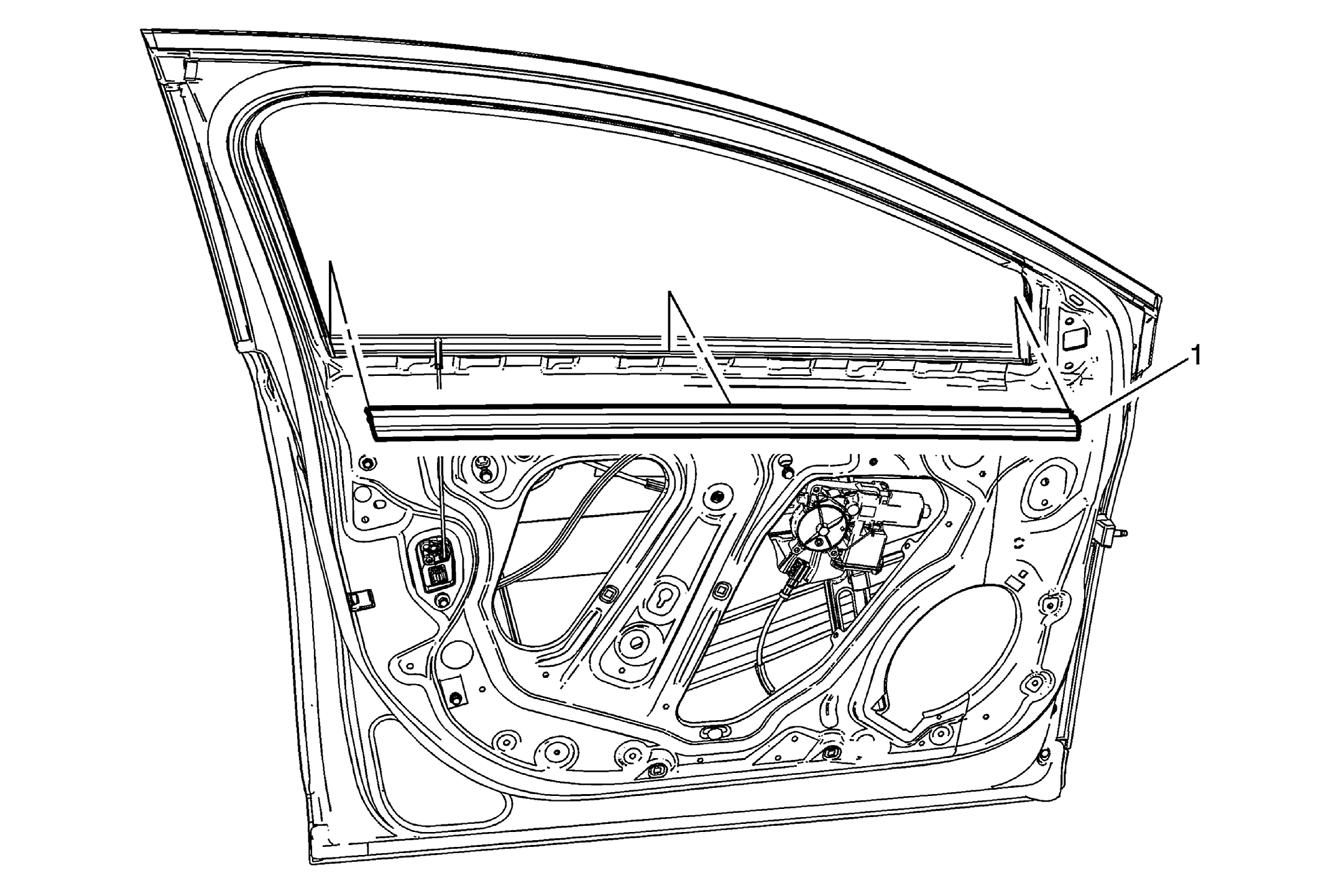

| 1 | Front Side Door Inner Sealing Strip Procedure Starting at the front edge of the sealing strip, pull rearward releasing it from the pinchweld flange. |
