Front Side Door Trim Replacement (Sedan)

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

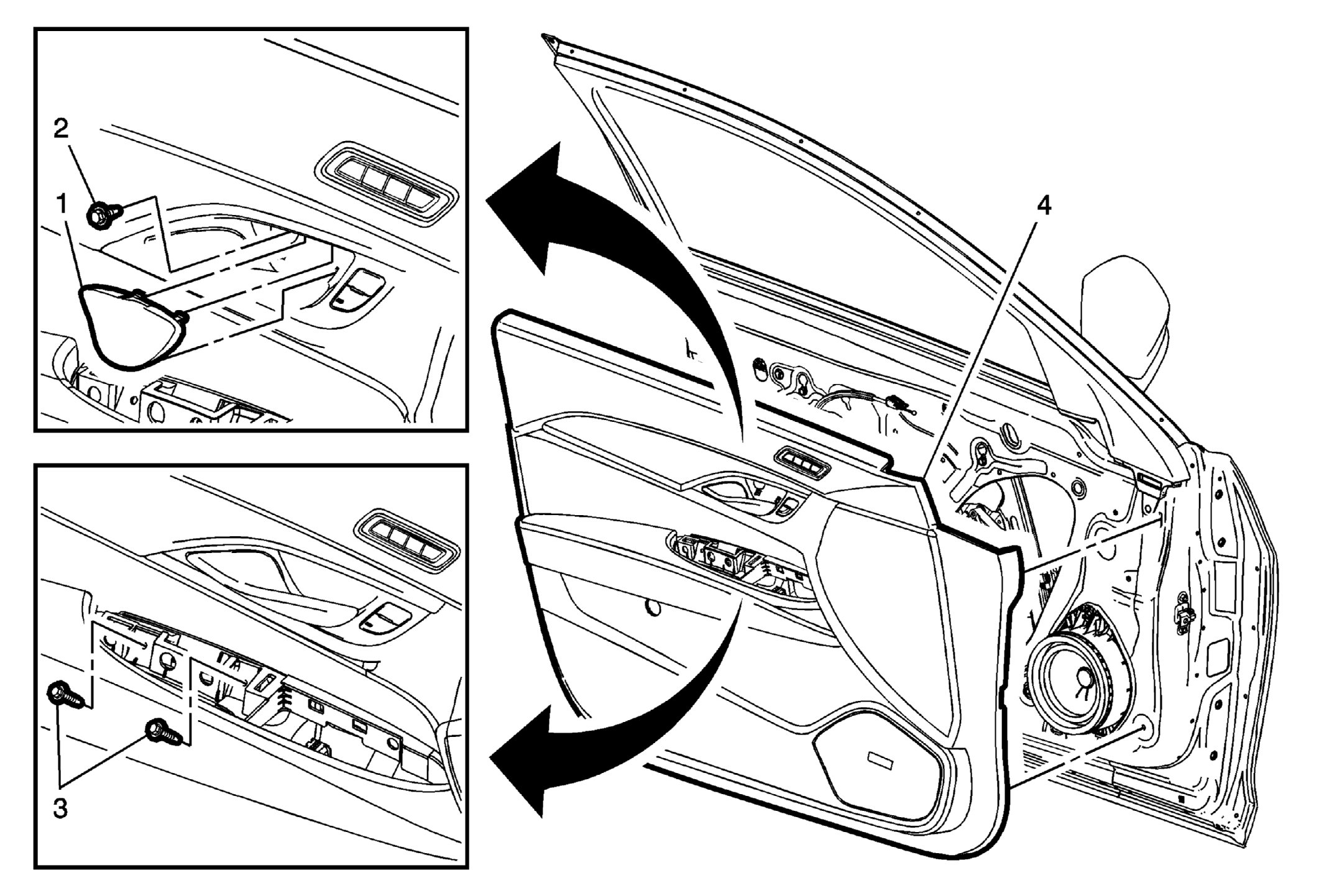

Fig 1: Front Side Door Trim (Sedan)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door armrest switch mount plate driver side. Refer to Front Side Door Armrest Switch Mount Plate Replacement (Sedan) .
1	Front Side Door Inside Handle Bolt Finish Cap NOTE: Use a suitable tool, place the tool between the notch located at the top of the door handle cap and the door handle. Turn the suitable tool clockwise releasing the door handle cap, exposing the handle fastener.
2	Front Side Door Inside Handle Fastener CAUTION: Refer to Fastener Caution .
3	Front Side Door Pull Handle Fastener (Qty: 2)
4	Front Side Door Trim Assembly Procedure Using the appropriate plastic trim tool loosen the retainers along the bottom of the door trim panel. Remove the door trim panel along with the front side door window inner sealing strip and metal retainer clips by pulling in an upwards direction. Pull upwards on the door lock retainer cable to disengage. Disconnect the electrical connector. Place the door trim panel on a clean flat surface. Remove the front side door window inner sealing strip and metal retainer clips from door trim panel. Refer to Front Side Door Window Inner Sealing Strip Replacement (Sedan) . When installing the door trim panel, reinstall new metal belt line clips and front side door window inner sealing strip prior to installing door trim panel.
