Rear Closure Fixed Handle Applique Replacement

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

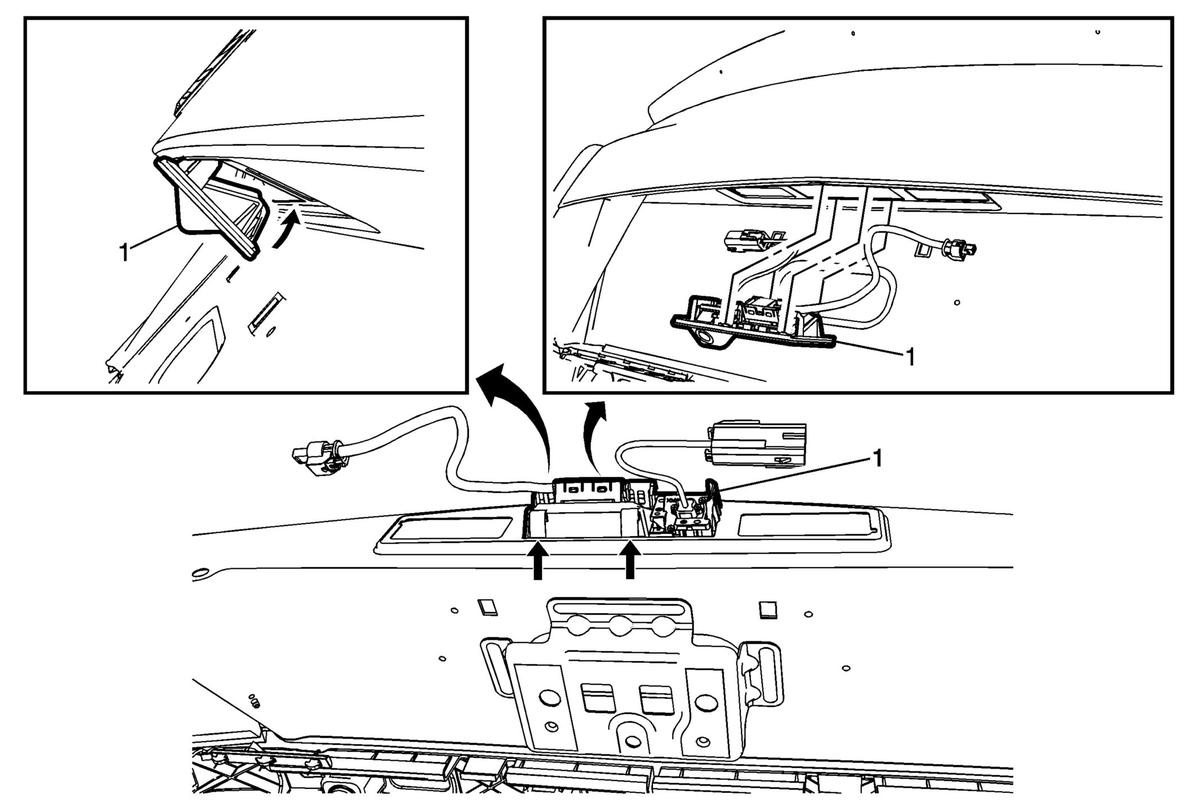

Fig 1: Rear Closure Fixed Handle Applique

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .
1	Rear Closure Fixed Handle Applique Procedure Disconnect the electrical connectors from the applique. Press in the retainers on the back side and press the rear closure fixed handle applique out from the rear compartment. Position the outer edge of the applique to the rear compartment lid and press inner retainers into place.

Callout

Component Name

Preliminary Procedure
Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .

Rear Closure Fixed Handle Applique

Procedure

Disconnect the electrical connectors from the applique.
Press in the retainers on the back side and press the rear closure fixed handle applique out from the rear compartment.
Position the outer edge of the applique to the rear compartment lid and press inner retainers into place.
