Radio Speaker Amplifier Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

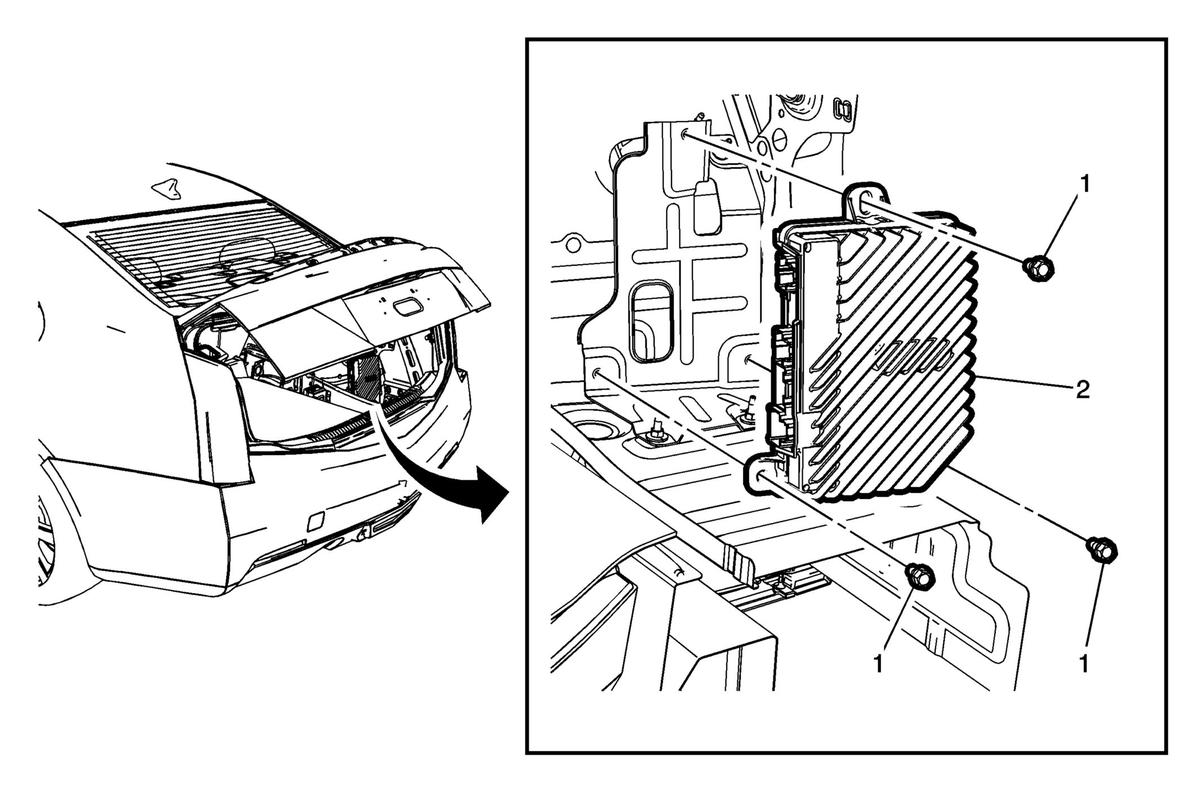

Fig 1: Radio Speaker Amplifier & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment side trim panel - right. Refer to Rear Compartment Side Trim Replacement - Right Side (Sedan with AM9)Rear Compartment Side Trim Replacement - Right Side (Sedan except AM9)Rear Compartment Side Trim Replacement - Right Side (Coupe) .
1	Radio Speaker Amplifier Fasteners (Qty: 3) CAUTION: Refer to Fastener Caution .
2	Radio Speaker Amplifier Procedure Disconnect the electrical connectors. For programming and set up information, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the rear compartment side trim panel - right. Refer to Rear Compartment Side Trim Replacement - Right Side (Sedan with AM9)Rear Compartment Side Trim Replacement - Right Side (Sedan except AM9)Rear Compartment Side Trim Replacement - Right Side (Coupe) .

Radio Speaker Amplifier Fasteners (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Radio Speaker Amplifier

Procedure

Disconnect the electrical connectors.
For programming and set up information, refer to Control Module References .
