Driver or Passenger Seat Cushion Outer Finish Panel Replacement (Coupe)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

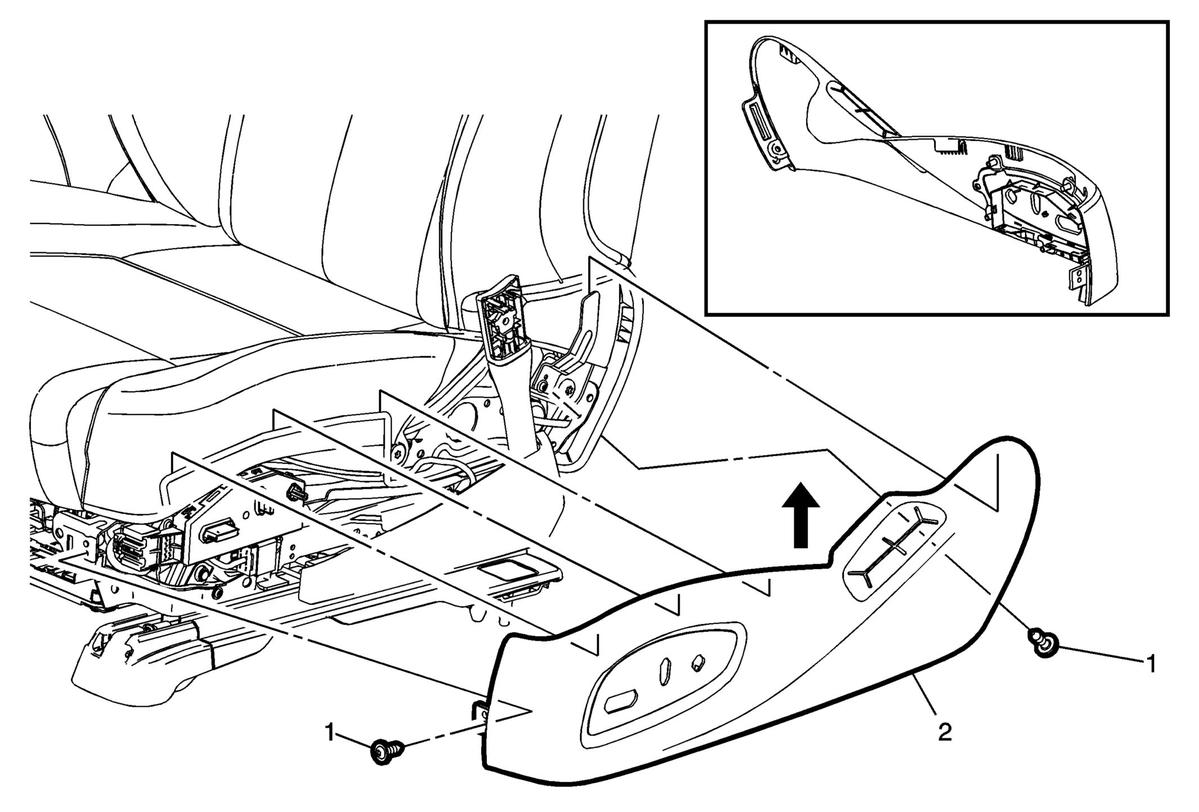

Fig 1: Driver or Passenger Seat Cushion Outer Finish Panel (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the seat belt from the pretensioner. Refer to Front Seat Belt Retractor Replacement (Coupe) . Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation . Remove the front seat cushion front finish cover. Refer to Front Seat Cushion Front Finish Cover Replacement (Coupe) .
1	Driver or Passenger Seat Cushion Outer Finish Cover Fastener (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Driver or Passenger Seat Cushion Outer Finish Cover Procedure Disengage the seat back cushion finish panel straps and pull back the toe kick cover to gain access to the rear fastener. Remove the outer finish panel by pulling upward near the retainer clip locations. Disconnect the electrical connectors. If replacing the finish panel, transfer components as necessary.

Callout

Component Name

Preliminary Procedure

Remove the seat belt from the pretensioner. Refer to Front Seat Belt Retractor Replacement (Coupe) .
Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation .
Remove the front seat cushion front finish cover. Refer to Front Seat Cushion Front Finish Cover Replacement (Coupe) .

Driver or Passenger Seat Cushion Outer Finish Cover Fastener (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Driver or Passenger Seat Cushion Outer Finish Cover

Procedure

Disengage the seat back cushion finish panel straps and pull back the toe kick cover to gain access to the rear fastener.
Remove the outer finish panel by pulling upward near the retainer clip locations.
Disconnect the electrical connectors.
If replacing the finish panel, transfer components as necessary.
