Front Seat Cushion Front Finish Cover Replacement (Coupe)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

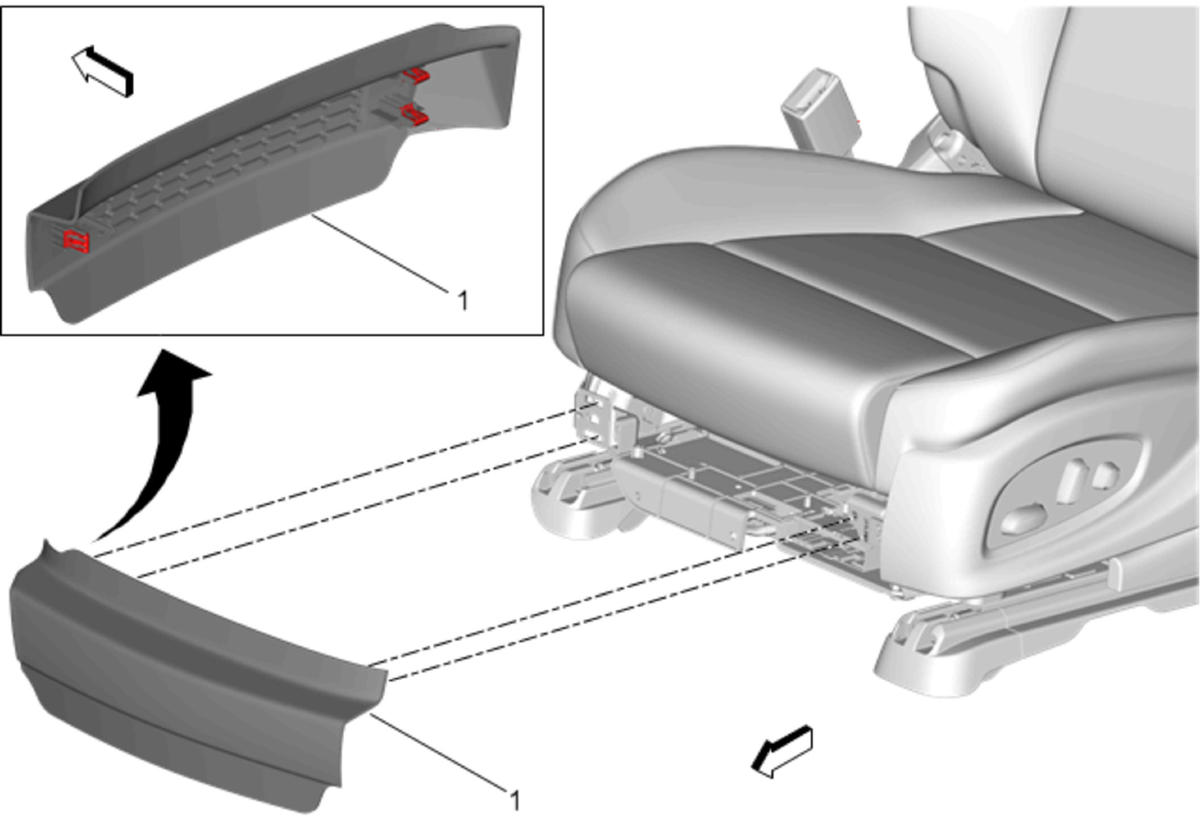

| Callout | Component Name |
|---|---|
| 1 | Front Seat Cushion Front Finish Cover
CAUTION:
Do not twist the cover during removal. Twisting the cover may cause the component to break. Procedure Firmly grasp both sides of the finish cover pulling outward to disengage the retainer clips and locator pin from the seat cushion frame brackets. |
