Rear Bumper Fascia Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

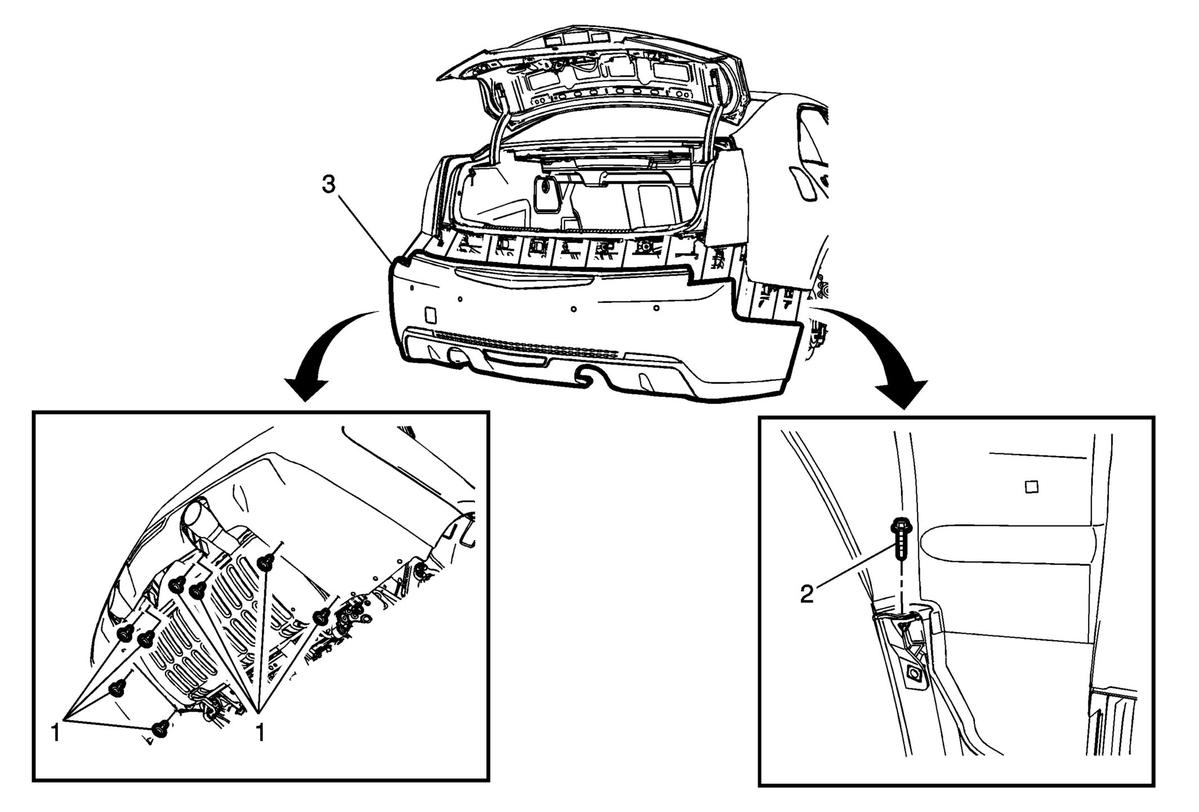

Fig 1: Rear Bumper Fascia

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the left and right rear wheelhouse liner. Refer to Rear Wheelhouse Liner Replacement (Non V-Series)Rear Wheelhouse Liner Replacement (V-Series) .
1	Rear Bumper Fascia Bolt (Qty: 8) CAUTION: Refer to Fastener Caution .
2	Rear Bumper Fascia Screw (Qty: 2)
3	Rear Bumper Fascia Procedure Carefully push a small nylon wedge between the fascia and the rear fascia brackets. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia from the rear fascia brackets. Disconnect the electrical connector. Transfer parts as needed.
