Rear Wheelhouse Liner Replacement (Non V-Series)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

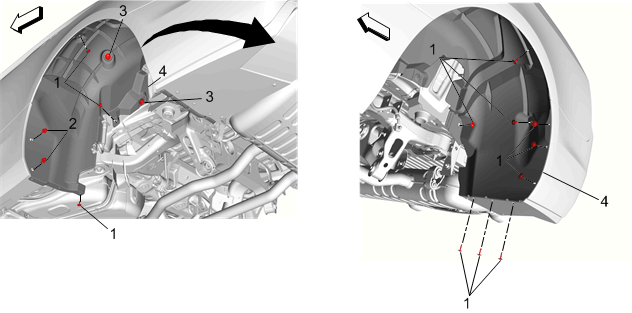

Fig 1: Rear Wheelhouse Liner (Non V-Series)
GM3751672Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the rear tire and wheel assembly. Tire and Wheel Removal and Installation (Non V-Series)
  2. Rear Tire Front Air Deflector Replacement
1 Rear Wheelhouse Liner Screw (Qty: 12)
CAUTION:

Refer to Fastener Caution


Tighten:
2.5 N.m (22 lb in)
2 Rear Wheelhouse Liner Push-In Retainer (Qty: 2)
3 Rear Wheelhouse Liner Retainer (Qty: 2)
4 Rear Wheelhouse Liner
