Front Bumper Fascia Replacement (V)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

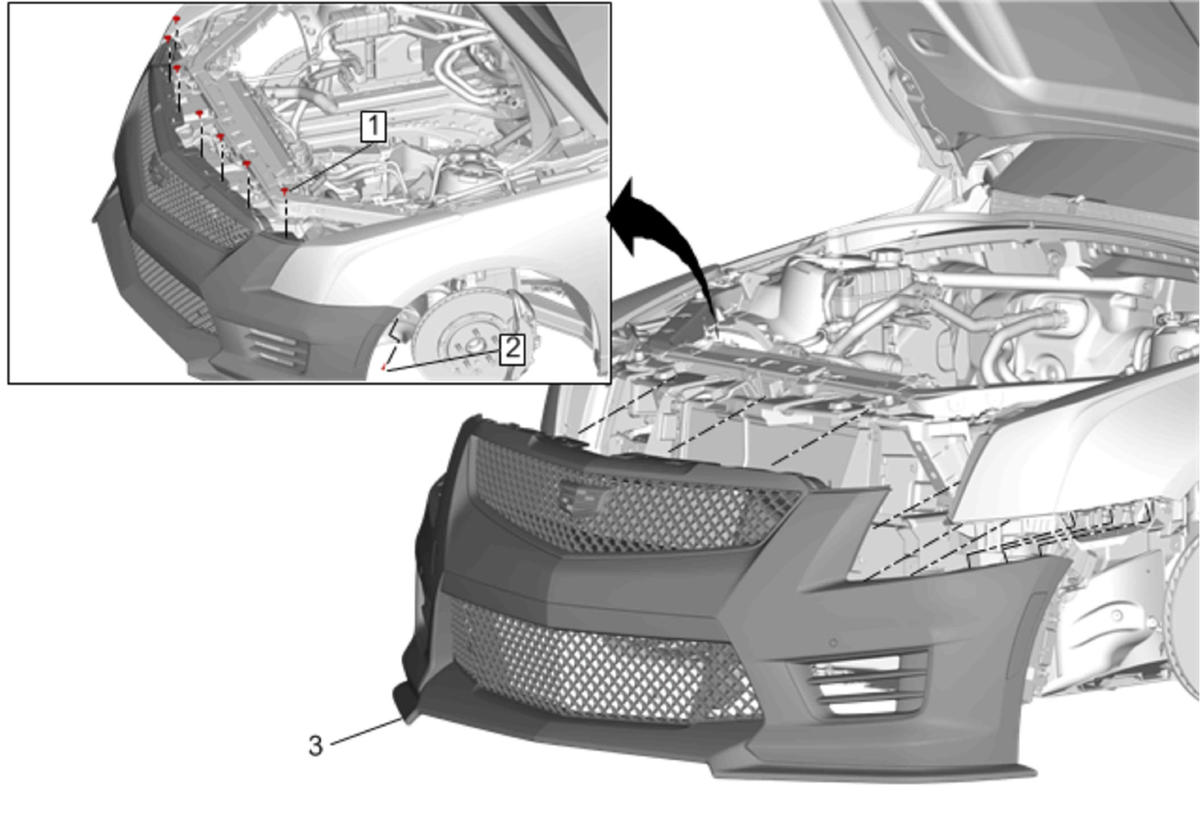

Fig 1: Front Bumper Fascia (V)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Compartment Front Sight Shield Replacement (ATS-V) . Front Wheelhouse Liner Replacement (V-Series) . Front Air Deflector Replacement
1	Front Bumper Fascia Upper Bolt (Qty: 7) CAUTION: Refer to Fastener Caution . Tighten 4 N.m (35 lb in)
2	Front Bumper Fascia Bolt (Qty: 2) Tighten 3 N.m (27 lb in)
3	Front Bumper Fascia Procedure Carefully push a small nylon wedge between the fascia and the front fascia guide. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia from the front fascia guide. Disconnect all electrical connectors. Transfer components as necessary.
