Rear Compartment Floor Panel Carpet Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

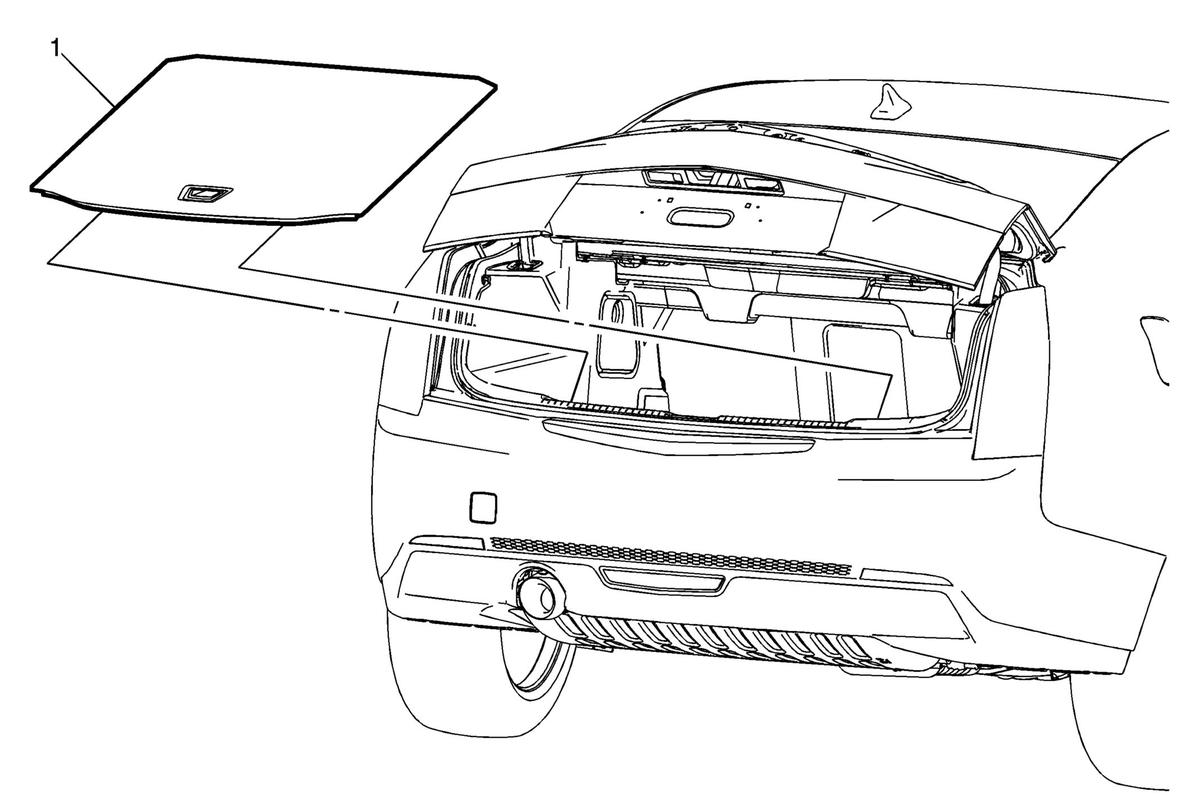

Fig 1: Rear Compartment Floor Panel Carpet
GM2812532Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Compartment Floor Panel Carpet Assembly
