Rear Side Door Check Link Replacement

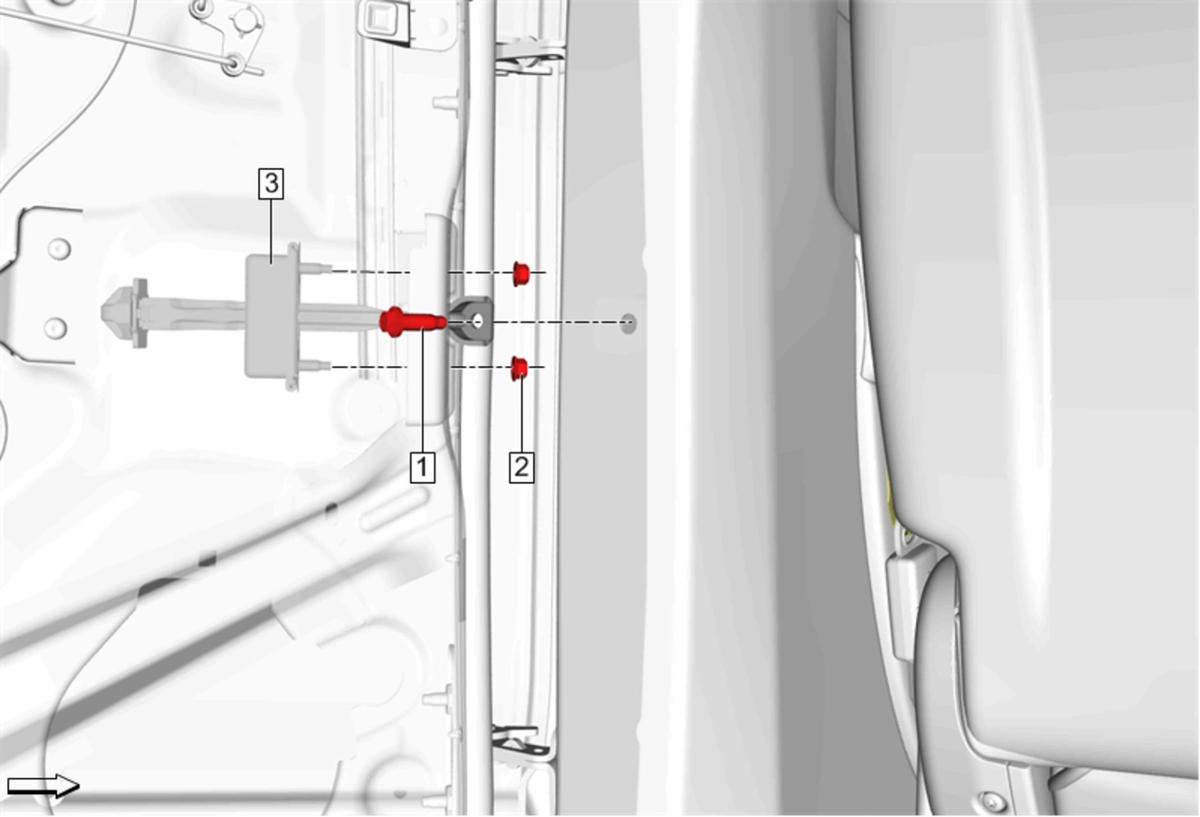

Fig 1: Rear Side Door Check Link
GM4418012Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Place the door in the full open position.
  2. Place the window in the full up position.
  3. Radio Rear Side Door Speaker Replacement
1 Rear Side Door Check Link Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
2 Rear Side Door Check Link Nut (Qty: 2)
Tighten
10 N.m (89 lb in)
3 Rear Side Door Check Link
