Radio Rear Side Door Speaker Replacement

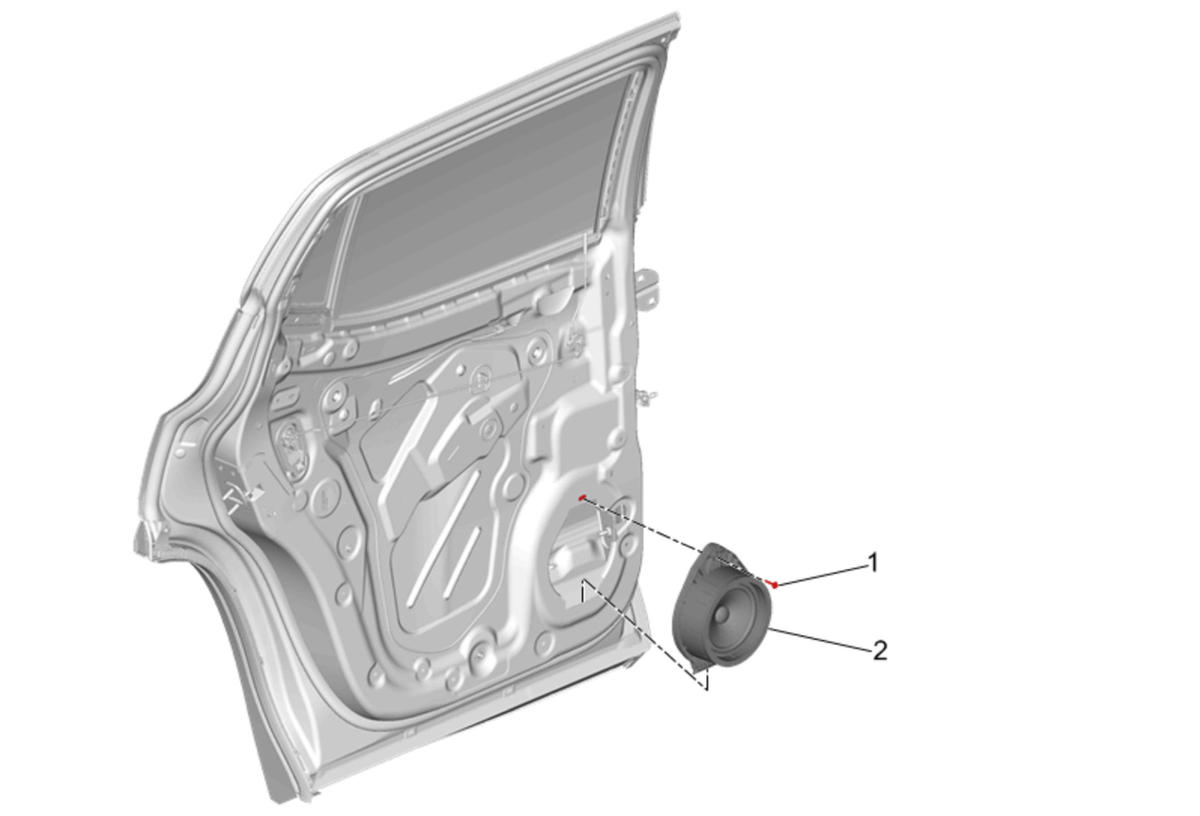

Fig 1: Radio Rear Side Door Speaker

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove Rear Side Door Trim. Refer to Rear Side Door Trim Replacement
1	Radio Rear Side Door Speaker Fastener CAUTION: Refer to Fastener Caution Tighten  2.5 N.m (22 lb in)
2	Radio Rear Side Door Speaker Procedure  Disconnect the electrical connector.
