Hood Replacement

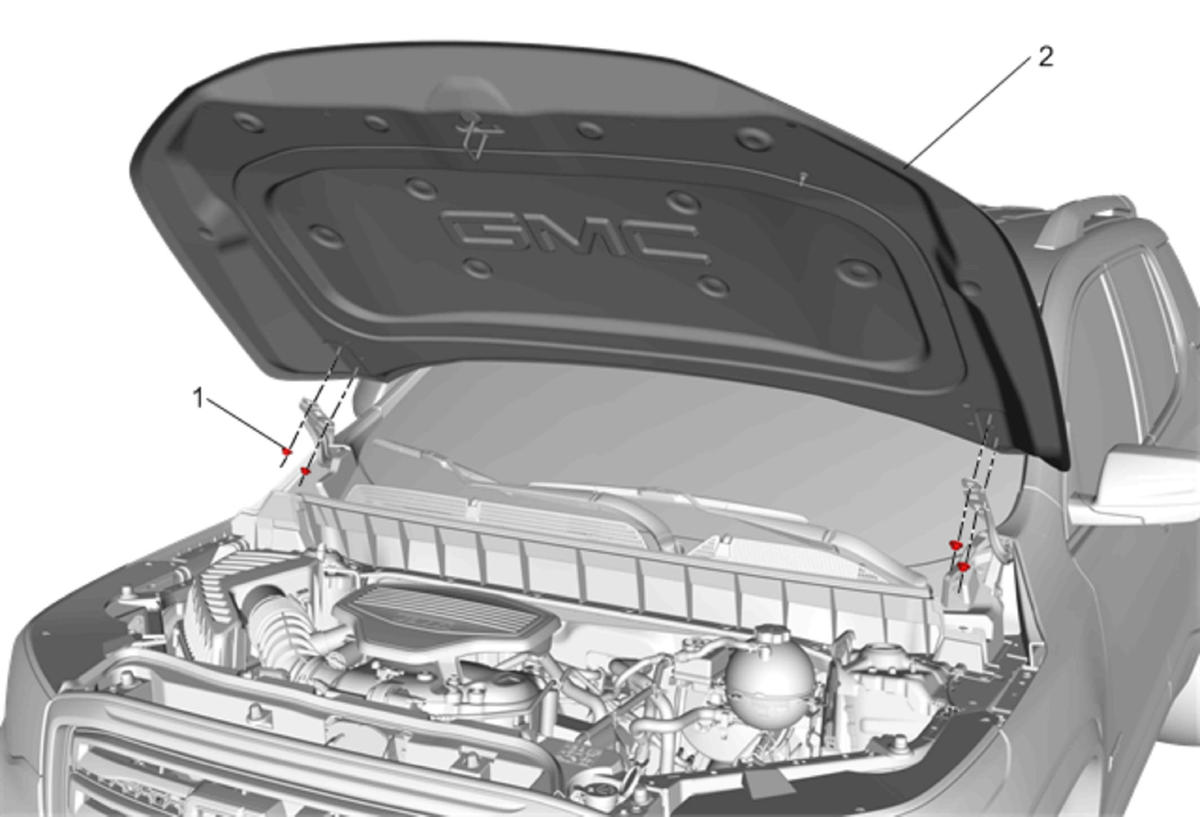

Fig 1: Hood

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury. Preliminary Procedure Hood Strut Replacement
1	Hood Hinge Nut (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Hood Procedure With the aid of an assistant, remove the hood. Transfer components as necessary. Hood»Adjust — Hood Adjustment

Callout

Component Name

WARNING:

When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

Preliminary Procedure Hood Strut Replacement

Hood Hinge Nut (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Tighten
22 N.m (16 lb ft)

Hood

Procedure

With the aid of an assistant, remove the hood.
Transfer components as necessary.
Hood»Adjust — Hood Adjustment
