Headlamp Replacement - Left Side

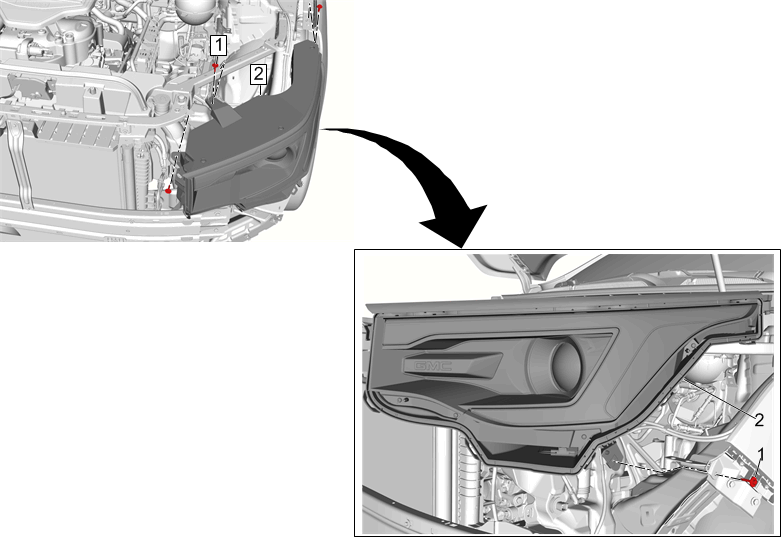

Fig 1: Headlamp - Left Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement
1	Headlamp Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Headlamp - Left Side Procedure Disconnect all electrical connectors. Transfer components as necessary. Headlamp Aiming

Callout

Component Name

Headlamp Bolt (Qty: 4)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Headlamp - Left Side

Procedure
