Front Bumper Fascia Replacement

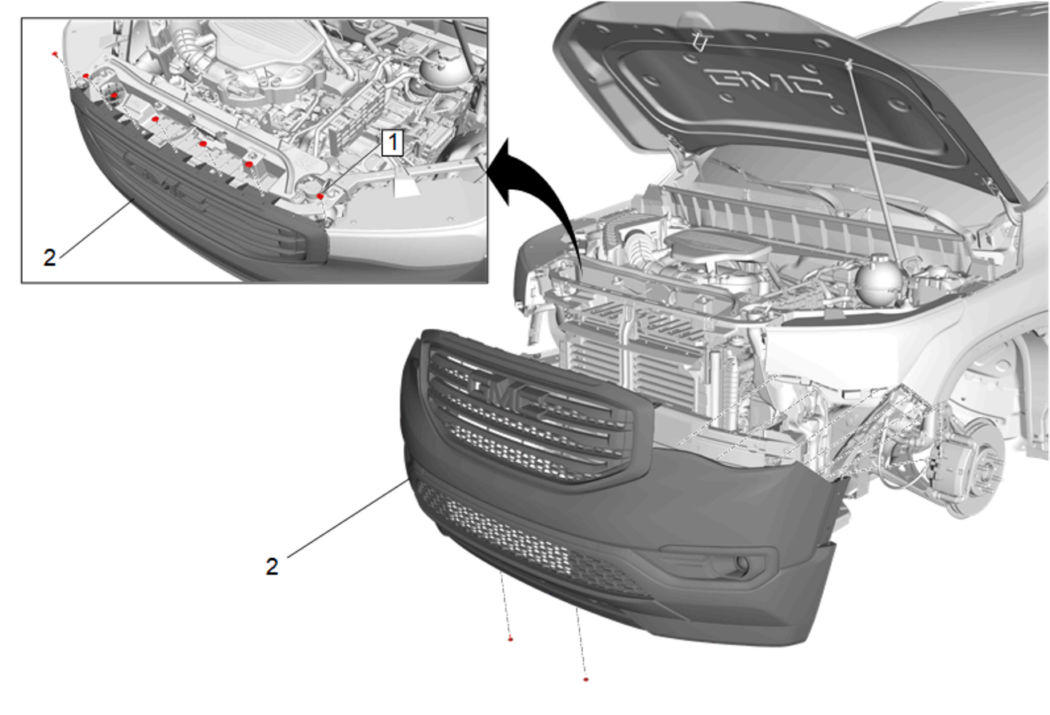

Fig 1: Front Bumper Fascia
GM4378038Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Front Wheelhouse Liner Replacement
  2. Front Wheel Opening Molding Replacement
  3. Hood Front Edge Weatherstrip Replacement
1 Front Bumper Fascia Bolt (Qty: 11)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Front Bumper Fascia

Procedure

  1. Carefully push a small nylon wedge between the fascia and the front fascia guide.Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia from the front fascia guide.
  2. Disconnect the electrical connectors.
  3. Transfer components as necessary.
  4. Reconnect the electrical connectors.
  5. Test and confirm fog lamp operation if required.
