Air Conditioning Condenser Replacement

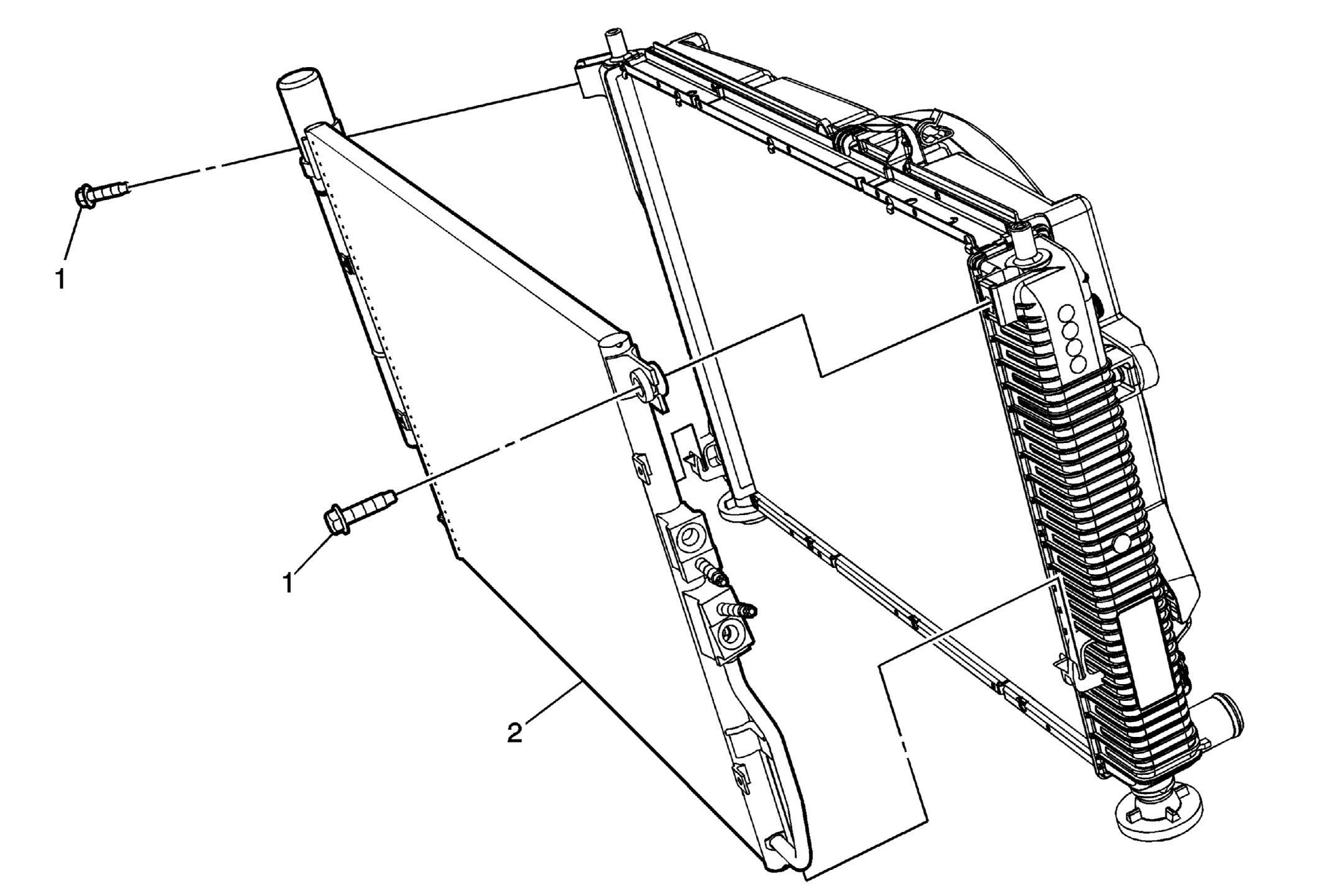

Fig 1: Air Conditioning Condenser

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Recover the refrigerant. Refrigerant Recovery and Recharging . Remove the radiator air lower baffel and deflector. Radiator Air Lower Baffle and Deflector Replacement . Remove the radiator air upper baffel and deflector. Radiator Air Upper Baffle and Deflector Replacement . Remove the air conditioning compressor hose. Air Conditioning Compressor Hose Replacement (LFX) Remove the air conditioning condenser and air conditioning evaporator tube. Air Conditioning Condenser and Air Conditioning Evaporator Tube Replacement
1	Air Conditioning Condenser Bolt CAUTION: Fastener Caution . Tighten 9 N.m (80 lb in)
2	Air Conditioning Condenser Procedure Add the specified amount of polyalkylene glycol (PAG) oil to the condenser. Approximate Fluid Capacities

Callout

Component Name

Preliminary Procedures

Recover the refrigerant. Refrigerant Recovery and Recharging .
Remove the radiator air lower baffel and deflector. Radiator Air Lower Baffle and Deflector Replacement .
Remove the radiator air upper baffel and deflector. Radiator Air Upper Baffle and Deflector Replacement .
Remove the air conditioning compressor hose. Air Conditioning Compressor Hose Replacement (LFX)
Remove the air conditioning condenser and air conditioning evaporator tube. Air Conditioning Condenser and Air Conditioning Evaporator Tube Replacement

Air Conditioning Condenser Bolt

CAUTION:

Tighten
9 N.m (80 lb in)

Air Conditioning Condenser
Procedure
Add the specified amount of polyalkylene glycol (PAG) oil to the condenser. Approximate Fluid Capacities
