Radiator Air Lower Baffle and Deflector Replacement

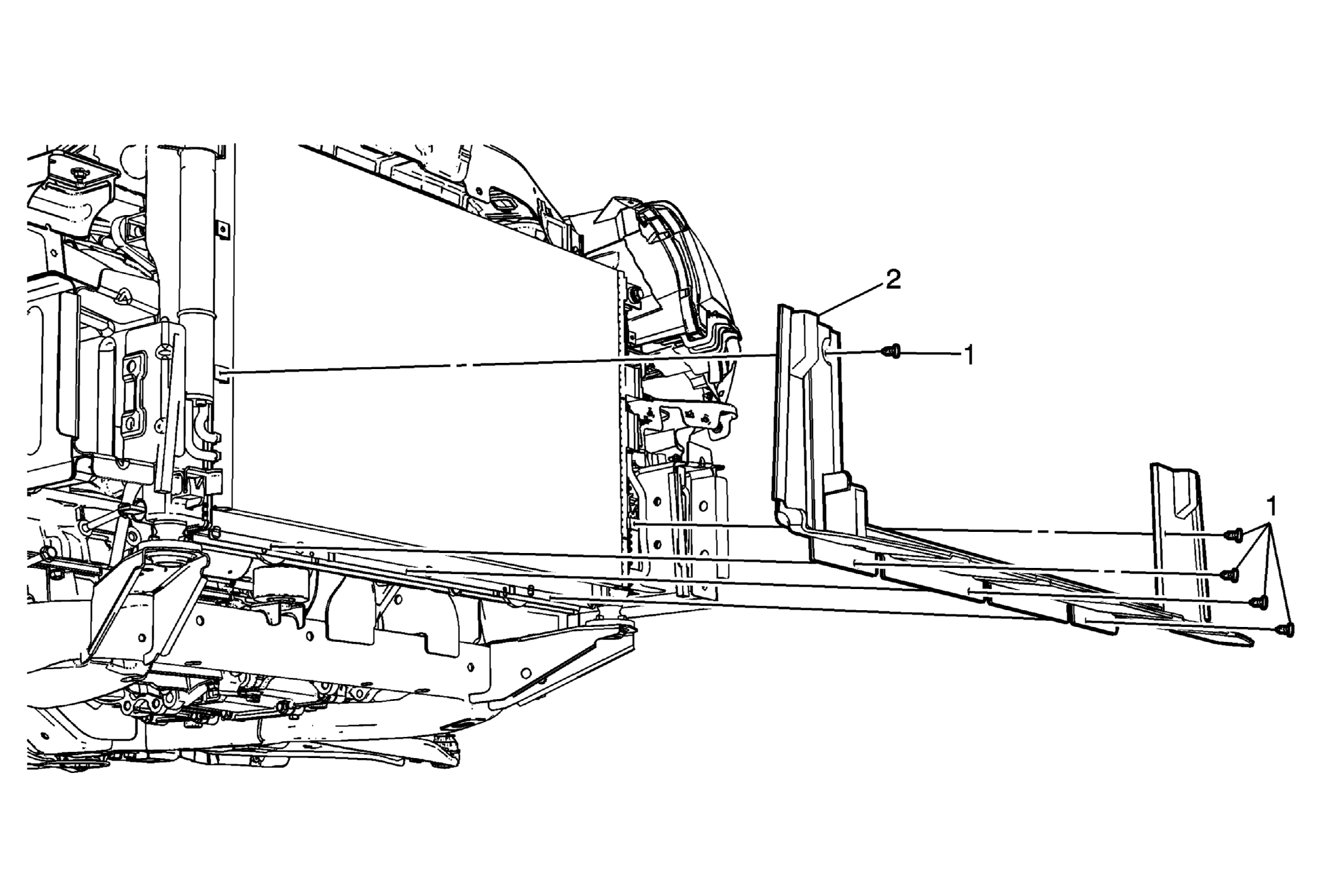

Fig 1: Radiator Air Lower Baffle And Deflector
GM2248348Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Equinox)Front Bumper Fascia Replacement (Terrain)
  2. Remove radiator air upper baffel and deflector. Refer to Radiator Air Upper Baffle and Deflector Replacement
1 Radiator Air Lower Baffel And Deflector Retainers (Qty 5)
2 Radiator Air Lower Baffel And Deflector
