Installation Procedure
WARNING: This page is about a different variant/trim than selected.
- Install the transmission range selector lever cable in the vehicle.
- Connect the transmission range selector lever cable terminal (2) to the shift lever pin.
- Install the transmission range selector cable to the transmission control base, then slide the transmission range selector lever cable retainer rearward (1) to lock the cable in place.

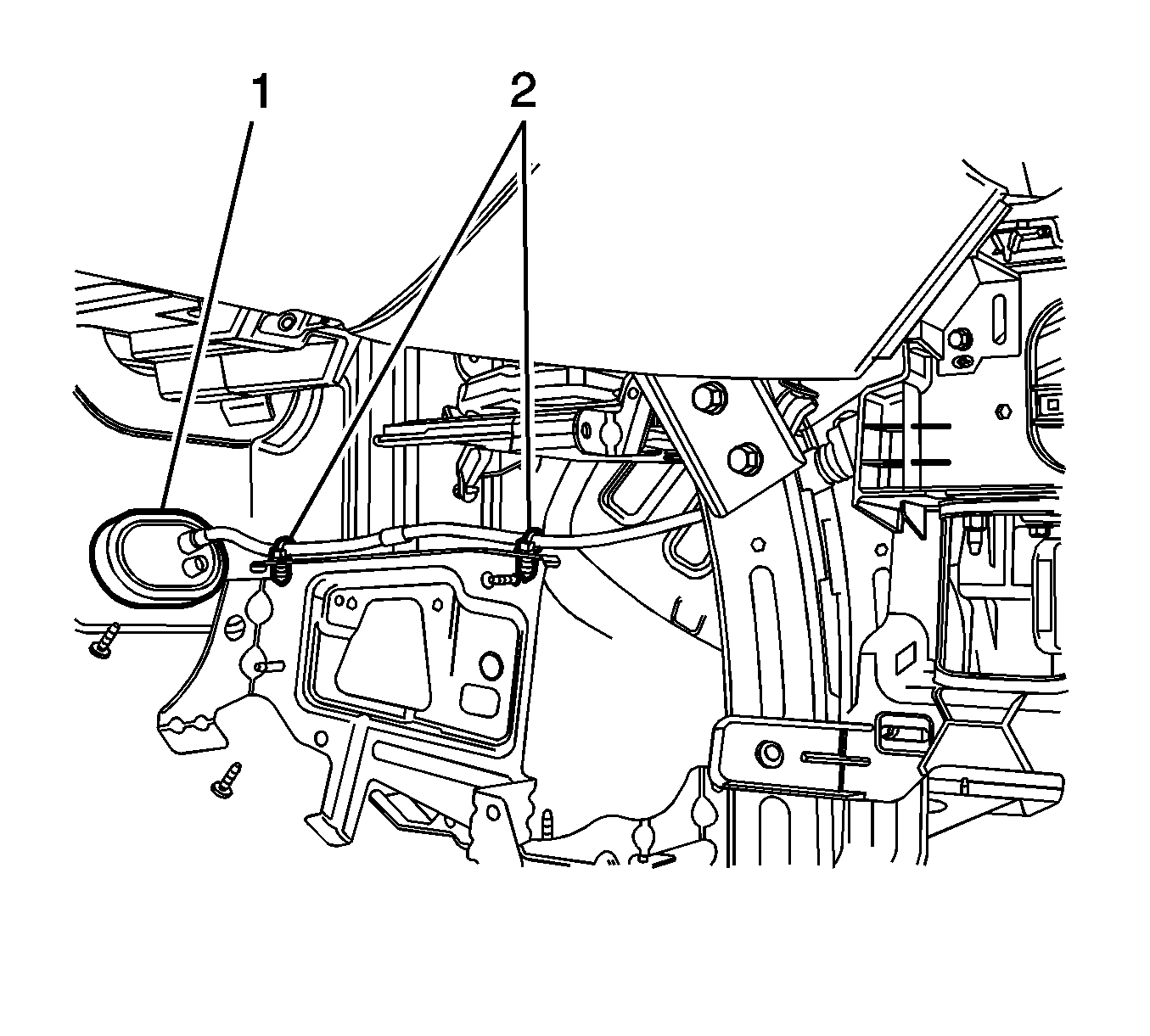

- Install the grommet (1) and cable assembly into the floor panel.
- Connect the transmission range selector lever cable retainers (2) to the support bracket.
- Install the front floor console extension. Refer to Front Floor Lower Console Side Finish Cover Replacement - Left Side (Equinox)Front Floor Lower Console Side Finish Cover Replacement - Left Side (Terrain) .
- Connect the transmission range selector lever cable terminal (1) to the transmission manual shift lever pin (6).
- Install the cable in the bracket, then slide the retainer (4) forward to lock the transmission range selector lever cable in the bracket.
- Adjust the cable. Refer to Range Selector Lever Cable Adjustment
WARNING:
After installing the transmission range selector shift cable, pull up and push down on ALL connections to verify that the connections are fully seated and properly engaged. Failure to perform this task can result in the vehicle not being able to shift into PARK causing potential vehicle damage and bodily injury.
