Range Selector Lever Cable Adjustment
WARNING: This page is about a different variant/trim than selected.
- Set the park brake and chock the wheels.
- Verify the transmission range select lever is in the park position.
- Verify the transmission manual shift lever is in the park position.
- Pull the retaining collar (1) forward, then release the range select cable adjuster clip (2).

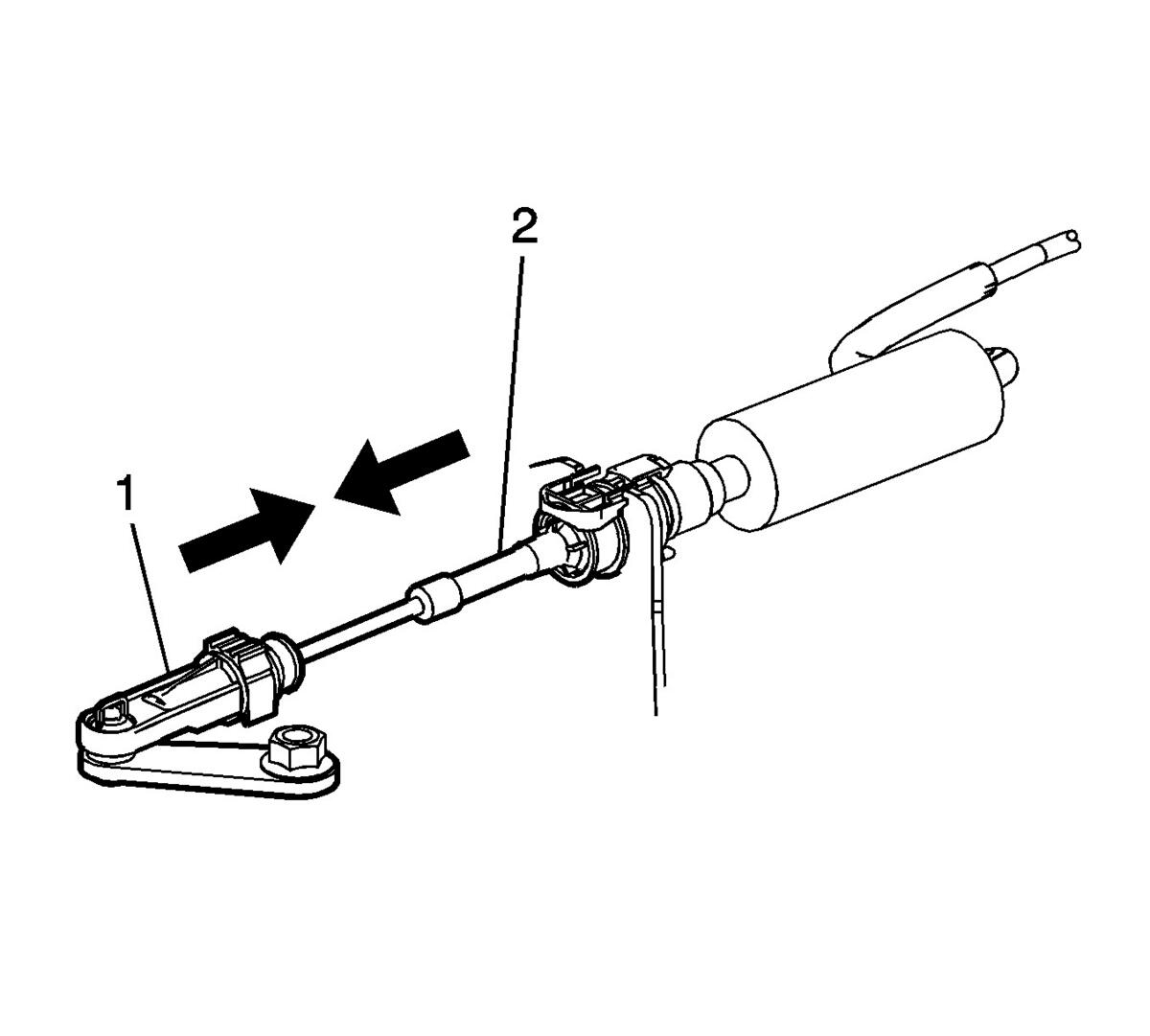

- Slide the two halves (1, 2) of the range select cable together until all free play is removed.
- Depress the adjuster clip (1) locking the adjuster clip completely, then release the retaining collar.
- Pull both halves of the range select cable in opposite directions to verify the cable adjuster is secured.
- Check the transmission range select lever in all gear selections for proper operation.
NOTE:
Adjust the automatic transmission range selector cable while the transmission and the gear selector are in the Park position only. Failure to do so may cause mis-adjustment.
WARNING:
After installing the transmission range selector shift cable, pull up and push down on ALL connections to verify that the connections are fully seated and properly engaged. Failure to perform this task can result in the vehicle not being able to shift into PARK causing potential vehicle damage and bodily injury.
