Air Cleaner Assembly Replacement

WARNING: This page is about a different variant/trim than selected.

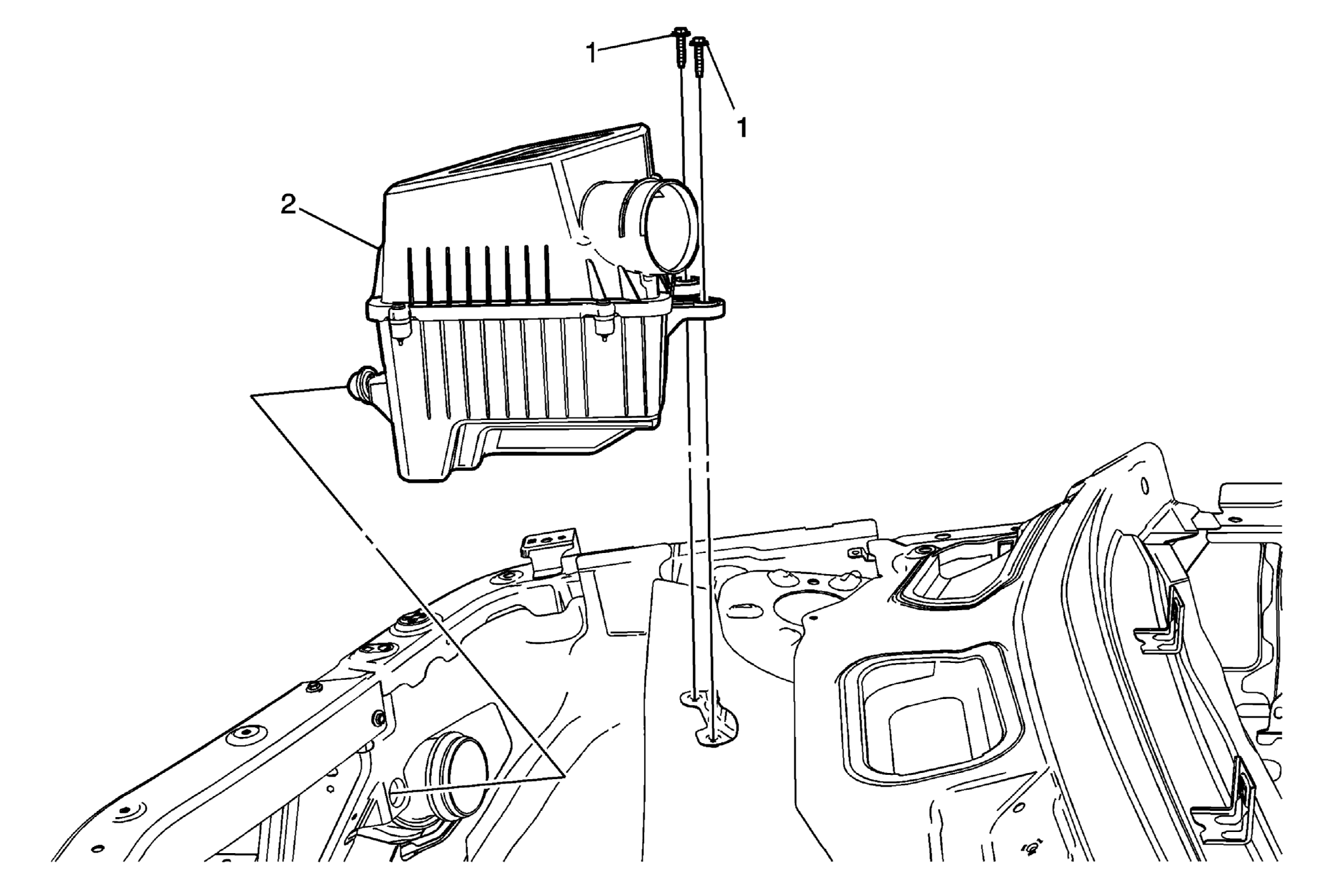

Fig 1: Air Cleaner Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the air cleaner outlet duct from the air cleaner assembly. Refer to Air Cleaner Outlet Duct Replacement . If required, remove the throttle inlet absolute pressure sensor. Refer to Throttle Inlet Absolute Pressure Sensor Replacement . If required, remove the mass airflow sensor. Refer to Mass Airflow Sensor with Intake Air Temperature Sensor Replacement .
1	Air Cleaner Assembly Fastener (Qty: 2) CAUTION: Refer to Fastener Caution Tighten 6 N.m (53 lb in)
2	Air Cleaner Assembly

Callout

Component Name

Preliminary Procedures

Disconnect the air cleaner outlet duct from the air cleaner assembly. Refer to Air Cleaner Outlet Duct Replacement .
If required, remove the throttle inlet absolute pressure sensor. Refer to Throttle Inlet Absolute Pressure Sensor Replacement .
If required, remove the mass airflow sensor. Refer to Mass Airflow Sensor with Intake Air Temperature Sensor Replacement .

Air Cleaner Assembly Fastener (Qty: 2)

CAUTION:

Tighten
6 N.m (53 lb in)

Air Cleaner Assembly
