Mass Airflow Sensor with Intake Air Temperature Sensor Replacement
WARNING: This page is about a different variant/trim than selected.

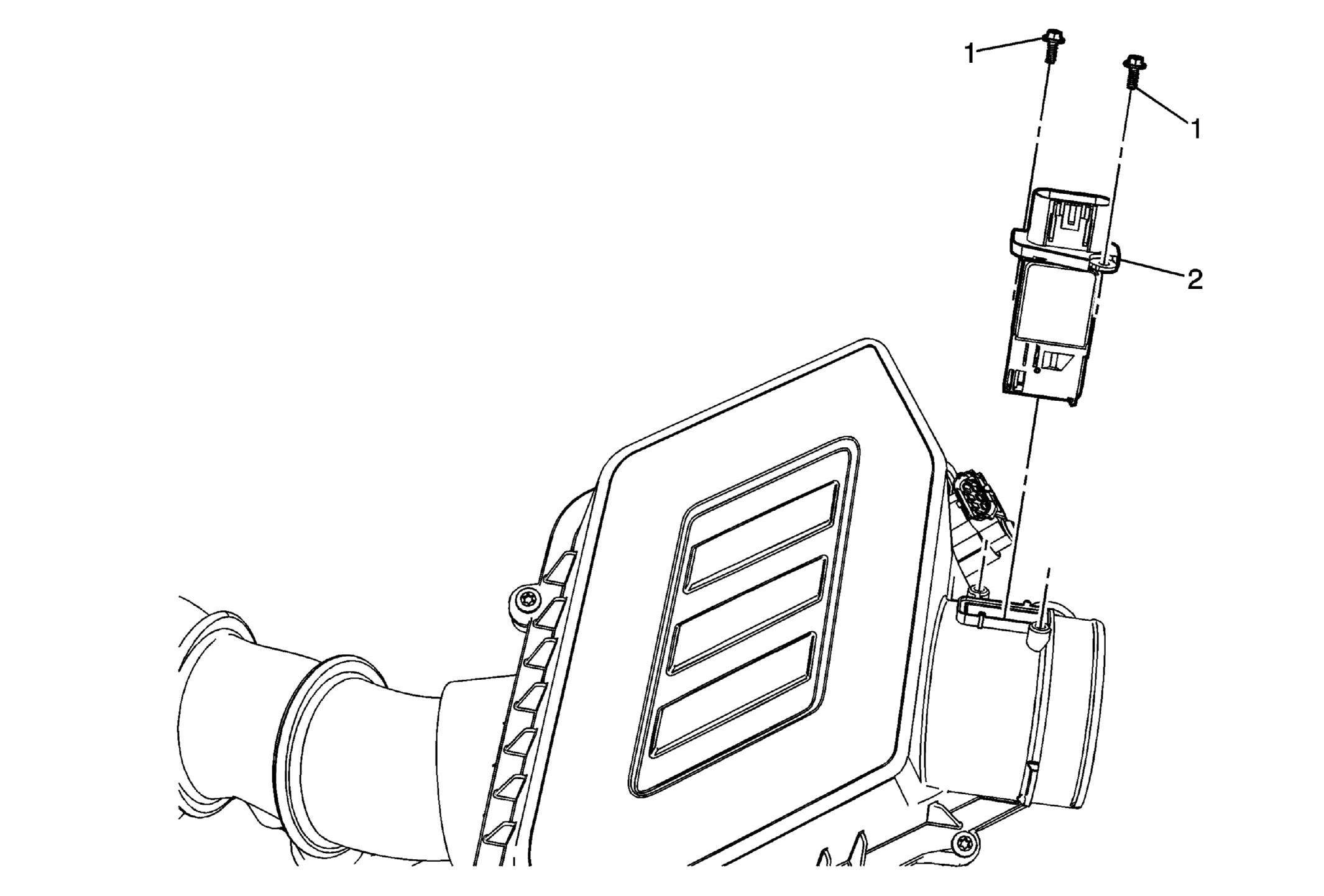

| Callout | Component Name |
|---|---|
| 1 | Mass Airflow Sensor Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 3 N.m (27 lb in) |
| 2 | Mass Airflow Sensor with Intake Air Temperature Sensor Procedure Disconnect the electrical connector. |
