Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Engine Support Fixture Components
    GM1853722Courtesy of GENERAL MOTORS COMPANY
  1. Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
  2. Remove the Front Bumper Fascia Support. Refer to Front Bumper Fascia Support Replacement
  3. Remove the air inlet screen. Refer to Air Inlet Screen Replacement (Equinox)Air Inlet Screen Replacement (Terrain)
  4. Install two M8 x 1.25 double ended studs to each strut tower with 30 mm engagement to the strut tower and 16 mm engagement to the J-28467-13  engine support fixture adapters.
  5. Install three J-28467-13  engine support fixture adapters (1) and two J 28467-5 strut tower adapters (2) to the top of the left and right strut tower.
  6. Install a 127 cm (50 in) engine support fixture cross bar J 28467-B  universal engine support fixture (3) transversely across the vehicle between both J 28467-5 strut tower adapters (2).
  7. Insert safety pins J-28467-10 (4) through the J 28467-5 strut tower adapters (2) and the cross bar (3) to prevent movement.

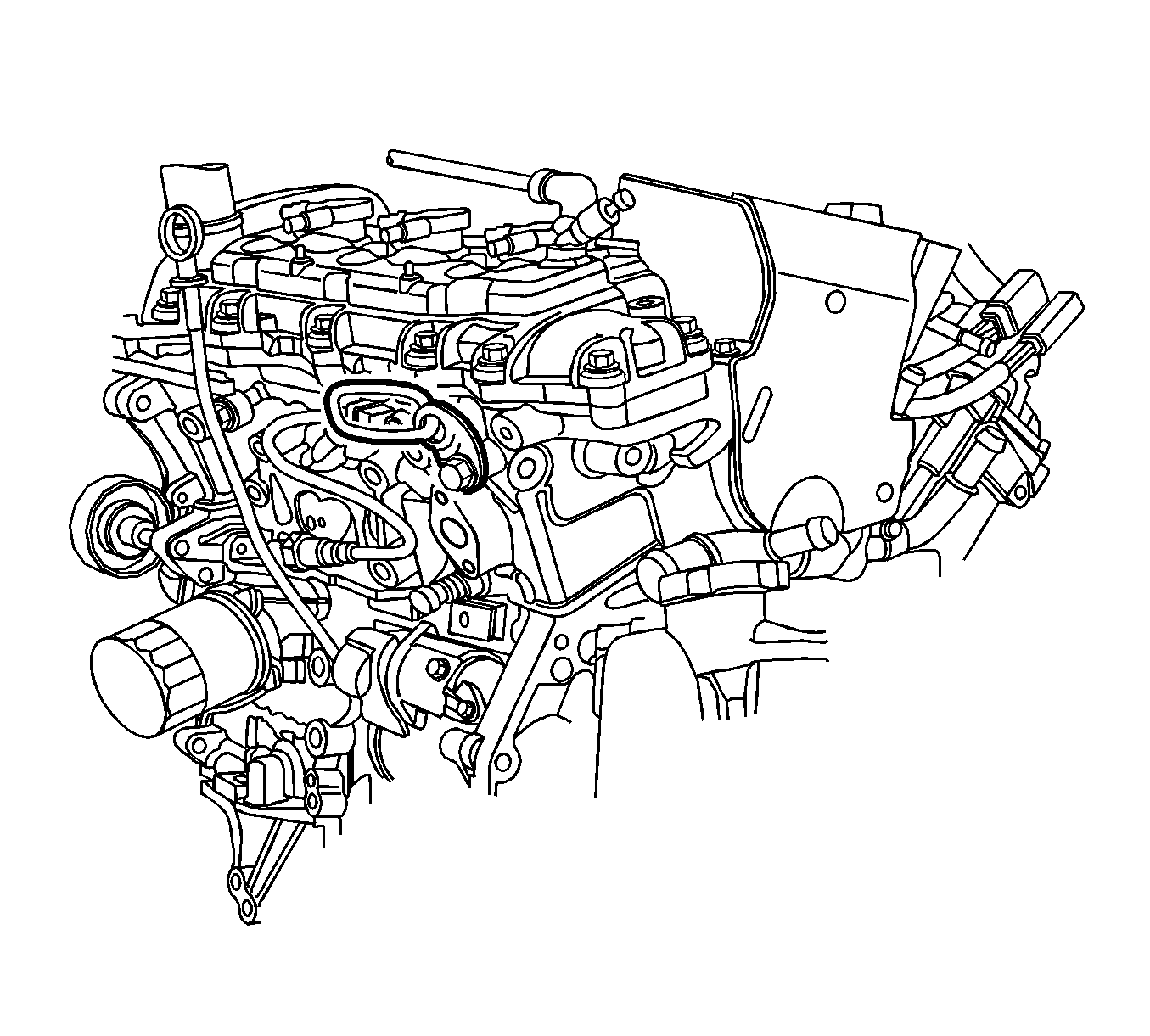

    8. Fig 2: Engine Support Bracket
    GM2289251Courtesy of GENERAL MOTORS COMPANY
  8. Install the engine support bracket J 42451-1  engine support adapter to the engine.

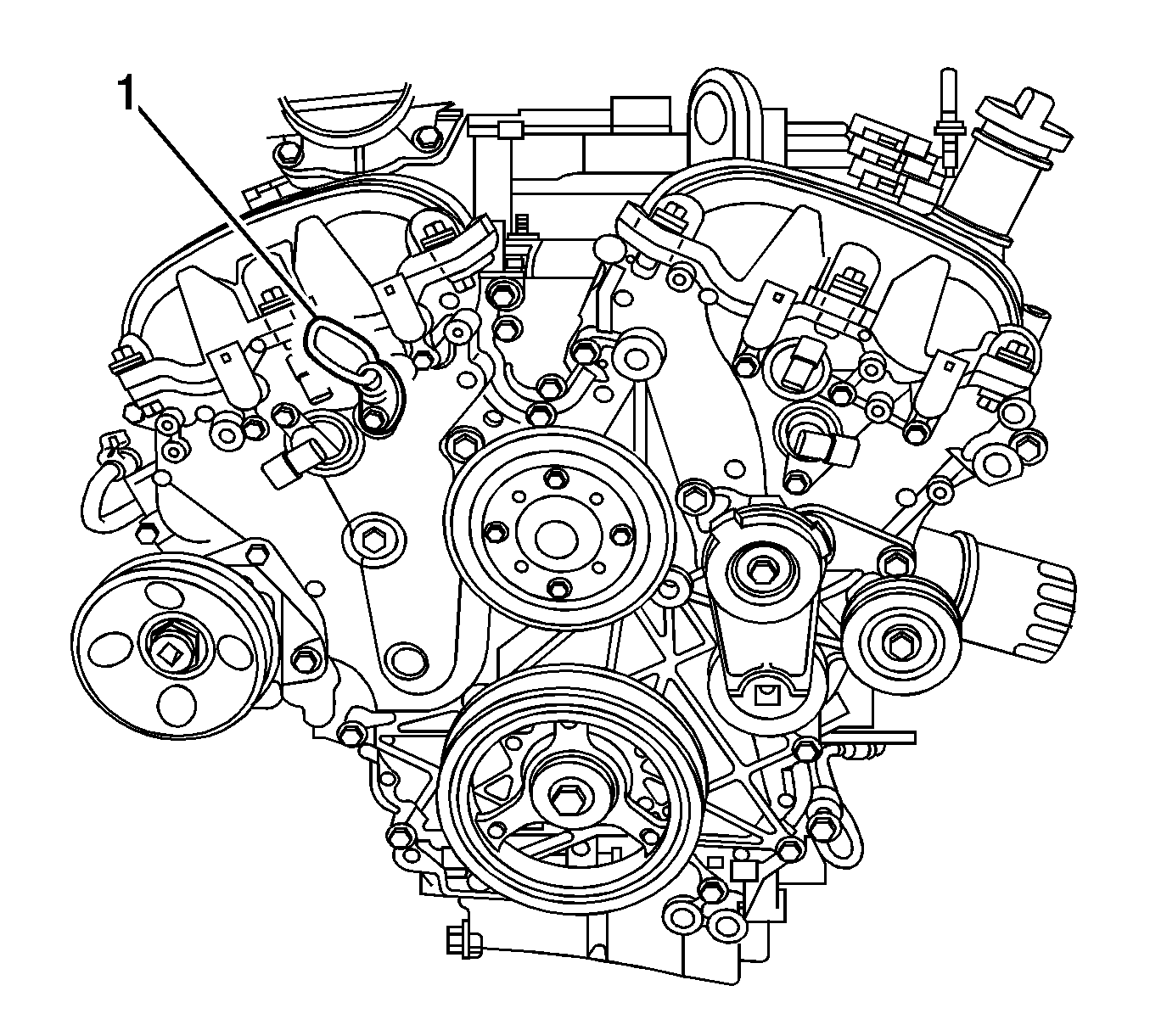

    9. Fig 3: Engine Support Bracket
    GM2289248Courtesy of GENERAL MOTORS COMPANY
  9. Install the engine support bracket J 42451-1  engine support adapter to the engine.
    10. Fig 4: Engine Support Fixture Components
    GM1853723Courtesy of GENERAL MOTORS COMPANY
  10. Position two 58 cm (23 in) engine support fixture cross bars (1) longitudinally with two J 36462-A  engine support adapter leg set leg assembly (2).
  11. Install two J 28467-1A clamp (3) to secure the longitudinal mounted cross bar to the transverse mounted cross bar.
    12. Fig 5: Lift Hook Assembly
    GM682139Courtesy of GENERAL MOTORS COMPANY
  12. Assemble the lift hook wing nut J 28467-34  lift hook wing nut and washer and the lift hook bracket J-28467-6A to the lift hook J 28467-7A  bolt hook.
    13. Fig 6: Identifying Lift Hook & Bracket Assembly & Longitudinal Mounted Cross Bar
    GM682301Courtesy of GENERAL MOTORS COMPANY
  13. Install the lift hook and bracket assembly (1) to the longitudinal mounted cross bar (2).
    14. Fig 7: Engine Support Bracket
    GM2289251Courtesy of GENERAL MOTORS COMPANY
  14. Position the J 28467-7A  bolt hook lift hook to the rear engine lift bracket J 42451-1  engine support adapter (2).
    15. Fig 8: Lift Hook Assembly
    GM682139Courtesy of GENERAL MOTORS COMPANY
  15. Assemble the lift hook wing nut J 28467-34  lift hook wing nut and washer and the lift hook bracket J-28467-6A to the lift hook J 28467-7A  bolt hook.
    16. Fig 9: Identifying Lift Hook & Bracket Assembly & Longitudinal Mounted Cross Bar
    GM682301Courtesy of GENERAL MOTORS COMPANY
  16. Install the lift hook and bracket assembly (1) to the longitudinal mounted cross bar (2).
    17. Fig 10: Engine Support Bracket
    GM2289248Courtesy of GENERAL MOTORS COMPANY
  17. Position the J 28467-7A  bolt hook (1) to the front engine lift bracket J 42451-1  engine support adapter (2).
    18. Fig 11: View Of Engine Support Fixture
    GM1853754Courtesy of GENERAL MOTORS COMPANY
  18. Evenly tighten both wing nuts J 28467-34  lift hook wing nut and washer (1) until the engine weight is supported by the engine support fixture and no longer carried by the engine mounts.
