Engine Mount Replacement - Right Side

WARNING: This page is about a different variant/trim than selected.

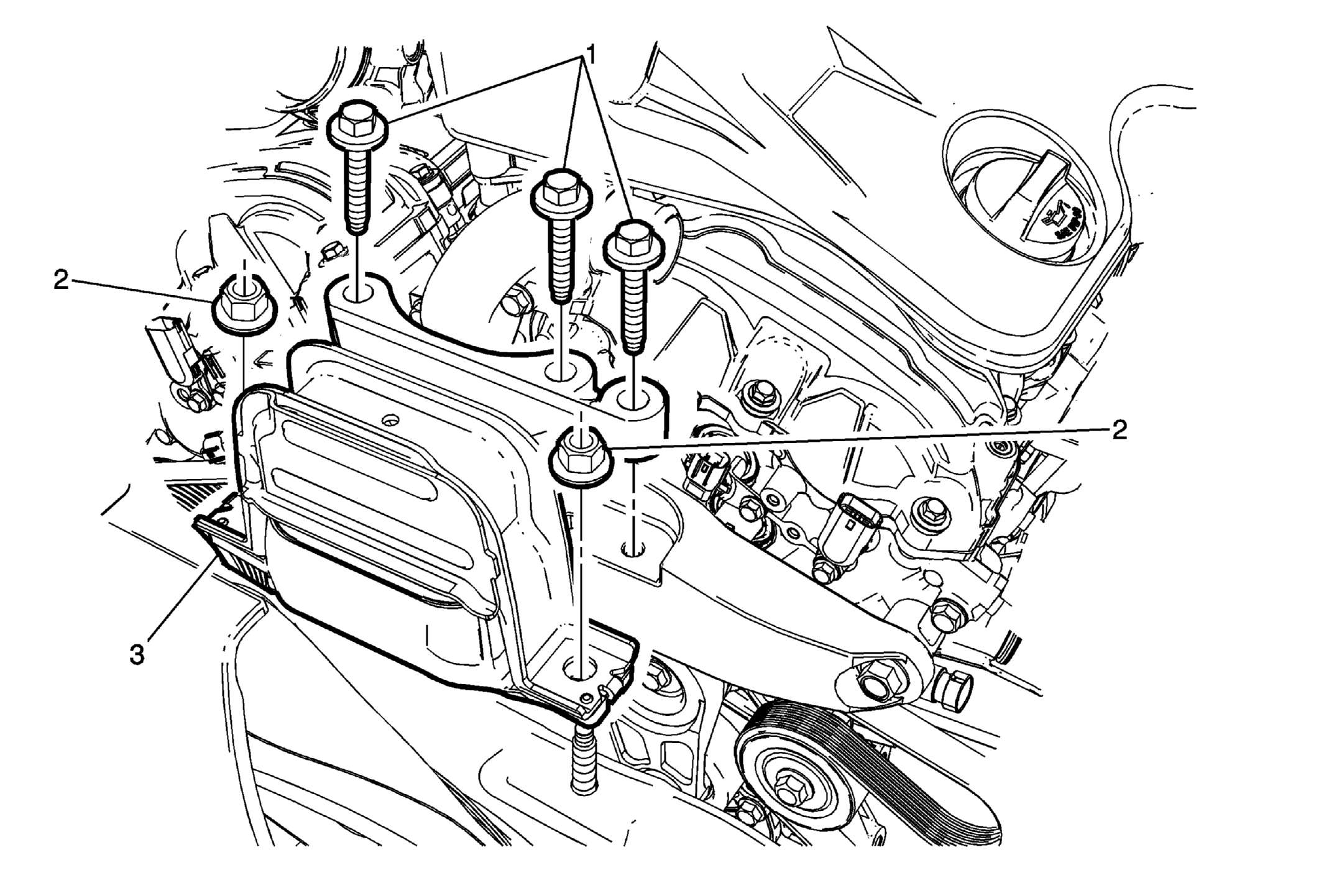

Fig 1: Engine Mount - Right Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement . Install engine support fixture. Refer to Engine Support Fixture . If equipped with LAU, reposition the power steering reservoir outlet hose. Refer to Power Steering Fluid Reservoir Outlet Hose Replacement . If equipped with LAU, remove the radiator inlet hose. Refer to Radiator Inlet Hose Replacement (LFX) . Prior to removing the mount, mark the mount location using spray paint or a marker for correct positioning during installation. If all powertrain mounts are replaced, perform "Powertrain Mount Balancing". Refer to the appropriate engine section.
1	Engine Mount Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 58 N.m (43 lb ft)
2	Engine Mount Fastener (Qty: 2) Tighten 94 N.m (69 lb ft)
3	Engine Mount Procedure Transfer components as necessary.
