Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the drive belt. Refer to Drive Belt Replacement .
  2. Remove the engine mount. Refer to Engine Mount Replacement - Right Side .
  3. Remove the starter. Refer to Starter Replacement (LFX) .
    4. Fig 1: Flywheel Holding Tool
    GM2663739Courtesy of GENERAL MOTORS COMPANY
  4. Install the EN-46106  tool (1) through the starter mounting hole.
    5. Fig 2: Crankshaft Balancer And Bolt
    GM2659165Courtesy of GENERAL MOTORS COMPANY
  5. Using engine support fixture, lower engine approximately two inches.
  6. Remove the crankshaft balancer bolt (1). Discard the bolt.

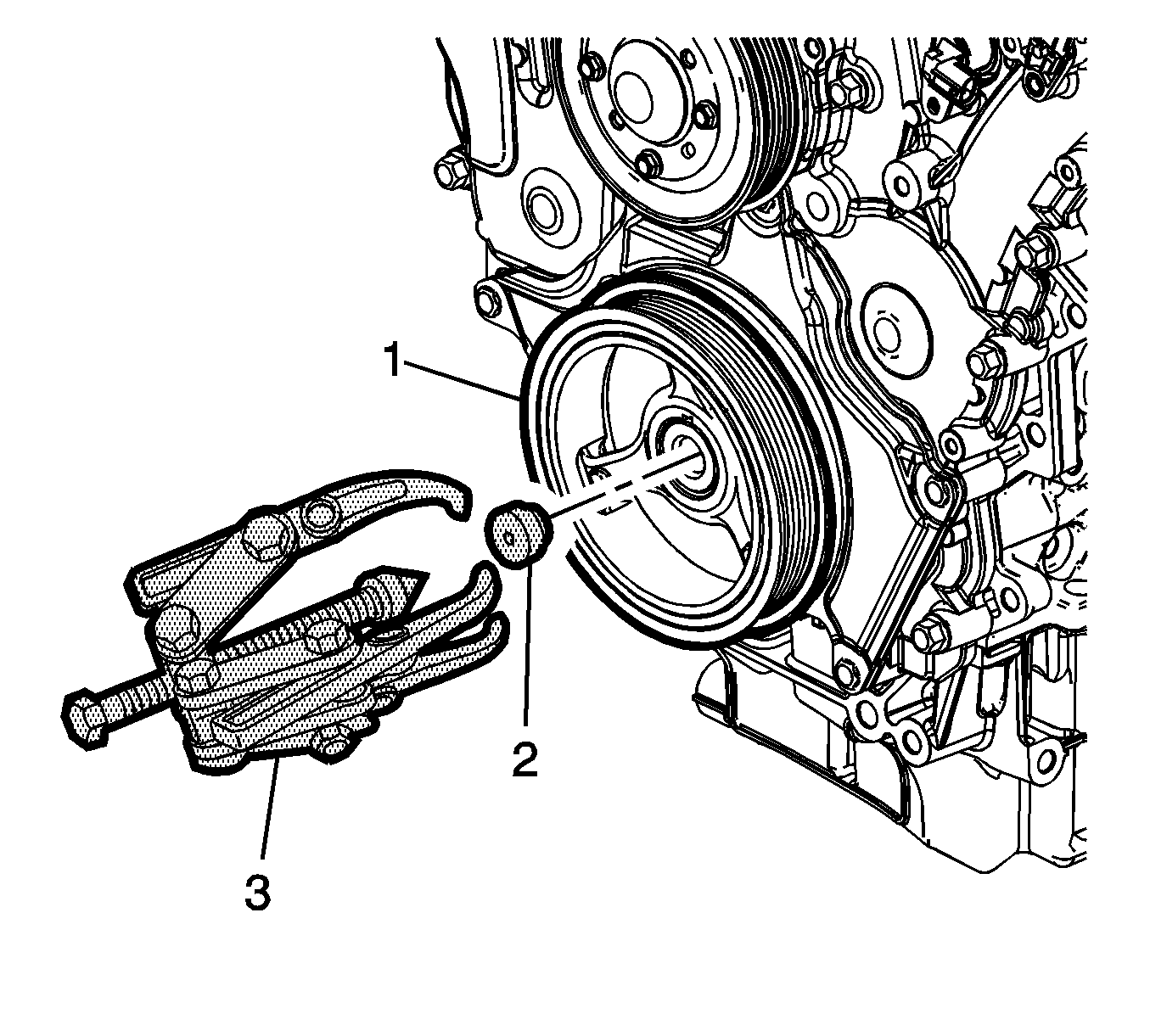

    7. Fig 3: Crankshaft Balancer & Removal Tools
    GM2659150Courtesy of GENERAL MOTORS COMPANY
  7. Install the EN-38416-2  button (2) in the nose of the crankshaft.
  8. Install the EN-41816  remover (3) in order to remove the crankshaft balancer (1).
  9. Tighten the center bolt of the EN-41816  remover in order to pull the crankshaft balancer off of the crankshaft.
  10. Remove the EN-41816  remover from the crankshaft balancer.
