Installation Procedure

WARNING: This page is about a different variant/trim than selected.

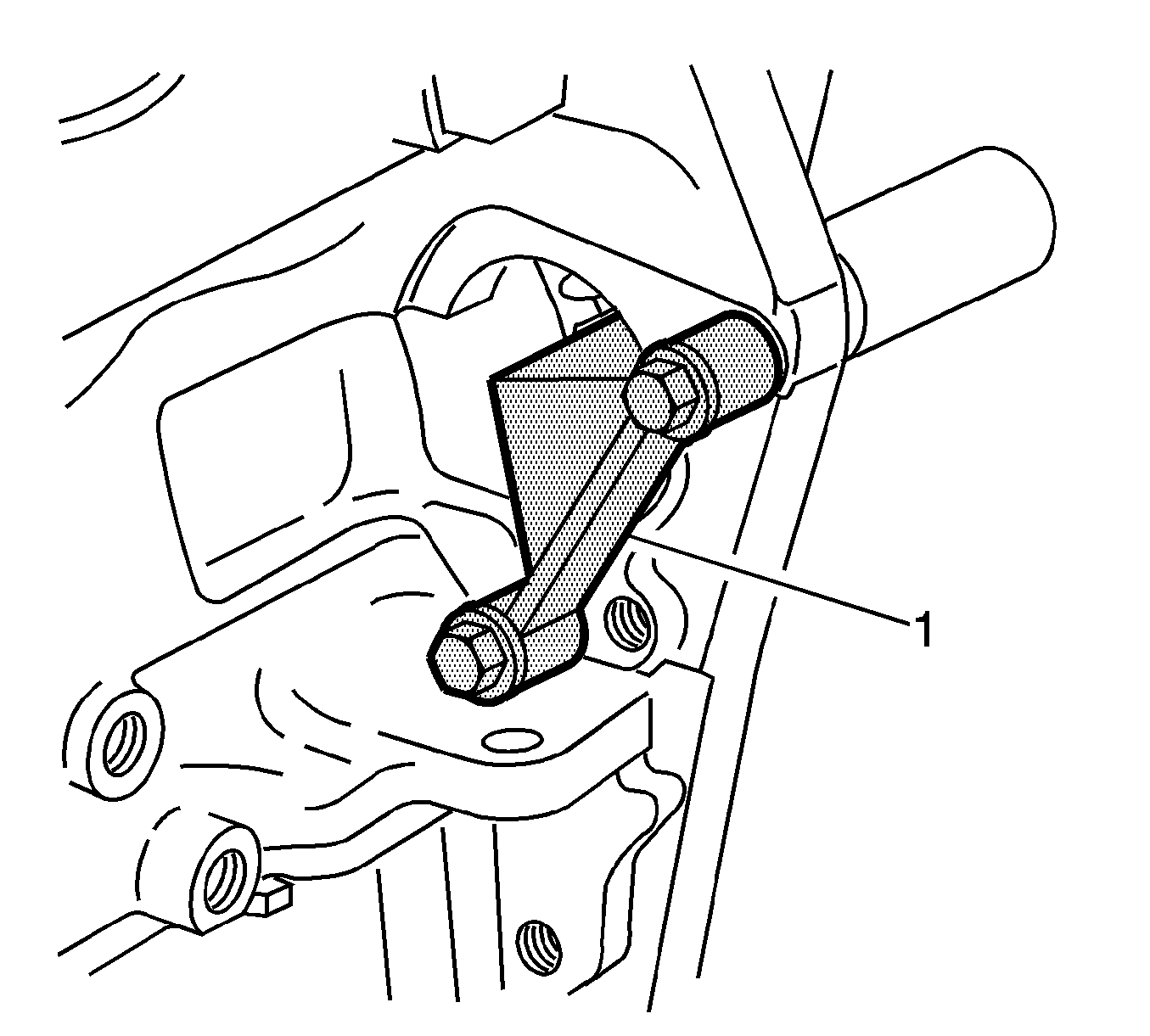

    Fig 1: Flywheel Holding Tool
    GM2663739Courtesy of GENERAL MOTORS COMPANY
  1. The EN-46106  tool (1) must be installed onto the flywheel.
  2. Use the EN-41998-B  installer, nut, bearing and washer to install the crankshaft balancer.
    3. Fig 2: Identifying Lubrication & Non-Lubrication Areas On Crankshaft Balancer
    GM1395952Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not lubricate the crankshaft front oil seal or crankshaft balancer sealing surfaces. The crankshaft balancer is installed into a dry seal.

  3. Apply lubricant to the inside of the crankshaft balancer hub bore.

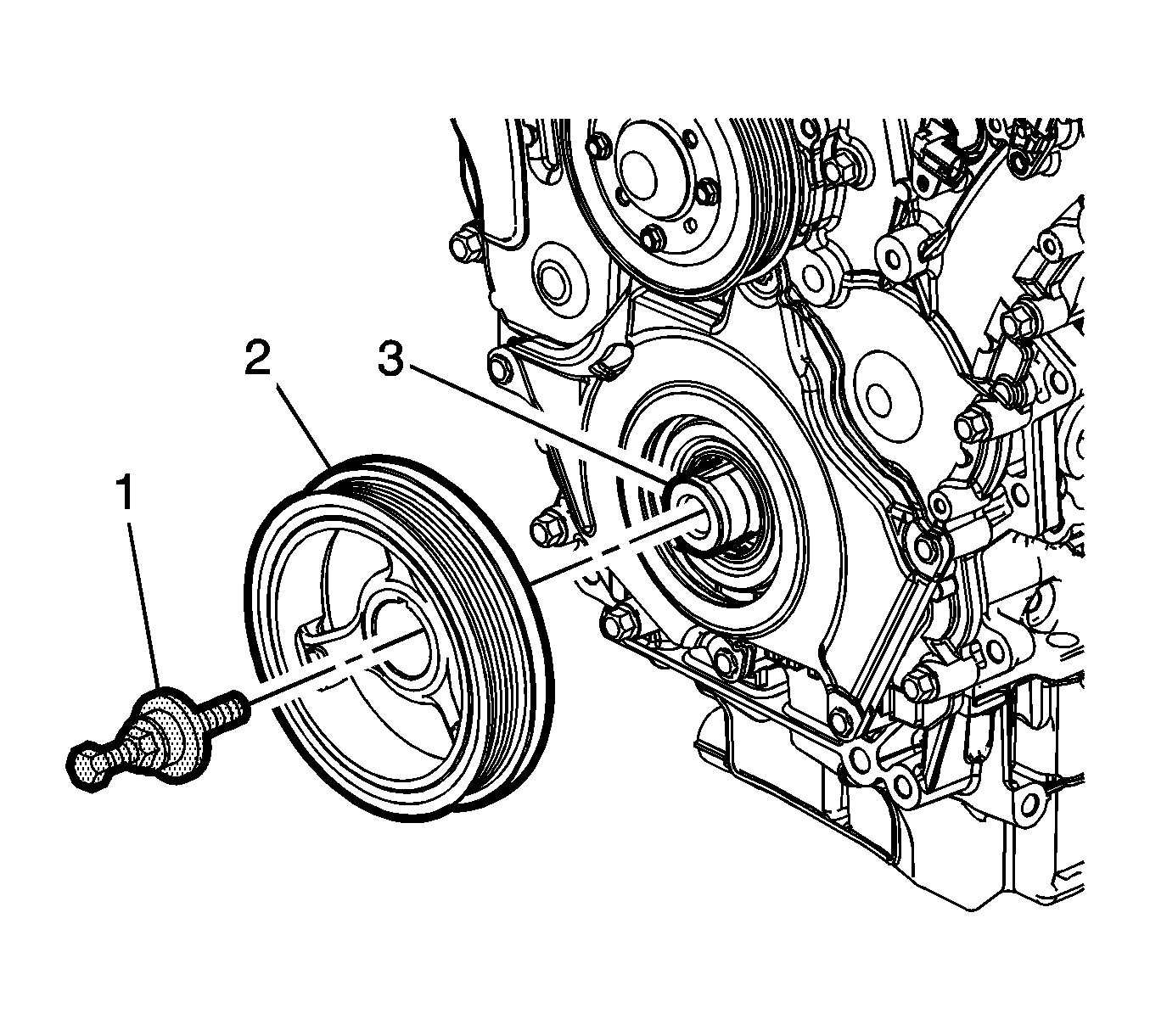

    4. Fig 3: Crankshaft, Balancer & Installer
    GM2659163Courtesy of GENERAL MOTORS COMPANY
  4. Place the crankshaft balancer (2) in position on the crankshaft (3).
  5. Thread the EN-41998-B  installer (1) in the crankshaft. Ensure you engage at least 10 threads of the EN-41998-B  installer before pressing the crankshaft balancer in place.
  6. Push the crankshaft balancer into position by tightening the nut on the EN-41998-B  installer until the large washer bottoms out on the crankshaft end.
  7. Remove the EN-41998-B  installer.

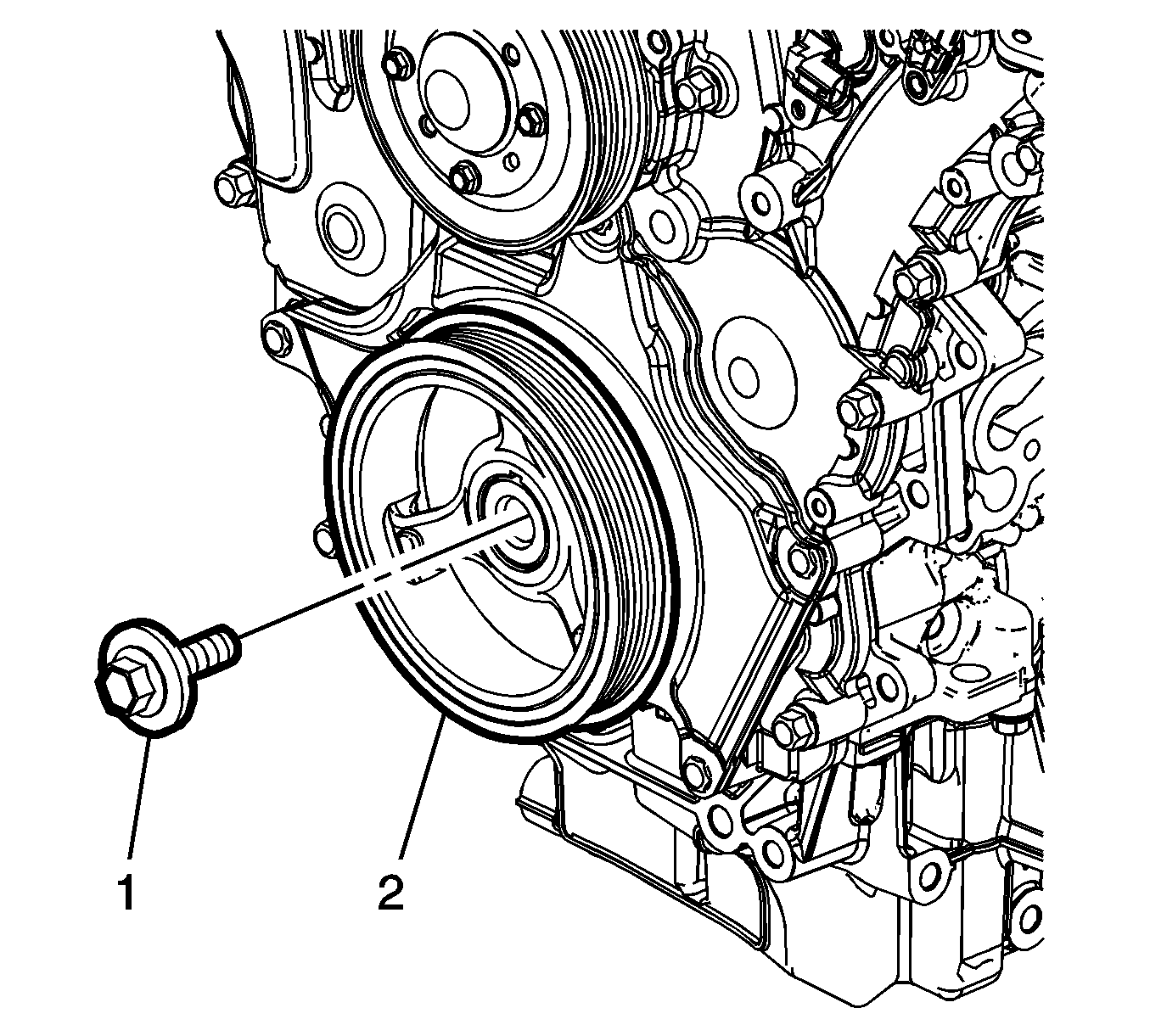

    8. Fig 4: Crankshaft Balancer And Bolt
    GM2659165Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Always install a new crankshaft balancer retaining bolt (1) and washer.

  8. Install the NEW crankshaft balancer bolt (1).
    9. CAUTION:

    Refer to Fastener Caution .

  9. Tighten the crankshaft balancer bolt to 100 N.m (74 lb ft) and an additional 150 degrees using the EN-45059  meter.
    10. Fig 5: Flywheel Holding Tool
    GM2663739Courtesy of GENERAL MOTORS COMPANY
  10. Remove the EN-46106  tool (1).
  11. Install the starter. Refer to Starter Replacement (LFX) .
  12. Install the drive belt. Refer to Drive Belt Replacement .
  13. Install the engine mount. Refer to Engine Mount Replacement - Right Side .
