Drive Belt Replacement

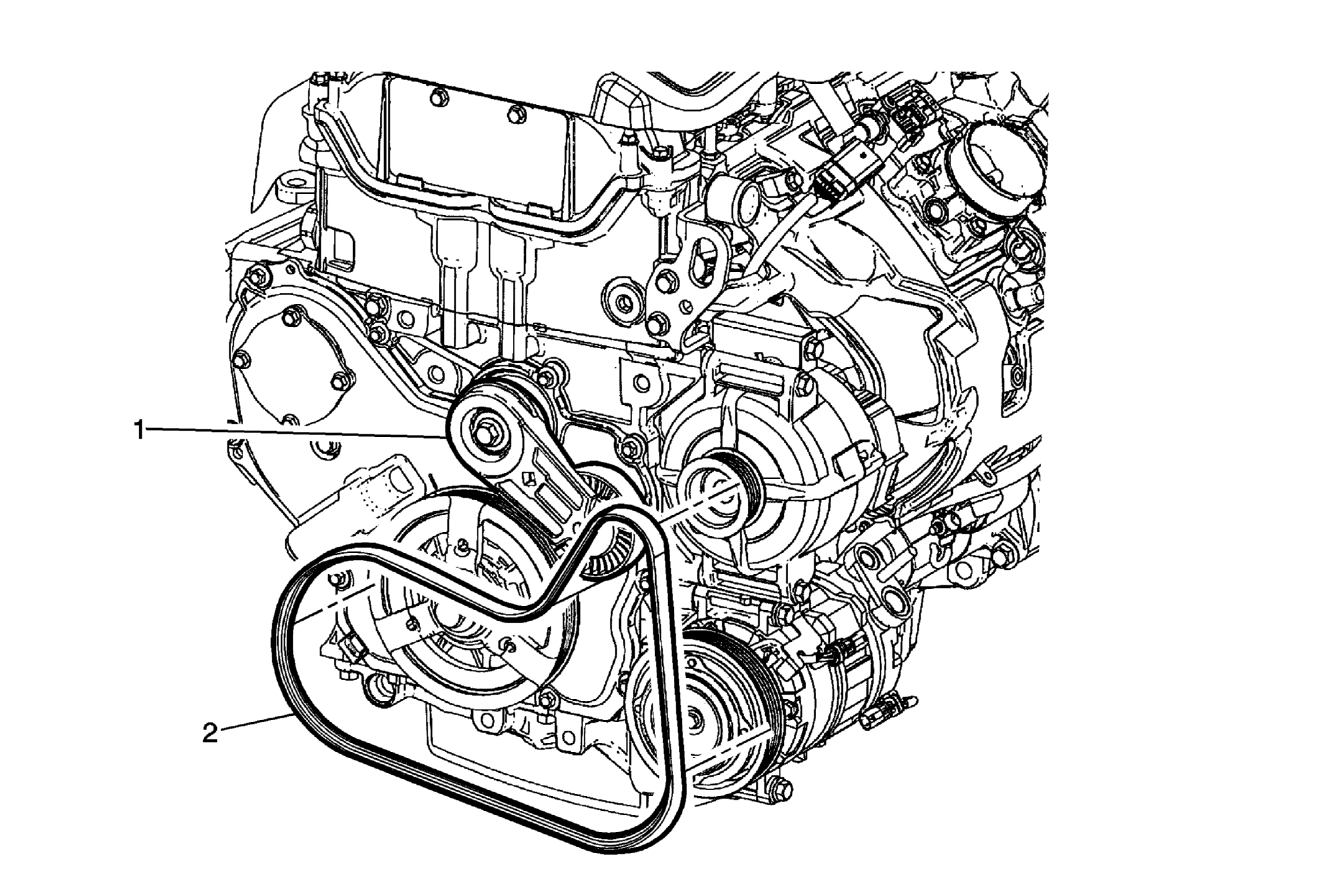

Fig 1: Drive Belt Routing
GM2603930Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the right engine splash shield. Refer to Engine Splash Shield Replacement - Right Side .
1 Drive Belt

Procedure

  1. Use the proper tool to rotate the drive belt tensioner.
  2. Remove the drive belt from the pulleys and tensioner.
2 Drive Belt Tensioner

Procedure

  1. Clean and inspect the drive belt surfaces of all the pulleys.
  2. Inspect the drive belt for correct alignment.
