Engine Splash Shield Replacement - Right Side

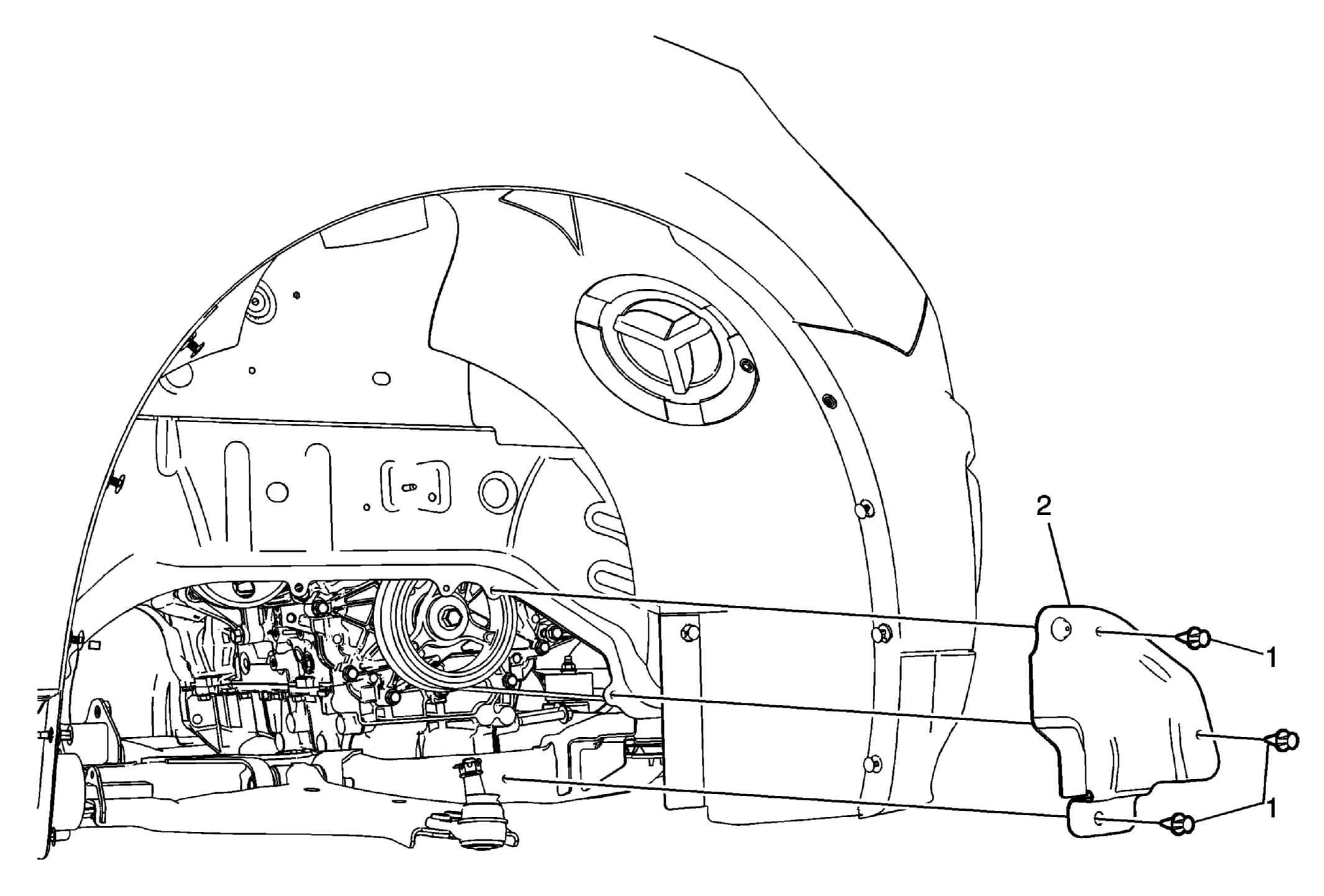

Fig 1: Identifying Engine Splash Shield Components - Right Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
1	Engine Splash Shield (Qty 3)
2	Engine Splash Shield
