Exhaust Flexible Pipe Replacement (LFX)

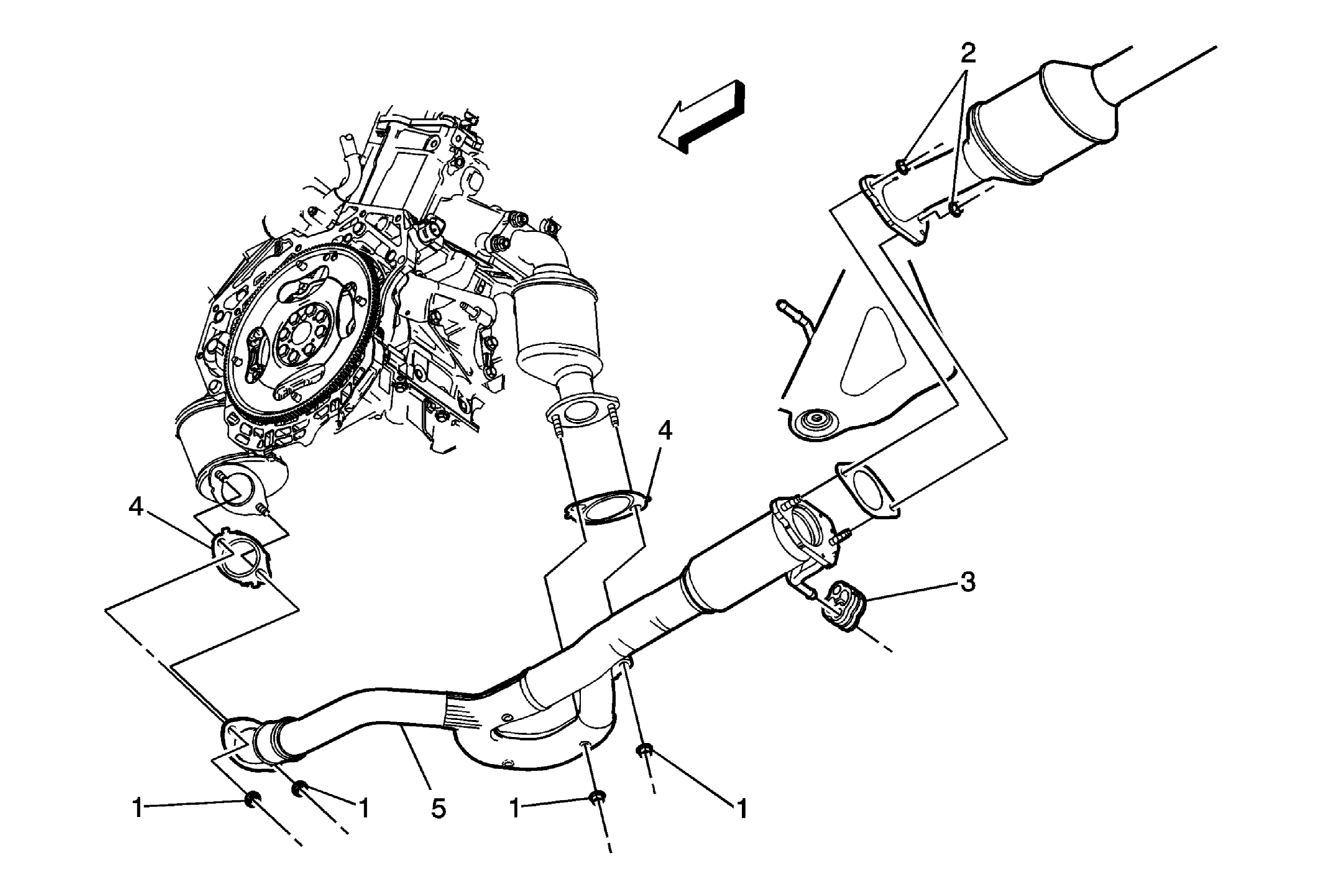

Fig 1: Exhaust Flexible Pipe (LFW)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Hot Exhaust System Warning . Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front lower control arm bracket brace. Refer to Front Lower Control Arm Bracket Brace Replacement . Disconnect the heated oxygen sensor and transfer if necessary. Refer to Heated Oxygen Sensor Replacement - Bank 2 Sensor 2 .
1	Nut (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 52 N.m (38 lb ft)
2	Nut (Qty: 2) Tighten 50 N.m (37 lb ft)
3	Exhaust Muffler Insulator
4	Gasket NOTE: Replace with NEW gaskets.
5	Exhaust Flexible Pipe
