Front Lower Control Arm Bracket Brace Replacement

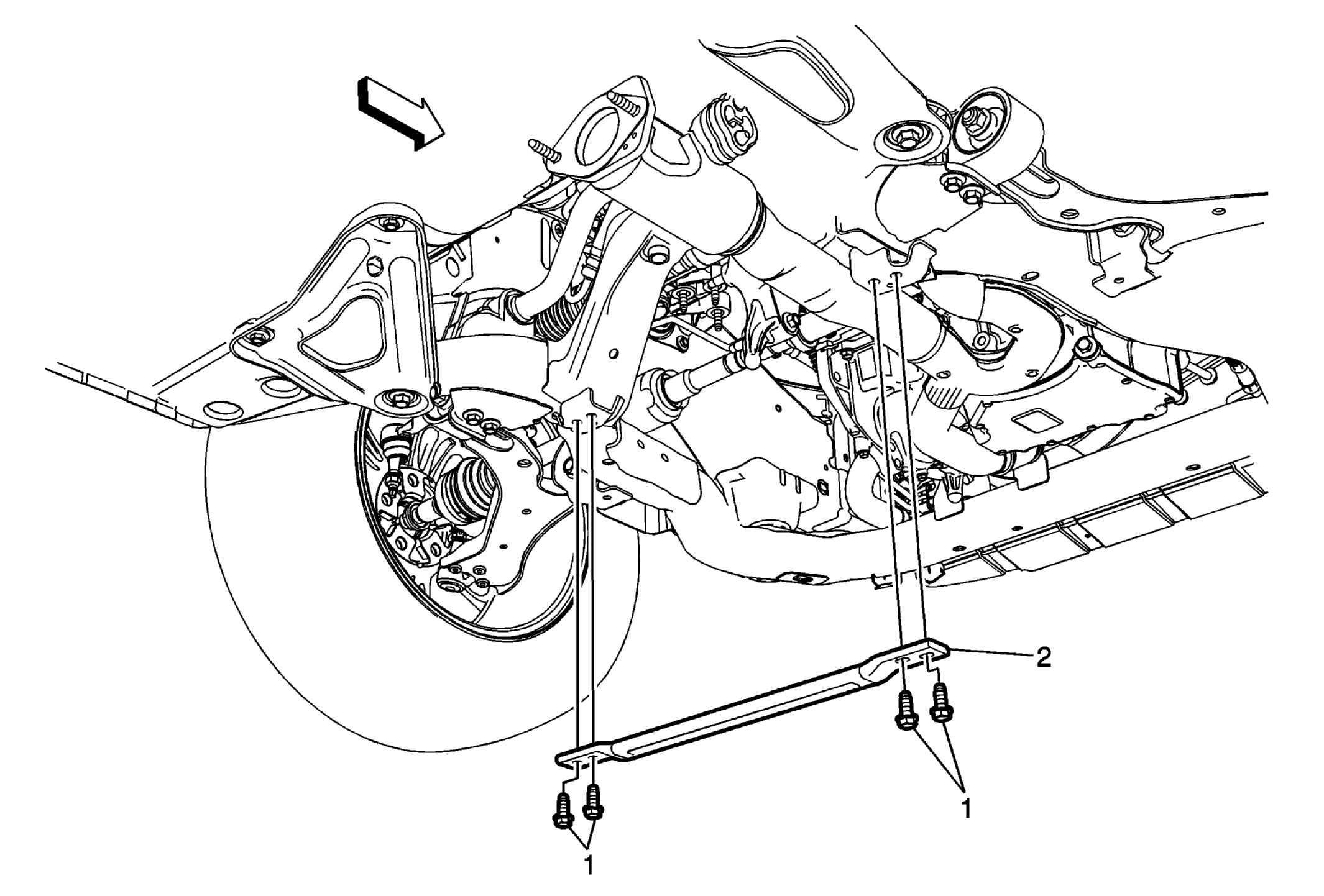

Fig 1: Identifying Front Lower Control Arm Bracket Brace Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Exhaust Service Warning . Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
1	Front Lower Control Arm Bracket Brace Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  30 N.m (22 lb ft).
2	Front Lower Control Arm Bracket Brace
