Water Outlet Replacement (LFX)

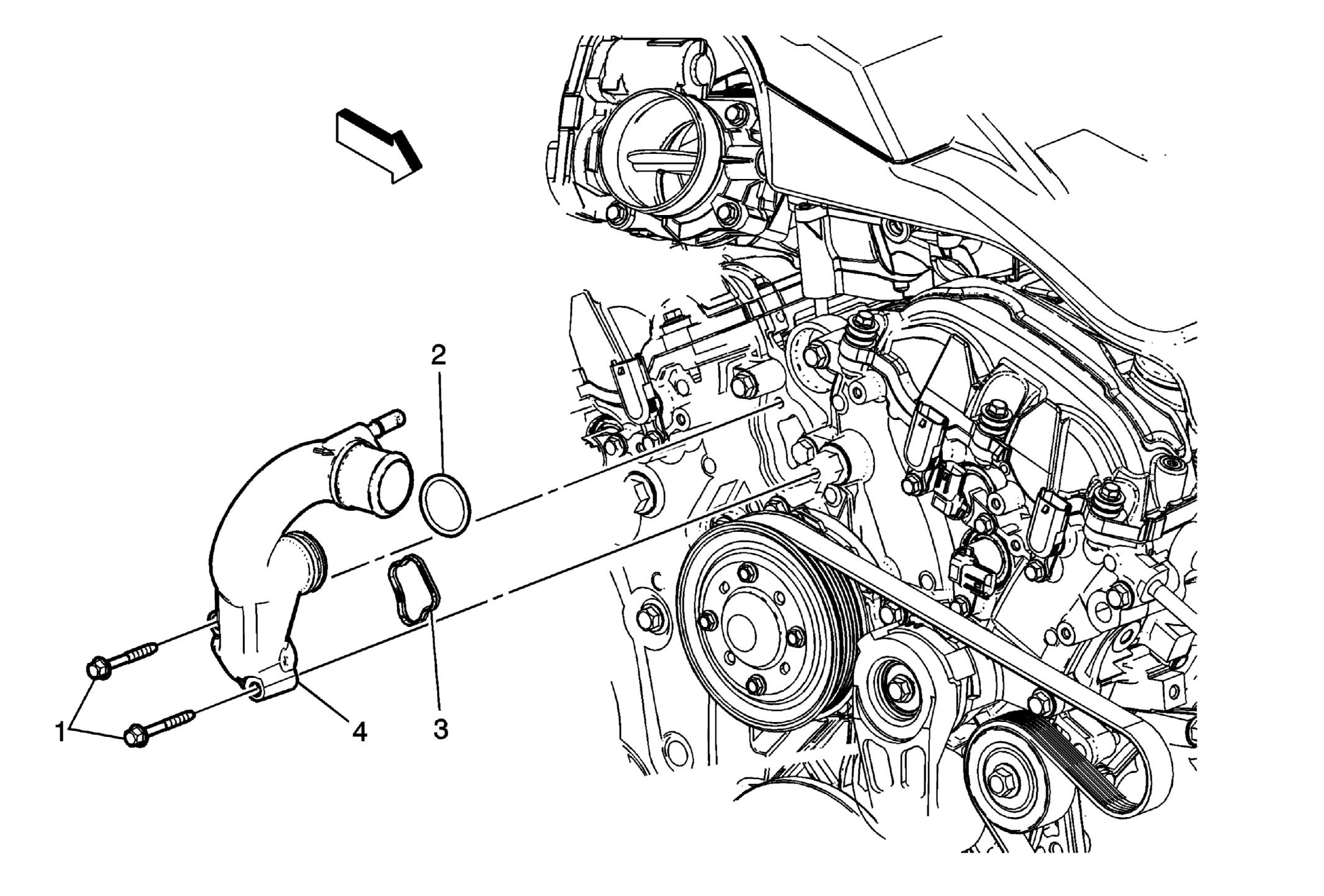

Fig 1: Water Outlet (LFX)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Drain the cooling system. Refer to Cooling System Draining and Filling (LFX) . Remove the right engine mount bracket. Refer to Engine Mount Bracket Replacement - Right Side . Remove the air cleaner. Refer to Air Cleaner Assembly Replacement .
1	Water Outlet Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Seal
3	Gasket
4	Water Outlet NOTE: Clean the mating surfaces, replace the seal and gasket.
