Front Bumper Fascia Replacement (Terrain)

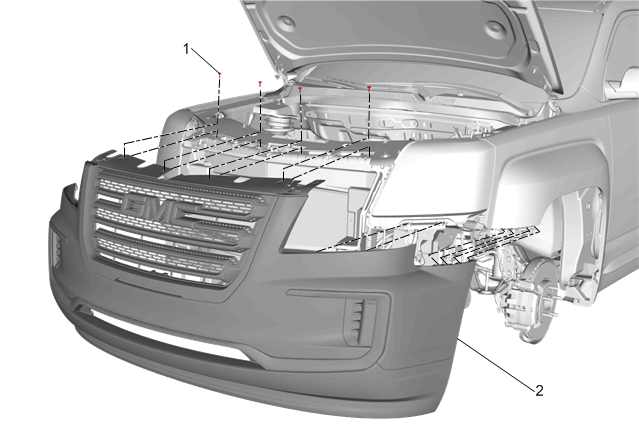

Fig 1: Front Bumper Fascia
GM4109339Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Front Bumper Fascia Opening Cover Replacement (Terrain)
  2. Front Wheelhouse Liner Replacement (Terrain)
1 Front Bumper Fascia Center Support Bolt (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Front Bumper Fascia

Procedure

  1. Carefully push a small nylon wedge between the fascia and the front fascia guide. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia from the front fascia guide.
  2. Disconnect all electrical connectors.
  3. Transfer components as necessary.
