Engine Coolant Fan Replacement (LFX)

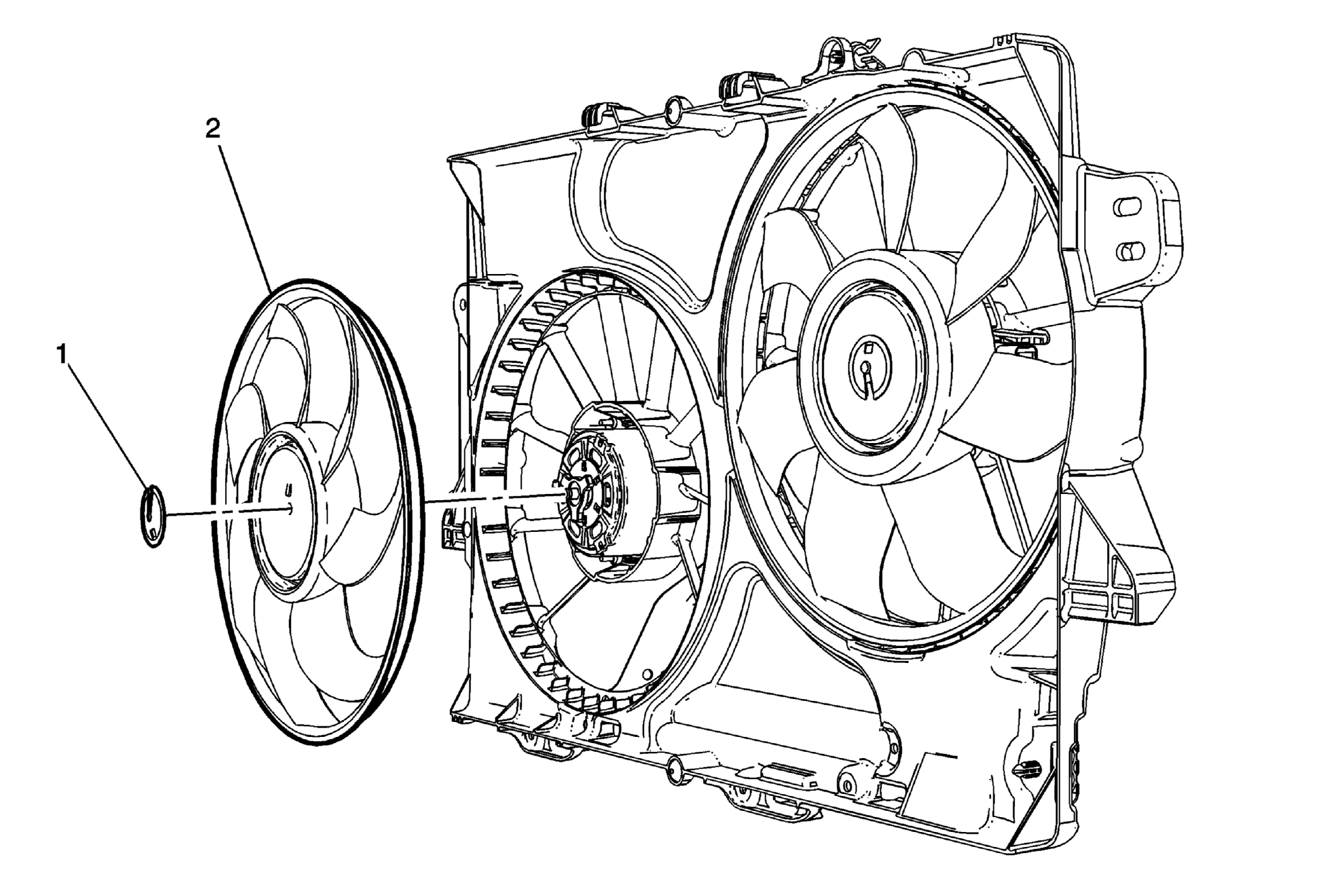

Fig 1: Engine Coolant Fan
GM2882168Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove the cooling fan shroud. Refer to Cooling Fan and Shroud Replacement (LFX) .
1 Cooling Fan Retainer
2 Cooling Fan
