Cooling Fan and Shroud Replacement (LFX)

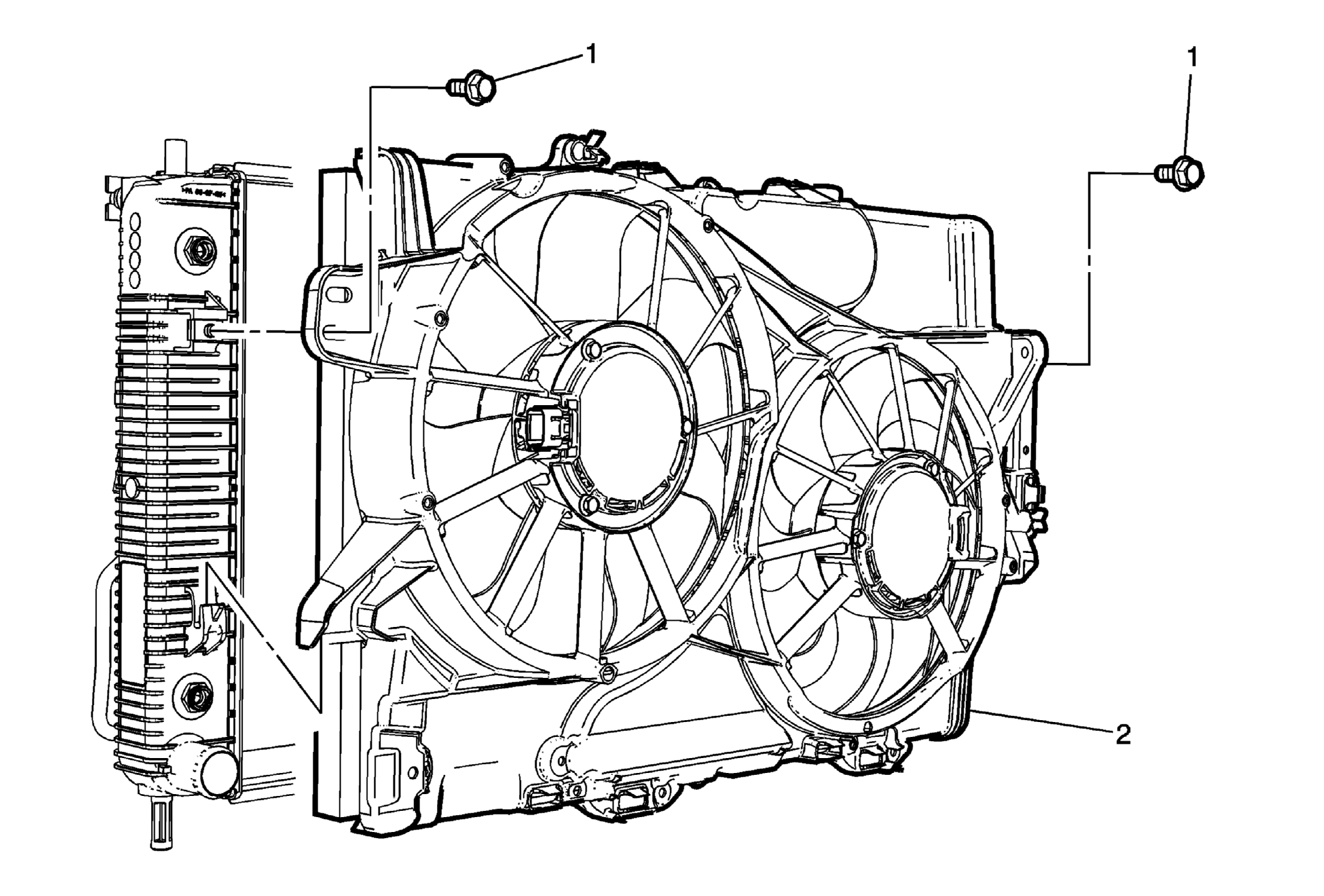

Fig 1: Cooling Fan and Shroud

GM2882187

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Remove the front bumper fascia support. Refer to Front Bumper Fascia Support Replacement .
Reposition radiator forward. Refer to Radiator Replacement .
Unclip the transmission cooler lines from the engine coolant fan shroud.
Unclip air conditioning lines from the engine coolant fan shroud.
Disconnect the engine coolant fan motor electrical connector.
Disconnect engine coolant fan resistor electrical connector.

1

Engine Coolant Fan Shroud Bolts (Qty 2)

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

2

Engine Coolant Fan Shroud

Procedure

Disconnect cooling fan motor wiring harness.
Disconnect cooling fan resistor wiring harness.
