Engine Coolant Fan Replacement (LEA)

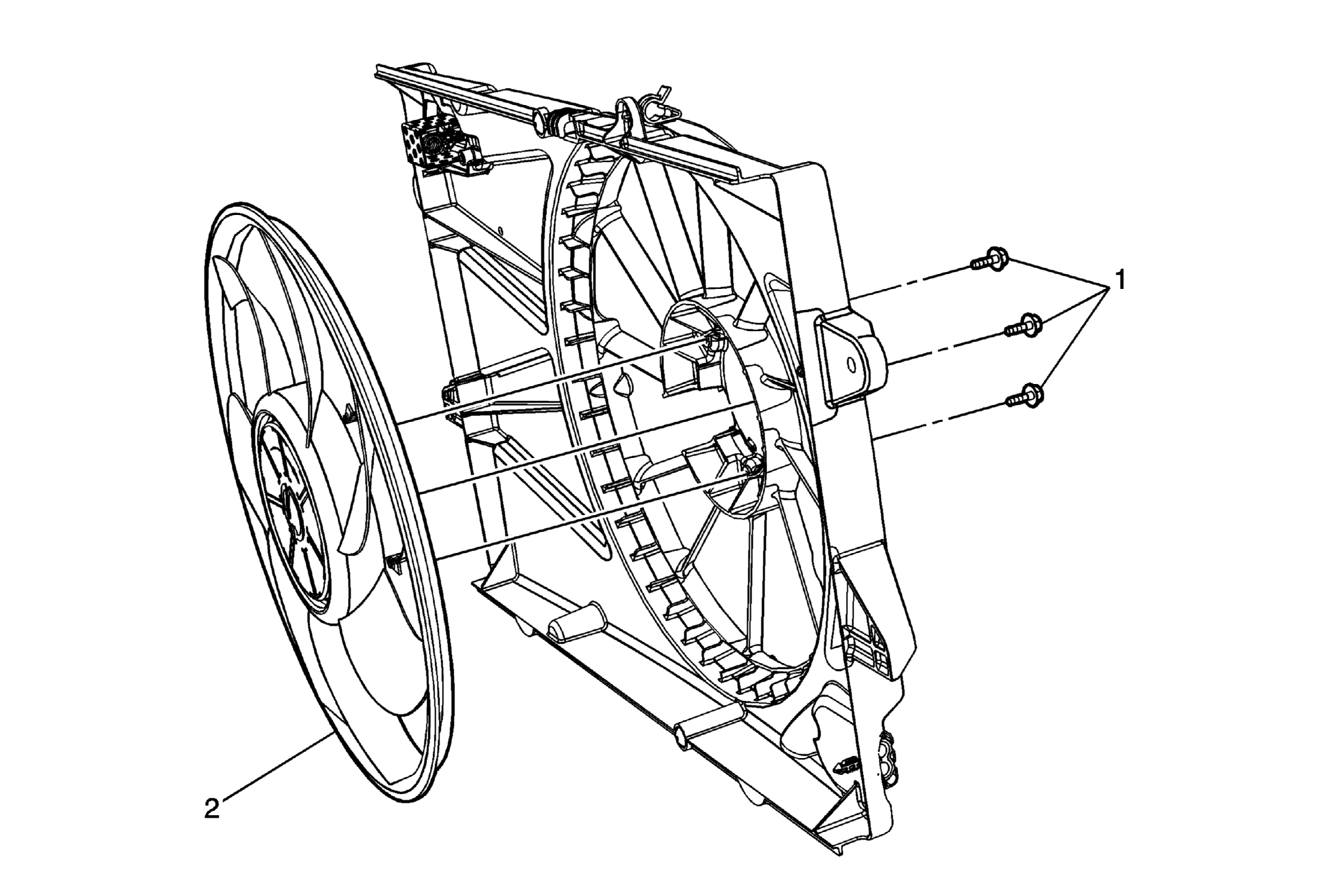

Fig 1: Engine Coolant Fan (LEA)
GM2232731Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove the engine coolant fan shroud. Refer to Engine Coolant Fan Shroud Replacement (LEA)
1 Cooling Fan Retainer (Qty 3)
CAUTION:

Refer to Fastener Caution .
2 Cooling Fan
